Sintering Techniques: Metal Sintering and Furnace Types

Sintering is a transformative process widely used in industries like powder metallurgy, ceramics, and additive manufacturing. By applying heat or pressure, this technique compacts powdered materials into solid, durable components without melting them completely. From creating high-performance metal parts to advanced ceramic applications, sintering plays a pivotal role in modern manufacturing. This blog explores the fundamentals of sintering, its methods, applications, and the latest advancements shaping its future.

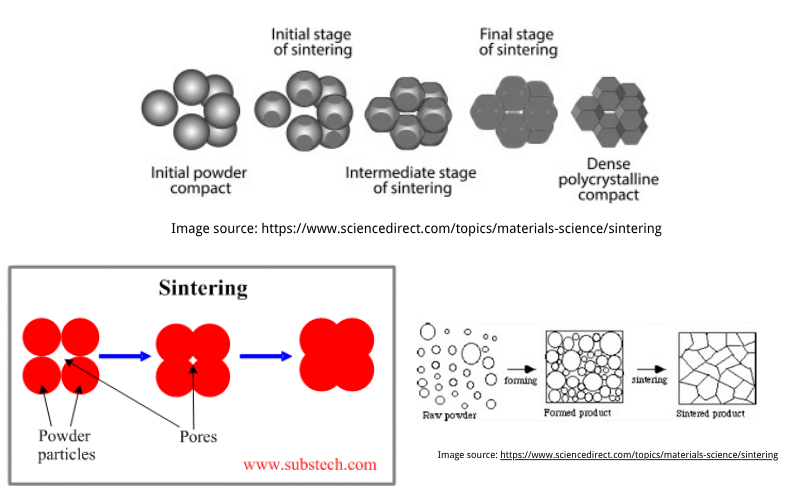

What is Sintering?

Sintering is a critical thermal process in materials science and engineering, particularly in powder metallurgy, that transforms powdered materials into cohesive solid structures. By applying heat and sometimes pressure, the process compacts and bonds particles without melting the base material to the point of liquefaction. Sintering typically involves three main stages: initial particle bonding through atomic diffusion, densification to reduce porosity and increase strength, and grain growth to enhance mechanical properties. Conducted below the melting point of the primary material, sintering ensures the shape and dimensions of the component remain intact.

This versatile technique is widely used to create components with high strength, precision, and durability across industries such as automotive, aerospace, and electronics. It works with a broad range of materials, including metals, ceramics, and composites, making it ideal for manufacturing complex shapes and components that are challenging or costly to produce using traditional methods. Additionally, sintering allows for the incorporation of additives and alloying elements, enabling manufacturers to customize material properties to meet specific application requirements.

Importance of Sintering in Powder Metallurgy

In powder metallurgy, sintering plays a pivotal role in transforming metal powders into high-performance components. The process not only enhances the mechanical properties of the material but also ensures dimensional accuracy and surface finish. One of the key advantages of sintering in powder metallurgy is its ability to produce near-net-shape components, minimizing the need for secondary machining operations. This results in significant cost savings and reduced material waste.

Moreover, sintering enables the production of parts with unique properties, such as high porosity for filtration applications or enhanced wear resistance for tools and machinery. The process also allows for the creation of multi-material components, where different powders are combined and sintered together to achieve specific functionalities. For example, a component may have a hard, wear-resistant surface and a tough, ductile core, all achieved through careful control of the sintering process.

Overview of Sintering Techniques

Several sintering techniques are employed in powder metallurgy, each with its own advantages and applications. The choice of technique depends on factors such as the material being processed, the desired properties of the final component, and the production scale. Below are some of the most commonly used sintering methods:

1. Conventional Sintering: This is the most widely used technique, where the powdered material is compacted into a desired shape and then heated in a controlled atmosphere furnace. The process is simple and cost-effective, making it suitable for large-scale production.
2. Hot Isostatic Pressing (HIP): In this method, the material is subjected to high pressure and temperature simultaneously, resulting in components with superior density and mechanical properties. HIP is often used for critical applications, such as aerospace components and medical implants.
3. Spark Plasma Sintering (SPS): Also known as field-assisted sintering, this technique uses an electric current to rapidly heat the material, reducing the sintering time and energy consumption. SPS is ideal for materials that are difficult to sinter using conventional methods.
4. Microwave Sintering: This innovative technique uses microwave energy to heat the material, offering faster processing times and energy efficiency. It is particularly effective for ceramics and composite materials.
5. Selective Laser Sintering (SLS): A key technology in additive manufacturing, SLS uses a laser to selectively sinter powdered material layer by layer, enabling the production of complex geometries and customized components.

Each of these techniques has its own set of benefits and limitations, and advancements in sintering technology continue to expand the possibilities for material design and manufacturing. By understanding the principles and applications of these methods, engineers and manufacturers can select the most appropriate technique to meet their specific needs.

Types of Sintering

Sintering is a versatile process with various techniques tailored to meet specific material and application requirements. Each method offers unique advantages, making it suitable for different industries and purposes. Below, we explore some of the most prominent sintering methods, highlighting their processes, benefits, and applications.

Pressureless Sintering

Pressureless sintering is one of the most commonly used techniques in material processing. This method involves heating compacted powder in a controlled atmosphere or vacuum without applying external pressure. The process relies on atomic diffusion to bond particles together, resulting in a dense and cohesive structure.

This technique is particularly advantageous for its simplicity and cost-effectiveness, making it ideal for large-scale production. It is widely used in the manufacturing of ceramics, refractory materials, and certain metal components. However, the absence of external pressure can limit the density and mechanical properties of the final product, which may require additional processing for high-performance applications.

Liquid Phase Sintering

Liquid phase sintering is a specialized technique that involves the presence of a liquid phase during the sintering process. This occurs when a portion of the material melts while the rest remains solid, facilitating enhanced particle bonding and densification. The liquid phase acts as a binder, filling voids and promoting grain rearrangement.

This method is particularly effective for materials with complex compositions, such as tungsten carbide and cermets. Liquid phase sintering is commonly used in the production of cutting tools, wear-resistant components, and high-strength alloys. Its ability to achieve near-theoretical density and superior mechanical properties makes it a preferred choice for demanding applications.

Microwave Sintering

Microwave sintering is an innovative technique that uses microwave energy to heat materials. Unlike conventional methods, which rely on external heat sources, microwave sintering generates heat internally within the material. This results in faster processing times, energy efficiency, and uniform heating.

This method is especially effective for ceramics and composite materials, where traditional sintering methods may struggle to achieve uniformity. Microwave sintering is gaining popularity in industries such as electronics, where precision and material integrity are critical. However, the technique requires careful control of parameters to avoid overheating or uneven densification.

Spark Plasma Sintering

Spark plasma sintering (SPS), also known as field-assisted sintering, is a rapid and energy-efficient method that uses an electric current to heat the material. The process involves applying a pulsed direct current through the powder compact while simultaneously applying pressure. This combination accelerates densification and reduces sintering time.

SPS is particularly suitable for materials that are difficult to sinter using conventional methods, such as nanostructured materials and advanced ceramics. Its ability to retain fine microstructures and achieve high density makes it a valuable tool for research and high-performance applications. However, the equipment and operational costs can be higher compared to traditional techniques.

Flash Sintering

Flash sintering is a relatively new and groundbreaking technique that involves the application of an electric field to a material during heating. When the material reaches a critical temperature, a sudden increase in conductivity occurs, leading to rapid densification within seconds. This method significantly reduces energy consumption and processing time.

Flash sintering is particularly promising for ceramics and other non-metallic materials, where traditional methods may require prolonged heating cycles. Its potential for scalability and energy efficiency makes it an attractive option for sustainable manufacturing. However, the technique is still under development, and challenges such as controlling the process and ensuring uniformity remain.

Selective Laser Sintering

Selective laser sintering (SLS) is a key technology in additive manufacturing, commonly known as 3D printing. This method uses a high-powered laser to selectively fuse powdered material layer by layer, creating complex geometries and customized components. SLS is highly versatile, capable of processing a wide range of materials, including polymers, metals, and composites.

The primary advantage of SLS is its ability to produce intricate designs without the need for molds or tooling. This makes it ideal for prototyping, small-batch production, and applications requiring high customization. However, the surface finish and mechanical properties of SLS parts may require post-processing to meet specific standards.

Metal Sintering Process

The metal sintering process is a transformative manufacturing technique that converts powdered metals into solid, high-performance components. This process is widely used in industries such as automotive, aerospace, and medical devices due to its ability to produce complex shapes with excellent mechanical properties. By carefully controlling the sintering parameters, manufacturers can achieve components with precise dimensions, high density, and tailored material characteristics. The process is particularly advantageous for creating parts that would be challenging or costly to produce using traditional methods like casting or machining.

Materials Used in Metal Sintering

A wide variety of materials can be used in metal sintering, each selected based on the desired properties of the final product. Commonly used materials include:

1. Iron and Steel Powders: These are the most widely used materials in metal sintering, particularly for automotive components like gears, bearings, and structural parts. Alloying elements such as carbon, nickel, and molybdenum are often added to enhance strength and wear resistance.
2. Stainless Steel: Stainless steel powders are utilized in applications that require corrosion resistance, such as medical implants, kitchenware, and chemical processing equipment. The addition of chromium and nickel ensures durability in harsh environments.
3. Tungsten and Tungsten Carbide: These materials are ideal for high-temperature and wear-resistant applications, such as cutting tools and aerospace components. Tungsten carbide, in particular, is known for its exceptional hardness and strength.
4. Copper and Bronze: Copper-based powders are commonly used for applications requiring electrical and thermal conductivity, such as heat sinks and electrical contacts. Bronze, an alloy of copper and tin, is often used for bearings and bushings due to its self-lubricating properties.
5. Titanium: Titanium powders are utilized in industries such as aerospace and medical due to their high strength-to-weight ratio and biocompatibility. Titanium components are lightweight, corrosion-resistant, and ideal for critical applications.
6. Aluminum: Aluminum powders are used for lightweight applications, particularly in the automotive and aerospace sectors. Aluminum’s low density and good thermal conductivity make it a popular choice for heat exchangers and structural components.

Steps in the Metal Sintering Process

The metal sintering process involves several key steps, each of which plays a crucial role in determining the quality and properties of the final product. These steps include:

1. Powder Preparation: The process begins with the selection and preparation of metal powders. Powders are often mixed with alloying elements, lubricants, or binders to achieve the desired composition and flow characteristics.
2. Compaction: The prepared powder is compacted into a desired shape using a die or mold. This step, known as powder pressing, applies high pressure to form a “green” compact with sufficient strength for handling. The compacted part retains the shape of the mold but is still fragile.
3. Sintering: The green compact is heated in a controlled atmosphere furnace to a temperature below the melting point of the primary material. During this stage, atomic diffusion occurs, bonding the particles together and increasing the density and strength of the component.
4. Post-Sintering Operations: Depending on the application, additional processes such as machining, heat treatment, or surface finishing may be performed to achieve the required dimensions, surface quality, or mechanical properties.
5. Quality Inspection: The final step involves inspecting the sintered components for defects, dimensional accuracy, and material properties. Non-destructive testing methods, such as X-ray or ultrasonic inspection, are often used to ensure quality.



Factors Influencing Metal Sintering

Several factors influence the success and efficiency of the metal sintering process. These factors must be carefully controlled to achieve optimal results:

1. Powder Characteristics: The size, shape, and composition of the metal powder significantly affect the sintering process. Fine powders with uniform particle size distribution promote better packing density and sintering behavior.
2. Compaction Pressure: The pressure applied during the compaction stage determines the density and strength of the green compact. Insufficient pressure can lead to porosity, while excessive pressure may cause cracking or tool wear.
3. Sintering Temperature and Time: The temperature and duration of the sintering process are critical for achieving the desired material properties. Higher temperatures and longer sintering times promote densification but may also lead to grain growth or distortion.
4. Atmosphere Control: The sintering atmosphere, typically composed of inert gases or reducing agents, prevents oxidation and ensures the chemical stability of the material. The choice of atmosphere depends on the material being sintered.
5. Additives and Binders: The use of lubricants, binders, or alloying elements can enhance the sintering process by improving powder flow, reducing friction, or tailoring material properties.
6. Cooling Rate: The rate at which the sintered component is cooled can affect its microstructure and mechanical properties. Controlled cooling is often used to achieve specific hardness or toughness levels.

By understanding and optimizing these factors, manufacturers can produce high-quality sintered components that meet the stringent requirements of modern industries.

Sintering Furnaces

Sintering furnaces are specialized equipment designed to facilitate the sintering process by providing controlled heating environments. These furnaces play a critical role in ensuring the successful transformation of powdered materials into dense, cohesive components. By maintaining precise temperature control, atmosphere regulation, and heating rates, sintering furnaces enable manufacturers to achieve the desired material properties and structural integrity. The choice of furnace type and design depends on the material being processed, the sintering technique employed, and the specific requirements of the application.

Types of Sintering Furnaces

Sintering furnaces come in various types, each tailored to meet specific industrial needs. Below are the most commonly used furnace types:

1. Continuous Belt Furnaces: These furnaces are designed for high-volume production and feature a conveyor belt that moves components through different heating zones. Continuous belt furnaces are ideal for mass production of small to medium-sized parts, such as automotive components, due to their efficiency and consistent heating.
2. Batch Furnaces: In batch furnaces, components are loaded into the furnace in batches and processed together. This type of furnace is suitable for smaller production runs or when precise control over individual batches is required. Batch furnaces are often used for sintering high-value or complex components.
3. Vacuum Furnaces: Vacuum furnaces operate in a vacuum or low-pressure environment, preventing oxidation and contamination during the sintering process. These furnaces are commonly used for materials that are sensitive to atmospheric gases, such as titanium and superalloys.
4. Muffle Furnaces: Muffle furnaces feature a separate chamber that isolates the components from the heating elements, ensuring uniform temperature distribution. These furnaces are often used for sintering ceramics and other materials requiring precise temperature control.
5. Microwave Furnaces: Microwave furnaces use microwave energy to heat materials, offering faster processing times and energy efficiency. These furnaces are particularly effective for sintering ceramics and composite materials.
6. Hot Press Furnaces: Hot press furnaces combine heat and pressure to achieve high-density components. These furnaces are commonly used for advanced ceramics and materials requiring exceptional mechanical properties.

Design and Functionality of Sintering Furnaces

The design and functionality of sintering furnaces are critical to their performance and efficiency. A well-designed furnace ensures uniform heating, precise temperature control, and a controlled atmosphere, all of which are essential for successful sintering. Key design features include:

• Heating Elements: Sintering furnaces use various heating elements, such as molybdenum, graphite, or silicon carbide, depending on the operating temperature and material requirements. These elements provide consistent and efficient heat transfer.
• Temperature Control Systems: Advanced temperature control systems, including thermocouples and programmable controllers, allow for precise regulation of heating rates and sintering temperatures. This ensures that the material properties are optimized.
• Atmosphere Control: Many sintering furnaces are equipped with gas flow systems to maintain a controlled atmosphere. Inert gases like argon or nitrogen are often used to prevent oxidation, while reducing gases like hydrogen can enhance material properties.
• Insulation: High-quality insulation materials, such as ceramic fiber or refractory bricks, minimize heat loss and improve energy efficiency. Proper insulation also ensures uniform temperature distribution within the furnace.
• Cooling Systems: Some furnaces include controlled cooling systems to regulate the cooling rate of sintered components. This is particularly important for materials that require specific microstructures or mechanical properties.

Assisted Sintering Techniques

Assisted sintering techniques enhance the efficiency and effectiveness of the sintering process by incorporating additional energy sources or mechanical forces. These techniques are particularly useful for materials that are challenging to sinter using conventional methods. Below are some common assisted sintering techniques:

1. Hot Isostatic Pressing (HIP): This technique combines high temperature and isostatic pressure to achieve near-theoretical density and superior mechanical properties. HIP is often used for critical applications, such as aerospace components and medical implants.
2. Spark Plasma Sintering (SPS): Also known as field-assisted sintering, SPS uses a pulsed electric current to rapidly heat the material while applying pressure. This method significantly reduces sintering time and is ideal for advanced ceramics and nanostructured materials.
3. Microwave-Assisted Sintering: Microwave energy is used to heat the material internally, resulting in faster processing times and energy savings. This technique is particularly effective for ceramics and composite materials.
4. Flash Sintering: Flash sintering involves the application of an electric field to the material during heating, leading to rapid densification within seconds. This technique is energy-efficient and suitable for ceramics and other non-metallic materials.
5. Laser-Assisted Sintering: In this method, a laser is used to selectively heat and sinter powdered material, layer by layer. This technique is commonly used in additive manufacturing to produce complex geometries and customized components.

By leveraging these assisted sintering techniques, manufacturers can overcome the limitations of traditional methods and achieve superior material properties, faster processing times, and greater energy efficiency.

Sintering of Ceramics

Sintering of ceramics is a critical process in the production of high-performance ceramic materials. This thermal treatment transforms ceramic powders into dense, durable, and functional components by bonding particles at high temperatures. Unlike metals, ceramics require precise control of temperature and atmosphere due to their brittle nature and unique material properties. The process is widely used in industries such as electronics, aerospace, and healthcare, where ceramics are valued for their exceptional hardness, thermal stability, and resistance to corrosion. By optimizing sintering parameters, manufacturers can achieve components with tailored properties, such as enhanced strength, reduced porosity, and improved thermal conductivity.

Differences Between Metal and Ceramic Sintering

While the fundamental principles of sintering apply to both metals and ceramics, there are significant differences in their processes due to the distinct characteristics of these materials. One of the primary differences lies in the sintering temperature. Ceramics typically require much higher temperatures than metals to achieve densification, as their melting points are significantly higher. This necessitates the use of specialized furnaces and heating elements capable of withstanding extreme conditions.

Another key difference is the role of grain growth. In metal sintering, controlled grain growth can enhance mechanical properties, such as toughness and ductility. However, in ceramic sintering, excessive grain growth can lead to brittleness and reduced strength. As a result, ceramic sintering often involves additives or techniques to inhibit grain growth and maintain fine microstructures.

The sintering atmosphere also varies between metals and ceramics. While metals often require reducing or inert atmospheres to prevent oxidation, ceramics may require specific gas compositions to promote chemical stability or phase transformations. Additionally, ceramics are more sensitive to thermal gradients, making uniform heating and cooling essential to prevent cracking or warping.

Finally, the applications of sintered metals and ceramics differ significantly. Metals are commonly used for structural and load-bearing components, while ceramics are favored for their insulating, wear-resistant, and biocompatible properties. These differences highlight the need for tailored sintering processes to meet the unique requirements of each material.

Applications of Sintered Ceramics

Sintered ceramics are used in a wide range of applications due to their exceptional properties, such as high hardness, thermal stability, and resistance to wear and corrosion. Below are some of the most prominent applications:

1. Electronics and Semiconductors: Ceramics are widely used in electronic components, such as capacitors, insulators, and substrates, due to their excellent electrical insulation and thermal conductivity. Materials like alumina and silicon nitride are commonly employed in these applications.
2. Aerospace and Defense: The aerospace and defense industries rely on sintered ceramics for components that require high strength and thermal resistance, such as turbine blades, armor plates, and heat shields. Advanced ceramics like zirconia and silicon carbide are often used in these demanding environments.
3. Medical Devices: Biocompatible ceramics, such as hydroxyapatite and zirconia, are used in medical implants, dental crowns, and prosthetics. These materials offer excellent compatibility with human tissues and long-term durability.
4. Automotive Industry: Sintered ceramics are used in automotive applications, such as brake pads, spark plugs, and sensors, due to their wear resistance and ability to withstand high temperatures.
5. Industrial Tools and Machinery: Ceramics are used in cutting tools, grinding wheels, and wear-resistant components for industrial machinery. Their hardness and resistance to abrasion make them ideal for these applications.
6. Energy and Environmental Applications: Sintered ceramics are used in fuel cells, filters, and catalysts for energy and environmental applications. Their chemical stability and thermal resistance make them suitable for harsh operating conditions.

These applications demonstrate the versatility and importance of sintered ceramics in modern technology and industry.

Future Trends in Ceramic Sintering

The field of ceramic sintering is evolving rapidly, driven by advancements in materials science and manufacturing technologies. One of the most promising trends is the development of additive manufacturing techniques, such as selective laser sintering and binder jetting, for ceramics. These methods enable the production of complex geometries and customized components with minimal material waste.

Another significant trend is the use of advanced sintering techniques, such as spark plasma sintering and flash sintering, to reduce energy consumption and processing times. These methods offer the potential to achieve superior material properties while minimizing environmental impact.

The integration of nanotechnology is also transforming ceramic sintering. By using nanoscale powders, manufacturers can achieve finer microstructures and enhanced properties, such as increased strength and toughness. Nanotechnology also enables the development of multifunctional ceramics with tailored electrical, thermal, and optical properties.

Sustainability is becoming a key focus in ceramic sintering, with efforts to develop energy-efficient processes and recyclable materials. Researchers are exploring the use of alternative energy sources, such as microwaves and solar energy, to reduce the carbon footprint of sintering operations.

Finally, the demand for high-performance ceramics in emerging industries, such as renewable energy, electric vehicles, and advanced electronics, is driving innovation in sintering processes and materials. These trends highlight the growing importance of ceramic sintering in shaping the future of technology and manufacturing.

Frequently Asked Questions

Q: What is sintering?

A: Sintering is a process that compacts and forms a solid mass of material by applying heat or pressure, without melting it to the point of liquefaction. Commonly used in powder metallurgy, it involves heating metal powders to a temperature below their melting point, allowing the particles to bond and form durable components.

Q: What are the types of sintering methods?

A: Sintering methods include conventional sintering, pressure-assisted sintering, microwave sintering, and advanced techniques like spark plasma sintering. Each method differs in terms of temperature, pressure, and processing time, which influence the microstructure and properties of the final product.

Q: What is the role of temperature in the sintering process?

A: Temperature is a critical factor in sintering, as it controls the rate of diffusion and bonding between particles. Higher temperatures accelerate densification and improve particle bonding, while lower temperatures may result in slower processing and different material properties.

Q: How does pressure-assisted sintering work?

A: Pressure-assisted sintering applies external pressure during heating to enhance densification and reduce processing time. This method improves particle rearrangement and bonding, resulting in components with superior mechanical properties and reduced porosity.

Q: What is solid-state sintering?

A: Solid-state sintering is a process where particles bond through diffusion mechanisms without reaching their melting point. This technique is essential for achieving high density and mechanical strength in materials like metals and ceramics.

Q: How long does the sintering process typically take?

A: The duration of sintering depends on the material and method used. Conventional sintering can take several hours, while advanced techniques like flash sintering or pressure-assisted sintering can achieve full densification in minutes or even seconds.

Q: What is a nanoparticle sintering aid?

A: Nanoparticle sintering aids are additives that enhance the sintering process, especially at lower temperatures. They improve particle bonding and densification, making them valuable for producing advanced ceramics and metal matrix composites.

Q: How is sintered metal powder used in manufacturing?

A: Sintered metal powder is widely used to manufacture components like cutting tools, automotive parts, and industrial machinery. The sintering process allows precise control over material properties, making it a key technique in additive manufacturing and powder metallurgy.

Q: What are the advantages of using sintering in manufacturing?

A: Sintering offers numerous benefits, including the ability to produce complex shapes, minimize material waste, and enhance the mechanical properties of components. It is a cost-effective and efficient method for creating high-performance parts from metal and ceramic powders.

Conclusion

Sintering has revolutionized the way materials are processed, offering unmatched precision, efficiency, and versatility. Whether it’s producing intricate metal components or high-strength ceramics, this process continues to drive innovation across industries. As new technologies like nanoparticle sintering aids and advanced sintering techniques emerge, the potential for creating even more efficient and sustainable manufacturing solutions grows. Understanding sintering’s principles and applications is key to leveraging its full potential in modern engineering and production.
