Strainers and filters are essential in industrial applications for separating debris and contaminants from liquids and gases. They safeguard machinery, enhance operational efficiency, and ensure consistent workflow in numerous sectors. The most critical problem arises from the common misconception regarding the differentiation between strainers and filters. This misconception, in turn, complicates the identification of the right solution needed.
It is important to note that understanding the unique characteristics of strainers and filters aids in streamlining the decision-making process. Selecting the incorrect device opposing the requirements can lead to operational inefficiencies, increased maintenance costs, and sometimes, irreparable damage to the equipment.
This guide is aimed to help the user differentiate between the two devices to ensure the most favorable choice is made for the intended applications. Understanding the problem better equips us to deal with it. Hence, let’s resolve the ambiguity and get started!
What Are Strainers and Filters?
Like many industrial systems, the processes of separating fluids and cleaning them of unwanted particulates involve the use of strainers and filters. These tools are used in the removal of unwanted contaminants in different applications, such as systems for liquids and gases. Specifically, strainers are used as the first line of defense in pre-filtration processes; as they are used to collect coarser debris and large particulates. Filters are used for finer impurities, where they are applied on systems that need higher precision filtration. Strainers and filters, maintain a fluid or gas flow, These two tools have different applications they are used for, with the main difference being the size of particles they deal with. Strainers deal with larger contaminants, for instance, dirt, rust, or other hefty particulates. While filters are made specially to deal with fine sediments and microscopic debris. Both filters and strainers have an important role in optimizing the systems, while helping prevent problems in the components downstream.
How Do Strainers and Filters Work?
Every filtration system has strainers and filters, where each of them serves a different purpose and has a unique Applicaton. Understanding how filters and strainers work enables the user to pick the right one for the purpose they have in mind.
Strainers
Strainers serve the purpose of coarse filtration, preventing larger particles and debris from entering the liquid and gas stream. Strainers utilize mesh or perforated sheets of material to capture filtering contaminants such as dirt, rust, or sediment. Strainers serve as the first line of protection and help avert damage to downstream equipment, such as pumps, valves, and heat exchangers. Strainers are most useful for water treatment, irrigation systems, and industrial pipelines, where such equipment is easier to maintain and more robust.
Filters
Filters effectively remove minute particles and contaminants from fluids and gases, performing fine filtration. They achieve high purification levels employing membranes, cartridges, or activated carbon. Filters focus on precision and quality control required in pharmaceutical production, food and beverage processing, and chemical manufacturing. Filters ensure product integrity by removing the smallest contaminants and help maintain strict industry standards.
While both filters and strainers are essential in preserving operational efficiency and protecting the equipment, their applications and functions differ significantly.

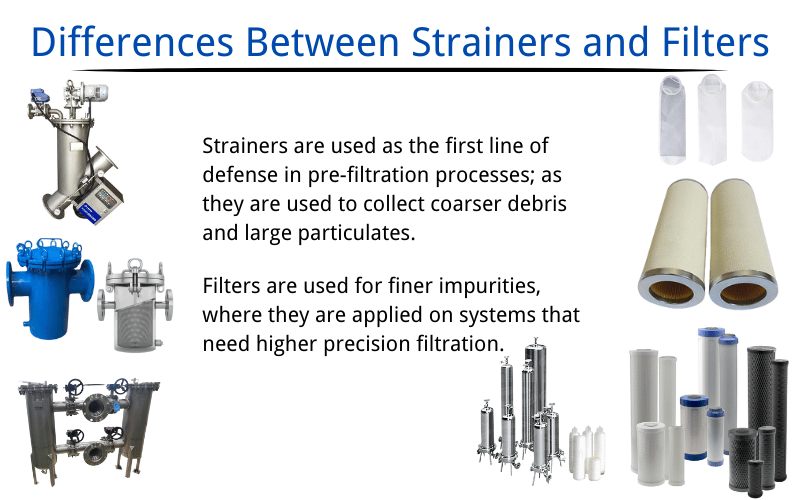

Key Differences Between Strainers and Filters
Strainers and filters serve different purposes in filtration systems, and understanding their key differences helps you make the right choice for your application. Below is a detailed comparison table for easy reference:
| Aspect | Strainers | Filters |
|---|---|---|
| Functionality | Focus on coarse filtration to trap larger debris. | Handle fine filtration to remove microscopic particles. |
| Particle Size | Remove particles larger than 40 microns. | Remove particles smaller than 40 microns. |
| Reusability | Use reusable mesh or perforated screens. | Require replacement of filter media like cartridges or membranes. |
| Pressure Drop | Cause minimal pressure drop in the system. | Create a higher pressure drop due to finer filtration. |
| Applications | Protect equipment like pumps and valves by removing large debris. | Ensure product purity in industries like pharmaceuticals and food processing. |
| Maintenance | Offer quick and easy cleaning with reusable screens. | Require more time and effort for maintenance due to media replacement. |
Strainers are particularly useful in cases where protecting machinery from big pieces of debris is critical, for instance in water treatment or industrial pipelines. Meanwhile, filters are indispensable in processes requiring absolute purity and precision such as in chemical or beverage industries. Understanding these differences enables you to choose a solution tailored to your operational demands.
Differences And Similarities Between Strainers And Filters
The similarities between filters and strainers often result in difficulty discerning which one better suits the intended purpose. Filters and strainers perform the same primary function which is the removal of unwanted particulates from liquids or gases. Both ensure smoother flow and protection of the entire unit. Downstream equipment including pumps, valves, and heat exchangers are protected from potential damage improving system reliability and maintenance needs.
Both strainers and filters can feature duplex designs, which allow for continuous operation. Strainers and filters can be made in duplex versions which provide continuous operation of the system. Using two filtration units, one can be active and the other can be cleaned or maintained. This design is uninterrupted and is very advantageous for industries such as manufacturing, or water treatment that cannot afford any interruptions.
The distinctions of strainers and filters are not very clear because of these similarities. Filters and strainers are important parts of filtration systems however, both differ in use, functionality, the size of particles removed, and applications. Knowing these similarities, as well as their unique characteristics, clarifies the instances when one should use a strainer or use a filter.

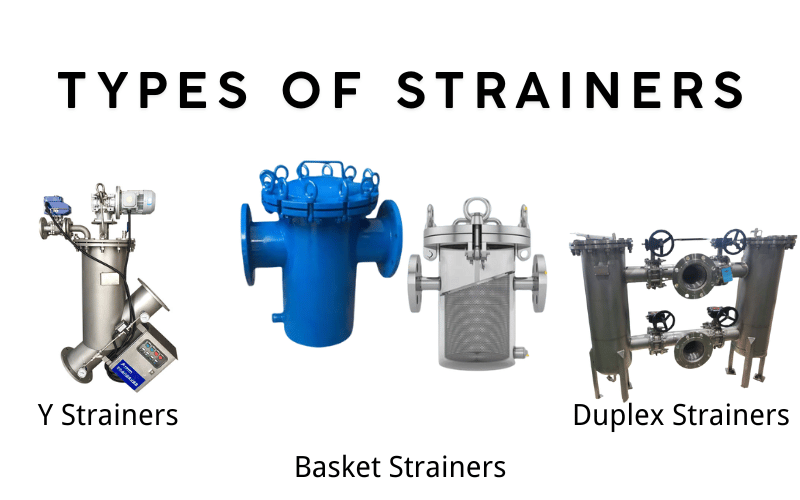

Types of Strainers
Strainers have various designs that cater to different applications and a given system’s needs. Knowing the various types makes it easy to choose the right one. The most popular types of strainers and their applications are detailed below.
Y Strainers
Y-strainers are compact and are found in pipelines which have low solid content. Their body shaped as a Y makes it possible to fit in vertical and horizontal pipelines. These strainers are best suited to applications such as steam, gas, and liquid systems which have a confined operating space and low contaminants.
Basket Strainers
Basket strainers are easy to clean and therefore their high flow capacity removable. These strainers are suited for systems with high liquid throughputs and frequent servicing. These include water treatment, oil and gas, and chemical processing. The durability and efficiency of these basket strainers make them popular in various industries.
Duplex Strainers
Duplex strainers can be maintained while in operation, therefore designed for continuous operation. Their two strainer chambers are a benefit, since one can be cleaned while the other remains in use. Such systems are very critical and cannot afford any downtime, and are found in power plants, marine applications, and industrial manufacturing.
Cone strainers
Cone strainers, also referred to as temporary strainers, save space and are used in systems with high flow rates. Their conical shape offers an extensive area for filtration and a low-pressure drop. These strainers are usually used temporarily during start-up of a system in order to protect the system from debris and construction contaminants.
T strainers
T strainers are used for high flow rates and are often installed at angles. Their T shaped body offers a high degree of functional filtration for systems with large flow requirements. These strainers are used in the petrochemical and water distribution industries and in HVAC systems.
Visual Comparison of Strainer Types and Applications
| Strainer Type | Key Features | Applications |
|---|---|---|
| Y-Strainers | Compact, low solids, versatile | Steam, gas, and liquid pipelines |
| Basket Strainers | High flow, removable baskets | Water treatment, oil and gas, chemical processing |
| Duplex Strainers | Continuous operation, dual chambers | Power plants, marine systems, industrial setups |
| Cone Strainers | Space-saving, temporary use | System start-up, high-flow systems |
| T-Strainers | High flow rates, angled installations | Petrochemicals, water distribution, HVAC systems |
By understanding the unique features and applications of each strainer type, you can select the most effective option for your system. Each design offers specific advantages, ensuring optimal performance and protection for your equipment.

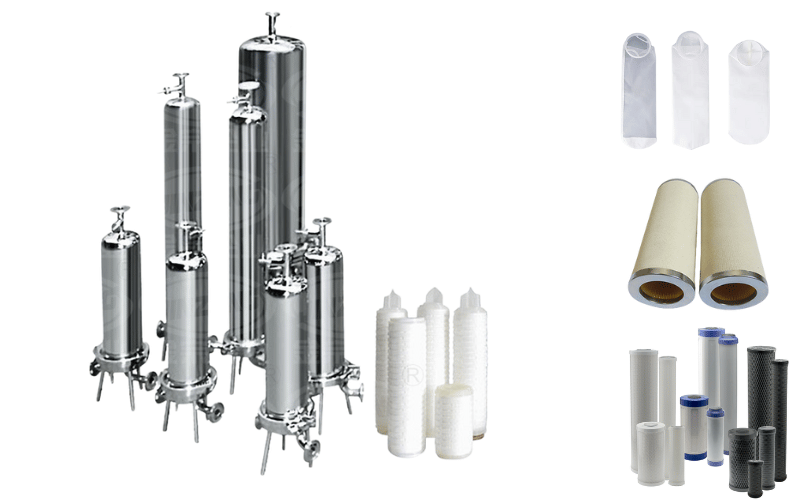

Types of Filters
Each filter has its unique design, catering to specific needs. Having knowledge of filters will aid in selecting the most appropriate fit for your system. Described below are the most common filter types along with the scenarios in which they are best suited.
Bag Filters
As filters with the highest flow rates, bag filters capture large quantities of contaminants. They employ a fabric or mesh bag to trap particles, which is useful in water treatment, chemical processing, and in industrial cooling systems. They are inexpensive when large amounts of debris are processed as they are easy to maintain.
Cartridge Filters
As bag filters capture large quantities of contaminants using mesh bags, cartridge filters capture smaller contaminants using cylindrical mesh bags. These filters are easier to replace and are frequently utilized in pharmaceutical, food and laboratory systems as they require precise filtration. Their modular design allows easy tailoring and replacement, meeting diverse filtration requisites.
Membrane Filters
Membrane filters are used to eliminate microscopic particles such as bacteria and viruses with the aid of semi-permeable membranes. They are critical in the sterilization of medical equipment, reverse osmosis systems, and the manufacturing of microelectronics, which requires ultra-pure water or air. These filters are essential in ultra-filtration and critical filtration industries due to their effectiveness in achieving elevated levels of filtration.
Activated Carbon Filters
The specialized porous carbon mediums within Activated carbon filters enable the removal of organic compounds, chlorine, and gases. These filters are ideal for devices and services such as air and water filtration systems and industrial odor elimination. They are best known for the removal of smell and taste of water in water systems.
Coalescer Filters
Coalescer filters remove water or oil from other fluids to ensure cleaner output. They employ specialized media to remove smaller droplets from a system which allows for easier removal of larger droplets. These filters are used in the oil and gas processing industries, aviation fuel systems, and industrial lubrication systems for the equipment to preserve and maintain fluid purity.
Chart Comparing Filter Types and Ideal Use Cases
| Filter Type | Key Features | Ideal Use Cases |
|---|---|---|
| Bag Filters | High flow rates, large contaminant capacity | Water treatment, chemical processing, cooling systems |
| Cartridge Filters | Replaceable media, fine filtration | Pharmaceuticals, food and beverage, laboratories |
| Membrane Filters | Semi-permeable, microscopic particle removal | Medical sterilization, reverse osmosis, electronics |
| Activated Carbon Filters | Removes chlorine, organic compounds, odors | Drinking water, air filtration, odor control |
| Coalescer Filters | Separates oil or water from fluids | Oil and gas, aviation fuel, lubrication systems |
By understanding the unique features and applications of each filter type, you can select the most suitable option for your system. Each filter offers specific advantages, ensuring optimal performance and meeting the demands of your industry.
Applications of Strainers and Filters
Restainers and filters perform essential functions in different industries and sectors, including system efficiency, equipment protection, and product quality. Each serves different purposes and is designed differently and therefore used differently. In the coming sections, will discuss the various aspects of strainers and filters and illustrate their significance through applicable examples.
Strainers
Strainers facilitate the removal of larger production particles and fragments of materials, and thus, are critical in maintaining equipment and equipment.
- Protecting Pumps and Valves in Industrial Systems: Strainers provide protection against large fragments of material interfering internal devices like pumps and valves which leads to excess damage. For instance, in the Y-strainers used in chemical engineering production plants, pumps are protected from the debris sagged by the pumps to ensure production efficiency.
- Wastewater Treatment Strainers: In the primary stages of the wastewater treatment process, strainers are responsible to remove solid waste materials such as plastics and organic materials to avoid clogs in downstream equipment.
- Pre-Filtration in Pipelines: Strainers remove contaminants like rust and dirt, acting as the first defense line in pipelines. In oil refineries, basket strainers are used to protect heat exchangers and critical components from damage by large particles.
Filters
Different from strainers, filters work on different, finer tasks to ensure the quality and purity of materials.
- Maintaining Sterile Conditions in Pharmaceuticals: During the production of sterile drugs, membrane filters are utilized to eliminate bacteria and viruses. For example, pharmaceutical companies ensure injectable medications are filtered by these safety barbs.
- Removing Contaminants from Water: Carbon filters eliminate the chlorine and organic compounds in the drinking water, which enhances its safety and taste. In industrial settings, reverse osmosis systems work to membrane filter water to an ultra-pure state to manufacture microelectronics.
- Restoration of Oil, Fuel, and Air in Vehicles: Maintaining the engine oil, fuel, and air in the cars is done using cartridge filters. High efficiency air filters help in protecting the engine by capturing fine dust particles.
- Ensuring Clarity and Good Taste in Food and Beverages Sectors: Yeast and sediment are removed from beers and juices using fine filters which help in enhancing the taste.
A filtration and straining system is essential in protecting industrial equipment and consumable goods. The tools of filtration are significant in a variety of fields. Strainers and filters heighten system reliability and operational efficiency.
Factors to Weigh When Deciding Between a Strainer and a Filter
A strainer and a filter both have advantages and disadvantages. Most importantly, a strainer and a filter treat water differently. Each type of filtration encompasses many components, each of which must be evaluated to ascertain what would work best in your process. We shall outline some of the most important aspects that need to be taken into consideration.
Particle Size: Coarse and Fine Filtration Differentiation
To best evaluate your filtration method, first, determine the size of the particles that need to be eliminated. Strainers work well to separate larger particles, generally over 40 microns, and are termed coarse filters. As their name suggests, filters capture increasingly smaller particles. For instance, to safeguard a pump from large stones, a strainer is sufficient. On the other hand, sterile water filters, used in the pharmaceutical industry for water, are filters that ensure the removal of bacteria and viruses.
Flow Rate and Pressure: Meeting System Specifications
Assess your filtration solution’s capabilities in relation to your system’s flow rate and pressure requirements. Strainers are best suited for high-flow systems as they incur minimal pressure drop. Conversely, filters are plagued with a finer filtration media that increases pressure drop, and may require additional measures, such as booster pumps, to offset this. For example, a high-flow industrial pipeline may benefit from a basket strainer, whereas a reverse osmosis system has need for a membrane filter.
Maintenance Needs: Cleaning Versus Replacing
Evaluate your system’s maintenance capaibilities. Strainers are better suited for systems where flow shall be interrupted, as their screens can be easily cleaned and reused. Filters, on the other hand, are more costly to maintain as they need to repeatedly and frequently replace their cartridges, membranes, or other media. For instance, a duplex strainer permits continuous operation during maintenance, whereas a cartridge filter in a laboratory setting necessitates regular replacement to maintain precision.
Examine your system’s layout and functional needs. Filters and strainers placed inline are more compact and simpler, whereas duplex configurations allow for continuous operation while maintenance is conducted on other units. Critical systems, such as those in power plants or marine applications, require uninterrupted service and are thus outfitted with duplex strainers or filters to maintain system redundancy.
Material Compatibility: Resistance to Temperature, Pressure, and Chemicals
Consider the operational boundaries of your system when selecting a strainer or a filter. Highly corrosive or reactive chemicals, as well as extreme temperatures and pressures, demand robust materials like stainless steel or specialized alloys. For instance, a food processing facility may require a strainer made from food-safe materials, while a chemical processing plant may need components that are resistant to corrosion.
Decision-Making Flow Chart
For more streamlined decision-making, use this flowchart:
Which particle size do you require to eliminate?
- Larger than 40 microns: Choose a strainer.
- Smaller than 40 microns: Choose a filter.
What is the flow rate and pressure in the system?
- High flow and low pressure drop: Choose a strainer.
- Moderate flow and higher pressure drop is acceptable: Choose a filter.
Which options do you prefer that require maintenance?
- Strainers offer easy cleaning and reusable screens: Choose a strainer.
- Filters offer replaceable media and precision filtration: Choose a filter.
Does the system require continuous operation?
- Yes: Opt for a duplex configuration.
- No: Inline configuration is sufficient.
What are the operating conditions?
High temperature, pressure, or chemical exposure requires specific materials: Select materials accordingly.
Taking these factors into account ensures confidence in system solutions. Every application is distinct with varying needs, and precision picking between a strainer and filter guarantees system efficiency and durability.
Maintenance Tips for Strainers and Filters
Correct maintenance protocols for strainers and filters not only ensures maximum productivity, but also enhances their lifespan by preventing expensive system failures. Through adherence to outlined practices, the filtration systems can be kept operational to minimize unplanned downtimes. Here are recommended practices for strainers and filters maintenance.
Strainers
- Regular Cleaning of Mesh or Baskets: Recurrent cleansing of the strainer’s mesh or basket to eliminate trapped solids is essential. Skipping this step can result to clogs, drop in flow rates, and rise in pressure in the system.
- Monitoring Pressure to Detect Clogs: Pressure gauges can be set up both upstream and downstream of the strainers to check for pressure drop as an indicator for filtering. Noticeable pressure drop indicates clogged strainers in line for cleaning.
- Use of Duplex Strainers to Minimize Downtime. Systems that are also sensitive to downtimes can deploy duplex strainers. These enable switching from one strainer chamber to the other so that cleaning or maintenance can be done while the other is operational.
Filters
- Replacing Filter Media as Needed: Cartridges, membranes and other filter media should be replaced with new ones as per the guidelines set by the manufacturers, or when the filtration is no longer as effective. Putting off replacement can negatively affect the systems and products.
- Lookout for Wear and Damage: Always check the filter housing and pieces for signs of wear and tear, corrosion, or damage. Taking care of these matters early ensures that no leaks are present and that the filter works properly.
- Avoiding Improper Filter Installation: Confirm that the filter is properly and tightly installed. Improper installation increases chances of leaks, lowers filtrations efficiency, and stands the risk of damaging equipment that is present downstream.
Why Preventive Maintenance is Important
Preventive maintenance is important for strainers and filters. Negatively anticipating problems typically leads to expensive repairs, short lifespan, and inefficient systems. For instance, cleaning strainers regularly will prevent the accumulation of debris that may lead to damage on pumps or valves. In the same way, filters media should always be changed on time to maintain quality and prevent contamination.
These matters will not only preserve your equipment, but will also lower the chances of work time loss through interruptions, turmoil, or operational standstills. Long term dependability and efficiency which is required for any application depends on the continuous upkeep of the filtration system.
Tech shocks with new Filtration and Straining Technology
The way businesses manage, contaminants, protect equipment, and enhance system efficiency continues to change with new filtration and straining technology. Focus is placed on enhanced smart performance and monitoring, decreased maintenance levels, increased system durability, and smart technology integration.
Progress in Technology
Modern strainers and filters utilize advanced materials for better durability and efficiency. Corrosion-resistant alloys, duplex stainless steels, and titanium can endure harsh environments, high temperatures, extreme pressures, and aggressive chemicals. These materials are particularly beneficial in oil and gas, chemical processing, and marine industries, as they increase the lifespan of filtration systems. Moreover, biodegradable filter media and filter components offer eco-friendly options that address sustainability. These materials are particularly valuable for industries with strong green initiatives, as they provide high filtration performance while reducing environmental impact.
New Designs for Improved Operating Efficiency and Less Maintenance Work
To a great extent, innovative designs have made filters and strainers easier to maintain as well as more efficient. Self-cleaning strainers, for instance, remove debris using automated mechanisms, eliminating the need for manual cleaning and thus lowering both downtime and labor costs. Through modular filters, parts can be replaced quickly, enabling faster maintenance. Improvement to filtration efficiency, and reduction of the pressure drop, are provided by optimized flow paths and enlarged surface areas of the new high-capacity filters and strainers. With all these improvements, systems are now able to endure and operate under harsh conditions.
Filtration and Straining Performance can be Monitored and Evaluated as They Occur
How filtration and straining are controlled and managed by industries has greatly changed with the incorporation of smart monitoring systems. With these new technologies, sensors and IoT devices are able to monitor flow rates, pressure differentials, contamination levels, and other KPIs in real time. Maintenance alerts are automated and provided in real time. These alerts enable operators to act in time for trouble-shooting, providing timely servicing. A smart monitoring system for a water treatment plant, for instance, can identify clogged filters and alert for servicing enabling uninterrupted operation and consistent maintenance of water quality. Reliability is further enhanced through predictive maintenance powered by data analytics which can identify potential issues and act before the problem.
The development of new materials, design concepts, and smart technologies has greatly improved the efficiency, durability, and ease of use of filtration and straining systems. With the adoption of these innovations, technological and operational costs, system reliability, and environmental compliance, alongside performance benchmarks, can be successfully attained. With the continuous evolution of technology, filtration and straining systems will be indispensable in the industrial sector as sustainablity and efficiency needs are integrated in the processes.
FAQs Concerning Filters and Strainers
Q: What is the primary distinction between a strainer and a filter?
A: The primary distinction between a filter and a strainer is the level of filtration they perform. With a strainer, coarse filtration is performed first, which allows the removal of larger particles, usually greater than 40 microns. Filters focus on fine filtration and capture particles smaller than 40 microns. Strainers protect equipment from larger debris, while filters ensure product purity and precision.
Q: In which situations can a strainer be used in place of a filter?
A: In situations where coarse filtration is acceptable, a strainer can be used in place of a filter. For instance, to protect pumps or valves from larger debris, a strainer is effective. In all other cases that involve fine filtration, especially the removal of microscopic particles in pharmaceuticals or food processing, a filter is a must.
Q: What factors should I consider when selecting a mesh size for a strainer?
A: What matters is the size of the particles that need to be removed, the mesh size required, and the flow rate in your system to pressure drop. Smaller mesh sizes capture particles more effectively, and larger ones will increase pressure drop. Verify your system requirements and industry standards to ensure that the selected mesh size is appropriate for your application.
Q: What are the signs that a filter needs replacement?
A: Visible filtering contamination, reduced flow rate, and increased pressure drop are common indicators. If your system has smart monitoring features, alerts concerning pressure differentials or performance degradation are also indicators. Regular inspections also help mitigate performance degradation and ensure optimal function by identifying wear or clogging beforehand.
Q: Are there reusable filters available?
A: Some filters are reusable, including certain cartridge filters and washable metal mesh filters. These filters are beneficial as they can be reinstalled after being cleaned, thus reducing maintenance and waste costs. However, some filters are not reusable, so it is advisable to check the manufacturer’s description to determine if your specific filter can be cleaned.
Conclusion
It is key to understand the distinction between strainers and filters to make sound choices regarding your filtration requirements. Strainers are proficient in protecting equipment by filtering out larger particles, and filters are proficient in fine filtration to enhance operational efficiency and product quality. System effectiveness in averting system damages, enhancing operational performance, and compliance with industrial benchmarks often relies on choosing the correct solution.
Consider assessing your unique specifications, such as particle size, flow rate, and maintenance preferences. Strategic selection not only protects your equipment, but also improves reliability and reduces operational costs over time. For tailored guidance, do not hesitate to reach out to professionals or browse our diverse product lineup.
