Basket strainers play a crucial role in industrial systems, acting as the first line of defense to protect equipment from debris and contaminants. By effectively filtering out unwanted particles, they help prevent costly damage, reduce unplanned downtime, and ensure smooth operations. For industries relying on efficient filtration, basket strainers are not just an accessory—they are a necessity.
This guide is designed to be your go-to resource for everything related to basket strainers. Whether you’re selecting the right model, installing it correctly, or maintaining it for long-term performance, we’ve got you covered. Our practical tips and straightforward advice will help you make informed decisions and keep your systems running at peak efficiency.
Engineers, plant managers, and anyone involved in industrial filtration systems will find this guide particularly valuable. If you’re responsible for ensuring the reliability of your equipment or optimizing operational efficiency, this resource is tailored for you. Let’s dive into the essentials of mastering basket strainers and unlock their full potential for your systems.
Understanding Basket Strainers
Basket strainers are the unsung heroes of industrial filtration systems, tirelessly working to protect your equipment and ensure smooth operations. As someone who has spent years in the industrial filtration industry, I can confidently say that understanding their role and functionality is the first step toward optimizing your system’s performance.
What is a Basket Strainer?

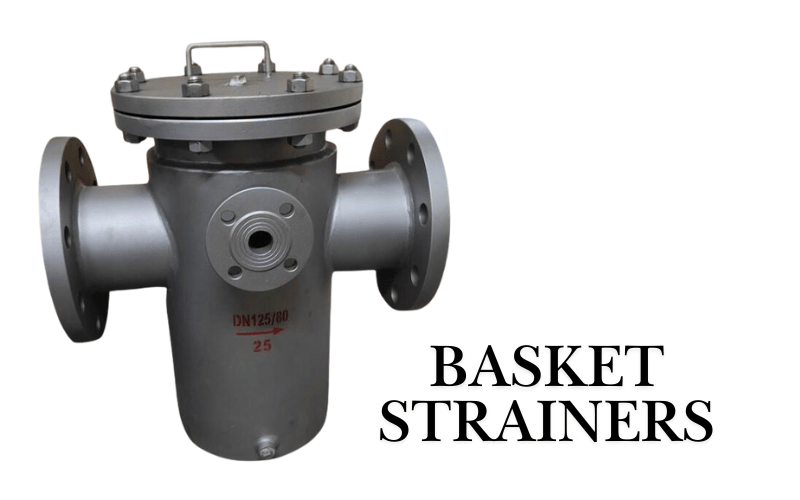

At its core, a basket strainer is a device installed within a piping system to filter out debris, contaminants, and unwanted particles from the fluid flowing through it. Think of it as a vigilant gatekeeper, standing guard to prevent harmful materials from reaching and damaging your downstream equipment. By doing so, it not only extends the lifespan of your machinery but also minimizes costly downtime and maintenance.
The benefits of basket strainers are multifaceted. They protect pumps, valves, and other critical components from wear and tear caused by debris. Additionally, they enhance overall system efficiency by maintaining a clean and unobstructed flow of fluid. Whether you’re dealing with water, oil, or chemicals, a well-chosen basket strainer can make all the difference in keeping your operations running like a well-oiled machine.
How Do Basket Strainers Work?
To truly appreciate the value of a basket strainer, it’s essential to understand how it operates. Picture this: as fluid enters the strainer, it passes through a perforated or mesh-lined basket that traps debris and particles. The clean fluid then exits the strainer, ready to continue its journey through the system. It’s a straightforward yet highly effective process that ensures only the desired fluid reaches your equipment.
While I can’t sketch a diagram here, imagine a cylindrical housing with a removable basket inside. The fluid flows in, debris gets caught in the basket, and the clean fluid flows out. Regular maintenance, such as cleaning or replacing the basket, ensures the strainer continues to perform at its best.
Common Applications
Basket strainers are indispensable across a wide range of industries. In the food and beverage sector, they ensure the purity of liquids like juices and syrups, safeguarding both product quality and equipment. Power generation facilities rely on them to filter cooling water, preventing blockages and maintaining efficiency. In irrigation systems, basket strainers keep debris from clogging pipes and sprinklers, ensuring consistent water flow.
These are just a few examples of how basket strainers serve as the backbone of industrial filtration. Their versatility and reliability make them a trusted choice for engineers and plant managers across the globe. By understanding their purpose and applications, you’re already one step closer to mastering the art of industrial filtration.
Types of Basket Strainers
Choosing the right type of basket strainer is not just about ticking boxes—it’s about aligning the strainer’s capabilities with the unique demands of your system. Each type of basket strainer has its own strengths, and understanding these nuances can save you from unnecessary headaches down the line. Let’s explore the key types and their specific applications.
Simplex Basket Strainers

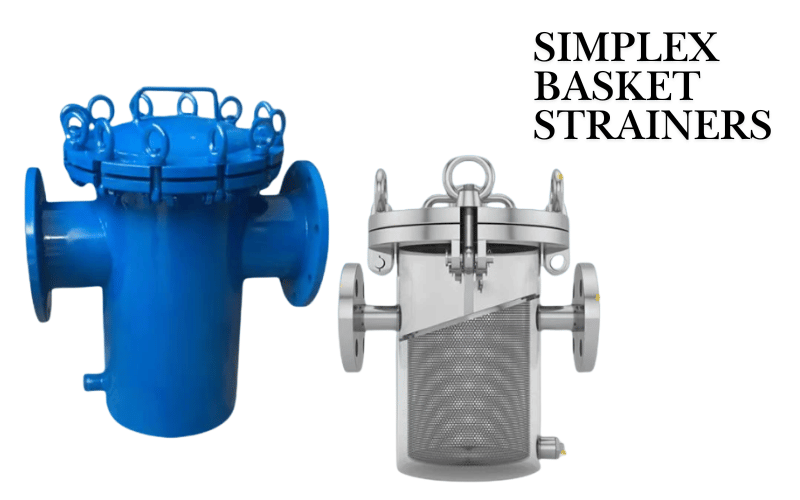

Simplex basket strainers are the workhorses of filtration systems, designed for applications where temporary shutdowns are acceptable. These strainers feature a single basket housed within a sturdy body, making them ideal for systems that don’t require continuous operation. For example, they’re commonly used in water treatment plants or smaller industrial setups where maintenance can be scheduled without disrupting critical processes.
Installation Tips for Simplex Strainers:
When installing a simplex strainer, always ensure it’s positioned in a way that allows easy access to the basket for cleaning or replacement. I’ve seen too many cases where strainers are tucked into tight corners, turning routine maintenance into a logistical nightmare. Additionally, consider installing isolation valves on either side of the strainer. This simple step allows you to isolate the strainer during maintenance without draining the entire system.
Duplex Basket Strainers

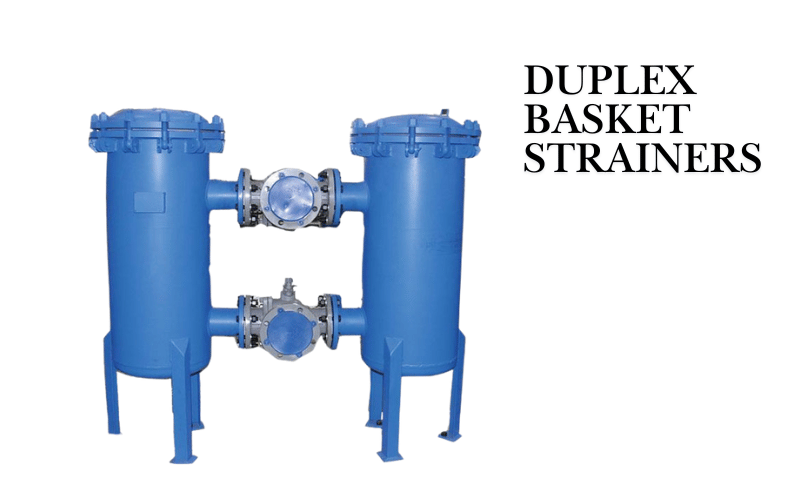

If your system demands uninterrupted operation, duplex basket strainers are your best ally. These strainers feature two separate baskets housed within a single unit, connected by a valve mechanism. When one basket becomes clogged, you can switch the flow to the other basket without shutting down the system. This makes them indispensable in industries like power generation or chemical processing, where downtime is not an option.
Valve Mechanisms and Their Importance:
The valve mechanism in a duplex strainer is the unsung hero that ensures seamless operation. Whether it’s a lever-operated or gear-operated valve, it must be robust and easy to operate. During installation, double-check the valve alignment to ensure smooth switching between baskets. A poorly aligned valve can lead to leaks or even system failure—a risk no engineer wants to take.
Specialty Strainers
For systems with unique challenges, specialty strainers step in to fill the gap. High-pressure basket strainers, for instance, are designed to withstand extreme pressures without compromising filtration efficiency. These are often used in oil and gas pipelines, where the stakes are high, and failure is not an option.
Jacketed Strainers for Temperature-Sensitive Fluids:
Jacketed strainers are a marvel of engineering, designed to handle fluids that need to be kept at a specific temperature. The jacket allows for the circulation of heating or cooling media, ensuring the fluid inside the strainer remains within the desired temperature range. These are particularly useful in industries like food processing or pharmaceuticals, where temperature control is critical to product quality.
By understanding the strengths and applications of each type of basket strainer, you can make informed decisions that align with your system’s needs. Whether it’s the simplicity of a simplex strainer, the reliability of a duplex design, or the specialized capabilities of a high-pressure or jacketed strainer, the right choice can significantly enhance your system’s performance.
Choosing the Right Basket Strainer
Selecting the right basket strainer is not just a technical decision—it’s a strategic one. The wrong choice can lead to inefficiencies, increased maintenance, or even system failure. To make the best decision, you need to evaluate your system’s specific needs and constraints. Let’s break this down into actionable steps.
Key Selection Criteria
When choosing a basket strainer, start by assessing the following critical factors:
- Flow Rate and Line Size:
The strainer must handle the system’s flow rate without creating bottlenecks. Match the strainer’s size to your pipeline diameter to ensure smooth fluid movement. For high-flow systems, opt for strainers with larger baskets to reduce the frequency of cleaning. - Particle Size and Debris Load:
Consider the size and volume of debris your system encounters. A fine mesh is ideal for capturing smaller particles but may require more frequent cleaning. For systems with heavy debris loads, choose a strainer with a larger basket capacity to minimize maintenance interruptions. - Material Compatibility:
The strainer’s material must withstand the fluid it filters. For corrosive fluids, stainless steel is a reliable choice due to its resistance to rust and chemical degradation. For less aggressive applications, materials like cast iron or bronze may suffice. Always verify the material’s compatibility with your fluid to avoid premature wear or failure.
Pressure Drop Considerations
Pressure drop is a critical factor that often gets overlooked. It refers to the reduction in pressure as fluid passes through the strainer. A high-pressure drop can strain your system, reducing efficiency and increasing energy costs.
- Why It Matters:
Excessive pressure drop can lead to pump overloading and reduced flow rates, compromising your system’s performance. It’s essential to strike a balance between effective filtration and minimal resistance. - Tips for Minimizing Pressure Loss:
Choose a strainer with a basket design that maximizes open area relative to the pipe’s cross-sectional area. This reduces resistance and allows fluid to flow more freely. Additionally, clean the basket regularly to prevent clogging, which can significantly increase pressure drop over time.
Comparison Table: Basket Strainer vs. Y-Strainer
To help you decide between a basket strainer and a Y-strainer, here’s a quick comparison of their key differences:
| Feature | Basket Strainer | Y-Strainer |
|---|---|---|
| Design | Cylindrical basket for debris collection. | Compact, Y-shaped body with a mesh screen. |
| Capacity | Larger debris-holding capacity. | Smaller capacity, better for light debris. |
| Applications | Ideal for high-flow systems and heavy debris. | Best for low-flow systems and fine particles. |
| Maintenance | Easier to clean due to removable basket. | Requires more effort to clean in-line. |
Basket strainers excel in applications with high flow rates and significant debris loads, while Y-strainers are better suited for systems requiring finer filtration with lighter debris. By understanding these distinctions, you can select the strainer that aligns perfectly with your operational needs.
Installation Best Practices
Proper installation of basket strainers is the foundation for their long-term performance and reliability. A poorly installed strainer can lead to leaks, inefficiencies, or even system failure. By following these best practices, you can ensure your strainer integrates seamlessly into your system and operates as intended.
Pre-Installation Checklist
Before you even unbox your basket strainer, take a moment to prepare your system. A little groundwork goes a long way in preventing issues down the line.
- Pipe Alignment and System Flushing:
Misaligned pipes can place undue stress on the strainer, leading to leaks or damage. Use a level and alignment tools to ensure the piping is straight and properly supported. Additionally, flush the system thoroughly to remove any debris or contaminants that could clog the strainer during initial operation. - Ensuring Proper Access and Clearance:
Always plan for maintenance when positioning the strainer. Ensure there’s enough clearance to remove the basket for cleaning or replacement. I’ve seen installations where strainers were crammed into tight spaces, making routine maintenance a frustrating ordeal. Save yourself the trouble by leaving adequate room around the unit.
Step-by-Step Installation
The installation process varies slightly depending on the type of strainer, but attention to detail is critical in both cases.
Simplex Strainers
- Orientation:
Install the strainer with the basket chamber oriented downward. This ensures debris collects in the basket and doesn’t obstruct the flow. Check the flow direction arrow on the strainer body to confirm proper alignment. - Gasketing:
Use high-quality gaskets to create a tight seal between the strainer and the flanges. Inspect the gaskets for any damage before installation, as even a small tear can lead to leaks. - Bolting:
Tighten the bolts in a crisscross pattern to distribute pressure evenly across the flange. Over-tightening can warp the flange, while under-tightening can result in leaks. Use a torque wrench to achieve the manufacturer’s recommended torque settings.
Duplex Strainers
- Valve Synchronization:
Ensure the valve mechanism is properly synchronized to allow seamless switching between baskets. Test the valve operation before connecting the strainer to the system to avoid surprises later. - Drain Connections:
Connect the drain ports to a safe disposal system to facilitate easy cleaning. This is especially important in systems handling hazardous or corrosive fluids. Double-check that the drain valves are closed before pressurizing the system.
Safety Tips
Safety should never be an afterthought during installation. A few precautions can protect both your equipment and your team.
- Pressure Testing Before Operation:
Once the strainer is installed, perform a hydrostatic pressure test to check for leaks. Gradually increase the pressure to the system’s operating level while monitoring for any signs of leakage. Address any issues before putting the system into full operation. - Handling Heavy Units Safely:
Basket strainers, especially larger models, can be heavy and unwieldy. Use proper lifting equipment, such as slings or hoists, to position the strainer. Never attempt to lift or maneuver a heavy unit manually, as this can lead to injuries or damage to the equipment.
By following these installation best practices, you set the stage for your basket strainer to perform efficiently and reliably. A well-installed strainer not only protects your system but also minimizes maintenance headaches, allowing you to focus on what truly matters—keeping your operations running smoothly.
Maintenance and Troubleshooting
A well-maintained basket strainer is like a reliable partner in your system—quietly doing its job without demanding constant attention. However, neglecting maintenance or ignoring early warning signs can lead to inefficiencies or even system failures. Let’s dive into actionable strategies for keeping your basket strainers in top shape and addressing common issues when they arise.
Routine Cleaning and Maintenance
Regular cleaning and monitoring are the cornerstones of effective basket strainer maintenance. A proactive approach not only ensures optimal performance but also prevents costly downtime.
- Monitoring Pressure Differential:
Install a differential pressure gauge across the strainer to monitor the pressure drop. A rising pressure differential indicates that the basket is becoming clogged. Cleaning frequency depends on your system’s debris load, but as a rule of thumb, clean the basket when the pressure drop exceeds 5-7 psi above the baseline. - Cleaning Steps for Simplex and Duplex Strainers:
For simplex strainers, isolate the strainer by closing the upstream and downstream valves. Remove the cover, extract the basket, and clean it thoroughly using a brush or compressed air. For duplex strainers, switch the flow to the alternate basket before cleaning. This allows you to clean one basket without interrupting system operation. Always inspect the basket for damage during cleaning and replace it if necessary.
Extending Strainer Lifespan
A basket strainer is an investment, and like any investment, it requires care to maximize its lifespan. Small, consistent efforts can make a big difference.
- Proper Basket Inspection and Replacement:
During each cleaning, inspect the basket for signs of wear, such as holes, tears, or deformation. A damaged basket compromises filtration efficiency and can allow debris to pass through, potentially damaging downstream equipment. Replace the basket immediately if you notice any defects. - Avoiding Common Mistakes:
One of the most frequent oversights I’ve encountered is neglecting pressure monitoring. Operating a strainer with a clogged basket increases pressure drop, which can strain pumps and other components. Another common mistake is using the wrong cleaning tools—avoid abrasive materials that can damage the basket’s surface.
Troubleshooting Common Issues
Even with diligent maintenance, issues can arise. Knowing how to diagnose and address them can save you time and frustration.
High Pressure Drop: Causes and Solutions
A high-pressure drop is often a sign of a clogged basket, but it can also indicate other issues. Check the basket for debris and clean it if necessary. If the basket is clean but the pressure drop persists, inspect the strainer for blockages in the inlet or outlet. Additionally, ensure the basket’s mesh size is appropriate for your application—an overly fine mesh can restrict flow unnecessarily.
Leaking Covers: Diagnosing Gasket Problems
Leaking covers are usually caused by damaged or improperly seated gaskets. Remove the gasket and inspect it for cracks, tears, or deformation. If the gasket is damaged, replace it with one that matches the manufacturer’s specifications. When reinstalling the gasket, ensure it is seated evenly to create a proper seal. Tighten the cover bolts in a crisscross pattern to distribute pressure evenly.
Corrosion: Addressing Material Incompatibility
Corrosion is a clear sign that the strainer’s material is not compatible with the fluid it’s filtering. If you notice pitting, rust, or other signs of corrosion, consider replacing the strainer with one made from a more suitable material, such as stainless steel for corrosive fluids. In the meantime, inspect the system for any leaks or contamination that could exacerbate the issue.
By staying vigilant with maintenance and addressing issues promptly, you can ensure your basket strainer remains a dependable part of your system. A little attention goes a long way in keeping your operations efficient and trouble-free.
Innovations and Future Trends
The world of industrial filtration is evolving rapidly, and basket strainers are no exception. As systems become more complex and demands for efficiency and sustainability grow, innovations in strainer technology are stepping up to meet these challenges. Let’s explore the advancements shaping the future of basket strainers and the trends that are redefining their role in industrial systems.
Advancements in Basket Strainer Technology
Modern basket strainers are no longer just static components—they’re becoming smarter, more efficient, and better equipped to handle extreme conditions. These advancements are transforming how we think about filtration.
- Self-Cleaning Mechanisms and Automation:
One of the most exciting developments is the integration of self-cleaning mechanisms. These strainers use automated backflushing or mechanical scrapers to remove debris from the basket without requiring manual intervention. This not only reduces maintenance downtime but also ensures consistent filtration performance. For systems with high debris loads, self-cleaning strainers are a game-changer, allowing operators to focus on other critical tasks. - Enhanced Materials for Extreme Conditions:
Advances in material science are enabling the development of strainers that can withstand harsher environments. For example, high-performance alloys and composite materials are being used to create strainers that resist corrosion, high pressures, and extreme temperatures. These materials are particularly valuable in industries like oil and gas, where standard strainers might fail under demanding conditions. When selecting a strainer for such applications, look for materials specifically engineered for durability and compatibility with your system’s fluids.
Emerging Trends
Beyond technological advancements, broader trends are shaping the future of basket strainers. These trends reflect the growing emphasis on sustainability, efficiency, and connectivity in industrial operations.
- Sustainability in Filtration Systems:
As industries strive to reduce their environmental impact, filtration systems are being designed with sustainability in mind. Basket strainers are now being optimized to minimize waste, such as by using reusable and recyclable baskets. Additionally, energy-efficient designs are reducing the overall carbon footprint of filtration systems. For example, low-pressure-drop designs not only improve system efficiency but also reduce energy consumption, aligning with sustainability goals. - Integration with IoT for Real-Time Monitoring:
The rise of the Internet of Things (IoT) is revolutionizing how we monitor and manage filtration systems. IoT-enabled basket strainers are equipped with sensors that provide real-time data on parameters like pressure differential, flow rate, and basket condition. This data can be accessed remotely, allowing operators to identify issues before they escalate. Imagine receiving an alert on your phone when a basket needs cleaning or replacement—this level of connectivity is becoming a reality and is set to redefine maintenance practices.
By embracing these innovations and trends, basket strainers are evolving from simple filtration devices into sophisticated components of modern industrial systems. Whether it’s through automation, advanced materials, or IoT integration, the future of basket strainers is bright, promising greater efficiency, reliability, and sustainability for industries worldwide.
Real-World Applications and Case Studies
Basket strainers are more than just components in a system—they’re problem solvers, quietly tackling challenges across industries. By examining real-world applications, we can uncover valuable lessons and practical insights that help optimize their performance. Let’s dive into some success stories and actionable advice from the field.
Examples of Success
Basket strainers have proven their worth in countless scenarios, from protecting sensitive equipment to ensuring product quality. Here are a few standout examples:
- Food and Beverage Industry: Ensuring Product Purity
A juice manufacturing plant faced recurring issues with pulp and seeds clogging their downstream equipment, leading to frequent shutdowns and product contamination. By installing a simplex basket strainer with a fine mesh, they effectively captured these particles before they could cause problems. The result? A 30% reduction in downtime and a noticeable improvement in product consistency. The key takeaway here is to match the mesh size to the specific debris in your system—too coarse, and contaminants slip through; too fine, and you risk unnecessary pressure drops. - Power Generation: Protecting Cooling Systems
In a thermal power plant, debris in the cooling water system was causing significant wear on pumps and heat exchangers. A duplex basket strainer was installed to allow continuous operation while one basket was cleaned. The plant also implemented a regular cleaning schedule based on pressure differential readings. This approach not only extended the lifespan of their equipment but also improved overall efficiency. The lesson? For critical systems, duplex strainers and proactive maintenance are non-negotiable. - Oil and Gas: Handling Harsh Conditions
An offshore drilling operation required a strainer that could withstand high pressures and corrosive fluids. A high-pressure basket strainer made from duplex stainless steel was selected for its durability and resistance to corrosion. The strainer performed flawlessly, even in the harsh marine environment, protecting the pipeline from debris and ensuring uninterrupted flow. This case highlights the importance of material selection in challenging applications—cutting corners here can lead to costly failures.
Practical Insights
Beyond these success stories, there are universal best practices that can help you get the most out of your basket strainers. Here are some tips from industry experts:
- Optimize Cleaning Schedules:
Don’t wait for a complete clog to clean your basket. Use pressure differential readings to determine the optimal cleaning frequency. This not only prevents unnecessary strain on your system but also extends the life of your basket. - Invest in Quality Gaskets:
A leaking strainer cover can compromise the entire system. Always use high-quality gaskets that are compatible with your fluid and operating conditions. Inspect them regularly for wear and replace them as needed. - Train Your Team:
Even the best equipment can fail if it’s not used correctly. Ensure your team understands how to install, clean, and maintain the strainers. Simple steps, like tightening bolts evenly or checking flow direction, can make a big difference. - Leverage Technology:
If your system is critical or complex, consider IoT-enabled strainers for real-time monitoring. These devices provide valuable data that can help you identify issues early and optimize performance.
By learning from real-world applications and applying these practical insights, you can ensure your basket strainers deliver maximum value. Whether you’re protecting sensitive equipment or maintaining system efficiency, the right approach can make all the difference.
FAQs
Q: What is the difference between a basket strainer and a Y-strainer?
A: Basket strainers and Y-strainers differ in design, capacity, and applications. Basket strainers use a cylindrical basket to capture debris and are ideal for high-flow systems or applications with heavy debris loads. They offer a larger debris-holding capacity and are easier to clean due to their removable baskets. Y-strainers, on the other hand, have a compact, Y-shaped design and are better suited for low-flow systems or applications requiring finer filtration. However, their smaller capacity means they need more frequent cleaning and are less effective for heavy debris.
Q: How often should a basket strainer be cleaned?
A: The cleaning frequency depends on your system’s debris load and operating conditions. Monitor the pressure differential across the strainer using a gauge. When the pressure drop exceeds 5-7 psi above the baseline, it’s time to clean the basket. Regular cleaning prevents clogs, reduces strain on the system, and ensures optimal performance.
Q: Can basket strainers handle high-viscosity fluids?
A: Yes, basket strainers can handle high-viscosity fluids, but you need to choose the right design and material. For thick fluids, select a strainer with a larger open area ratio to minimize pressure drop. Additionally, ensure the basket material is compatible with the fluid to prevent damage or corrosion. Consulting the manufacturer’s specifications can help you make the best choice.
Q: What are the signs of a clogged basket strainer?
A: A clogged basket strainer often causes a noticeable increase in pressure drop across the strainer. You may also observe reduced flow rates or unusual noises from the system. In severe cases, the system may experience pump strain or overheating. Regularly monitoring pressure differential and inspecting the basket can help you catch clogs early.
Q: Are there automated cleaning systems for basket strainers?
A: Yes, automated cleaning systems, such as self-cleaning basket strainers, are available. These systems use mechanisms like backflushing or mechanical scrapers to remove debris without manual intervention. They are especially useful in systems with high debris loads or where frequent cleaning is impractical. Automated systems save time, reduce maintenance efforts, and ensure consistent filtration performance.
Conclusion
Basket strainers play a vital role in protecting equipment, improving efficiency, and reducing downtime across various industries. Selecting the right strainer involves evaluating factors like flow rate, debris load, and material compatibility. Proper installation, regular maintenance, and troubleshooting ensure these strainers perform at their best and extend their lifespan. By embracing advancements like self-cleaning mechanisms and IoT integration, you can further optimize your filtration systems.
If you’re ready to explore advanced filtration solutions or need expert guidance tailored to your system, don’t hesitate to reach out. Let’s work together to keep your operations running smoothly and efficiently.
