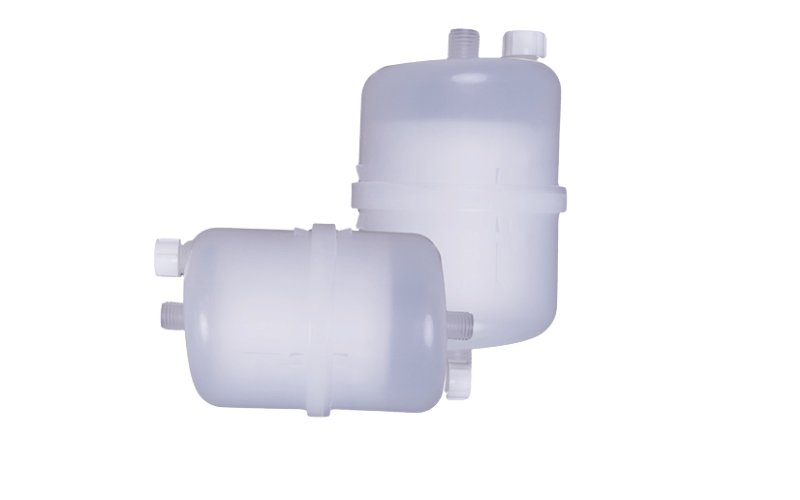

Capsule Filter
Efficient Filtration | Long Service Life | Customizable Options
Our Capsule Filters, also known as integrated filters, are designed to provide efficient and reliable filtration for a wide range of applications. Featuring a folded imported filter membrane, they offer a large filtration surface area, making them ideal for processing larger solution volumes. The outer casing, constructed from high-quality polypropylene, is free from adhesives and chemicals, ensuring that your samples remain uncontaminated.
We offer Capsule Filters in various pore sizes to accommodate specific filtration needs. These filters are also autoclave-compatible, allowing for high-pressure sterilization to enhance safety and performance. For medium and small-scale filtration, we manufacture disposable Capsule Filters, providing an economical and effective solution. Whether your application involves sterilization filtration, particle control, aeration, or pre-filtration, our Capsule Filters deliver dependable results. With competitive pricing and superior quality, we ensure that each product meets rigorous scientific validation for filtration performance.
Product Advantages
- A variety of filter media and pore sizes are available for selection.
- Manufactured in a cleanroom environment and maintained in a clean state.
- Complete biological safety and non-toxicity.
- Multiple capsule lengths are available, each with different effective filtration areas, tailored to your flow rate and processing volume requirements.
Technical Specifications
| Options | Parameter |
|---|---|
| Filter media: Use different membrane according to requirements. | |
| Filter Media | Diversion Layer: PP |
| Shell: PP | |
| Center Rod: PP Or SS | |
| PP:0.1micron,0.22micron,0.45micron,1micron,3,5micron,10micron,20micron,30micron,50micron | |
| PES: 0.1micron,0.22micron,0.45micron,1micron | |
| PTFE(Liquid): 0.1micron,0.22micron,0.45micron | |
| PTFE(Gas): 0.01micron,0.02micron | |
| Nylon6: 0.1micron,0.2micron,0.45micron,1micron | |
| Filter Precision | GF: 0.45micron,1micron,3,5micron,10micron,20micron |
Flow Characteristics - Capsule Filter
CAP Capsule(L=114.5mm) with melt-blown filter
CAP Capsule(L=213.5mm) with melt-blown filter
Flow Characteristics - Capsule Filter
CAP Capsule (L=114.5mm) with membrane-pleated filter
CAP Capsule (L=213.5mm) with membrane-pleated filter
Applications of meltblown filter cartridges
Our Capsule Filters are engineered to serve a broad array of industries and processes. They are commonly used in:
- Pharmaceutical and Chemical Industries: Ensuring sterility and purity in production processes.
- Electronics Industry: Effective filtration for critical production elements in electronics manufacturing.
- Biotechnology: Supporting advanced filtration needs in biotechnological applications.
- Cosmetics, Food, and Beverage Filtration: Providing clean and contaminant-free solutions.
- Ink and Gas Filtration: Delivering precision filtration for ink systems and gas streams.
- Developer Solution Filtration: Maintaining clarity and integrity in developer fluids.
- Optical Storage Industry: Filtering dyes for use in CD-R and DVD-R production.
- LCD Production: Ensuring contaminants are removed from photoresist solutions for LCD manufacturing.
What is a Capsule Filter?
A: A capsule filter is a self-contained, disposable filtration unit that combines the filter media and casing into a single, sealed design. Unlike traditional filters that require separate housings, capsule filters eliminate the need for assembly and disassembly, ensuring contamination-free filtration. They are widely used in industries such as pharmaceuticals, electronics, and food and beverage, where sterility, compactness, and minimal maintenance are critical.
How Does a Capsule Filter Work?
A: Capsule filters use a folded filter membrane housed in a sealed polypropylene casing to provide efficient filtration. The folding design increases the surface area, allowing for higher fluid volumes and consistent performance.
Filtration Process:
- Fluid Entry: Liquid or gas enters through the inlet, distributing evenly across the membrane.
- Particle Capture: The filter media traps particles, contaminants, or microorganisms based on its pore size.
- Filtered Output: The purified fluid exits through the outlet, ready for use.
Capsule filters are suitable for a range of applications, from coarse pre-filtration to critical sterilization, delivering reliable results with minimal user input.
What are the Main Components of a Capsule Filter?
A: Capsule filters are designed with precision to ensure durability and performance. Key components include:
Filter Media:
- Made from materials like polypropylene, PES (polyethersulfone), PTFE, or nylon, chosen for specific filtration needs.
- Scientifically validated for reliability and effectiveness.
Outer Housing:
- Durable polypropylene casing, free from adhesives or chemicals, ensuring sterility and structural integrity.
Lengths and Connection Ports:
- Available in various lengths and configurations to support different flow rates and system sizes.
- Compatible with industry-standard fittings for easy integration.
All components are manufactured in cleanroom environments to guarantee sterility, making capsule filters ideal for sensitive applications.
Why Choose a Capsule Filter Over Traditional Filters?
A: Capsule filters offer several advantages over traditional filtration systems:
Ease of Use:
- Pre-assembled and ready to use, reducing setup time and potential errors.
Minimized Contamination Risks:
- Sealed casing and sterilized components ensure contamination-free filtration.
Compact Design:
- Space-saving structure, ideal for small workspaces or mobile systems.
Disposable Convenience:
- Single-use design eliminates cleaning and maintenance, improving operational efficiency.
Customizability:
- Available with various media types, pore sizes, and lengths to meet specific application needs.
Cost-Effectiveness:
- Combines housing and media, reducing costs for short-term or single-use applications compared to reusable systems.
By choosing capsule filters, you gain a filtration solution that is efficient, safe, and tailored to modern industrial and commercial demands.
Why Choose Our Capsule Filters?
Our capsule filters are designed to deliver superior performance, sterility, and convenience. Whether you need filtration for critical sterilization or general particle removal, our customizable options ensure the perfect fit for your application.
Contact us today to learn more about our capsule filters and how they can enhance your filtration system.

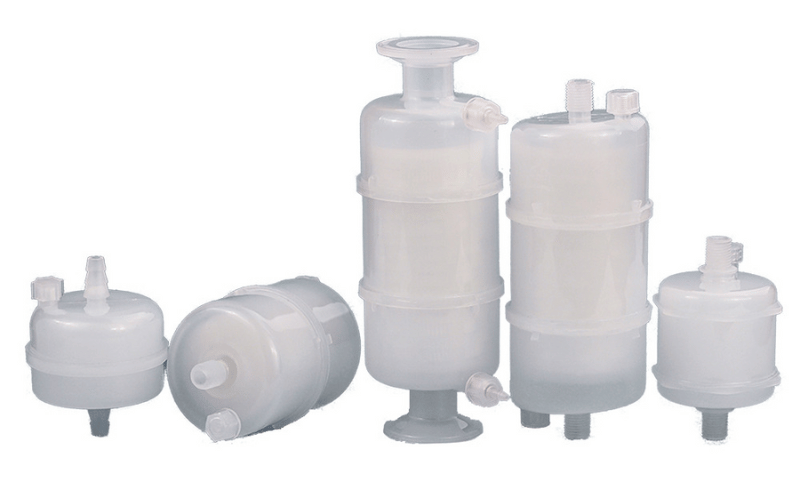

What are the Different Types of Capsule Filters?
We offer a wide range of capsule filters designed to meet the diverse needs of various industries. Each type is tailored to specific applications, ensuring efficient and reliable filtration under varying conditions. Here’s an overview of the primary types of capsule filters:
PES (Polyethersulfone) Capsule Filters
- Key Features: High flow rates, low protein binding, and exceptional chemical compatibility.
- Applications: Ideal for sterile filtration in pharmaceuticals, biotechnology, and diagnostics.
PTFE Capsule Filters
- Key Features: Excellent resistance to aggressive chemicals, available in hydrophobic or hydrophilic configurations.
- Applications: Suitable for gas filtration, venting, and filtering nonpolar solvents.
Nylon Capsule Filters
- Key Features: High mechanical strength and compatibility with organic solvents, oils, and aqueous solutions.
- Applications: Used in industrial processes, chemical filtration, and liquid clarification.
Polypropylene Capsule Filters
- Key Features: Broad chemical compatibility and cost-effectiveness.
- Applications: Perfect for general-purpose filtration, pre-filtration, and industrial systems.
Additionally, our capsule filters are available in various lengths, filtration areas, and connection configurations, ensuring you can find the perfect fit for your specific process requirements.
Why Choose PES Capsule Filters?
PES capsule filters are among the most popular options for critical applications requiring high performance and reliability. Here’s why they stand out:
- High Flow Rate: Delivers superior throughput, reducing downtime in demanding environments.
- Low Protein Binding: Minimizes protein retention, preserving biological integrity in pharmaceutical and diagnostic applications.
- Chemical Compatibility: Resistant to a wide range of aqueous solutions, including strong acids and bases.
- Sterilization Capability: Supports autoclaving and sterilization processes, meeting stringent safety standards.
PES capsule filters are a versatile and high-performing solution for advanced filtration systems.
Hydrophobic vs. Hydrophilic Capsule Filters
Understanding the difference between hydrophobic and hydrophilic capsule filters is essential for selecting the right option for your application:
Hydrophobic Capsule Filters:
- Properties: Repel water but allow air and non-aqueous liquids to pass through.
- Applications: Ideal for gas filtration, venting, and filtering nonpolar solvents.
- Material Example: PTFE membranes are commonly used for their strong water-repelling properties.
Hydrophilic Capsule Filters:
- Properties: Absorb water, making them effective for aqueous solution filtration.
- Applications: Suitable for liquid sterilization, particle removal, and general-purpose liquid filtration.
- Material Example: PES and Nylon membranes are preferred for their excellent wettability.
By selecting the correct filter type, you can ensure optimal performance for both liquid and gas filtration processes.
The Importance of Pore Size in Capsule Filters
Pore size is a critical factor in determining the filtration efficiency of a capsule filter. It defines the size of particles, microorganisms, or contaminants that the filter can retain.
Pore Size and Applications:
Fine Filtration:
- Pore Size: 0.1–0.22 microns.
- Applications: Sterile filtration, removal of bacteria, and fine particles (e.g., pharmaceutical manufacturing).
General Filtration:
- Pore Size: 0.45–1 micron.
- Applications: Clarification and particle reduction for improved product quality.
Coarse Filtration:
- Pore Size: 5–50 microns.
- Applications: Removing visible debris or as pre-filters to protect downstream systems (e.g., wastewater treatment).
Examples Based on Pore Size:
- 0.22 Micron PES Filters: For sterile filtration in pharmaceutical manufacturing.
- 10 Micron Nylon Filters: For pre-filtration in industrial and chemical processes.
- 50 Micron Polypropylene Filters: For coarse particle removal in wastewater or large-scale fluid systems.
By offering precise control over filtration levels, our capsule filters help optimize system performance while maintaining the integrity of your final product.
Conclusion
Capsule filters are a versatile and efficient solution for a wide range of filtration needs. Whether you require sterile filtration, gas filtration, or pre-filtration, our diverse range of capsule filters ensures you’ll find the perfect match for your application.
Contact us today to learn more about our capsule filters and how they can enhance your filtration system.
How to Select the Right Capsule Filter for Your Application?
Choosing the right capsule filter is essential for achieving optimal filtration performance while ensuring compatibility with your specific application. With our extensive range of capsule filters, designed for everything from particle removal to sterility assurance, you can find a solution that meets your operational and safety standards. Here’s how to make the right choice:
Key Factors to Consider for Effective Filtration
Filtration Goals
- Define the purpose of filtration: Are you aiming for sterilization, particle reduction, or pre-filtration?
- Your end goal will determine the appropriate filter media and pore size.
Fluid Properties
- Consider the flow rate, viscosity, and temperature of the fluid being filtered.
- Ensure the filter can handle these operational demands without compromising performance.
Contaminant Characteristics
- Evaluate the type, size, and volume of contaminants.
- For high sediment loads, choose filters with larger pore sizes or higher dirt-holding capacity to prevent clogging and frequent replacements.
Micron Ratings
- The micron rating determines the smallest particle size the filter can capture.
- For fine filtration (e.g., pharmaceuticals), use filters with 0.1–0.22 microns. For less precise filtration, larger pore sizes may suffice.
By addressing these factors, you can ensure your capsule filter operates efficiently and reduces operational inefficiencies.
The Role of Chemical Compatibility in Filter Selection
Chemical compatibility is critical when working with solutions that could degrade or damage filter materials. Choosing a chemically resistant filter ensures safety, durability, and consistent performance.
Material Selection:
- PES Filters: Best for aqueous solutions and mild acids.
- PTFE Filters: Excellent for aggressive solvents and gases.
- Polypropylene Filters: Broad compatibility with water-based solutions and a range of chemicals.
Why Compatibility Matters:
Using an incompatible filter material can lead to:
- Filter breakdown, risking contamination of the processed solution.
- Reduced filter integrity in high-temperature or chemically aggressive environments.
- Increased replacement frequency due to premature degradation.
To avoid these issues, our capsule filters undergo rigorous chemical compatibility testing, ensuring you can select the most suitable option for your specific fluid characteristics.
Why Filtration Area Matters in Capsule Filters
The filtration area is a key factor in determining the efficiency and capacity of a capsule filter. A larger filtration area offers several advantages:
- Higher Dirt-Holding Capacity: Captures more contaminants before reaching its limit, ideal for systems with heavy sediment loads.
- Improved Flow Rates: Reduces flow resistance, allowing for smoother and more consistent fluid movement at higher volumes.
- Extended Service Life: Spreads the filtration load across a greater surface, reducing the need for frequent replacements and ensuring uninterrupted workflows.
Tailored Options for Your Needs:
We offer capsule filters in various sizes and filtration areas to suit different applications:
- For high-throughput processes, choose extended capsules with larger surface areas.
- For smaller systems or batch operations, compact options provide the necessary performance without excess capacity.
By aligning the filtration area with your system’s flow rate, contamination levels, and operational requirements, you can maximize efficiency and prolong the lifespan of your filtration equipment.
Conclusion
Selecting the right capsule filter doesn’t have to be complicated. By considering factors like filtration goals, fluid properties, chemical compatibility, and filtration area, you can ensure optimal performance and efficiency for your application.
Need help? Our technical team is here to assist you in finding the perfect capsule filter for your needs. Contact us today to discuss your requirements in detail.
How to Maintain and Care for Capsule Filters?
Proper maintenance of capsule filters is essential to ensure their longevity and consistent performance. While our capsule filters are designed for reliable and efficient filtration, implementing a regular maintenance routine can help prevent downtime and maintain operational quality. Here’s how to care for your capsule filters effectively:
General Maintenance Guidelines
Monitor Operational Conditions
- Regularly check pressure differentials, flow rates, and fluid compatibility to ensure the filter is operating within its specified parameters.
- Address any signs of overloading or premature wear promptly.
Clean Reusable Filters
- For reusable capsule filters, follow the recommended cleaning protocols using compatible cleaning agents.
- Rinse the filter housing thoroughly to remove any residual cleaning solution.
Store Filters Properly
- Keep unused or spare capsule filters in a clean, dry, and controlled environment to maintain sterility and functional integrity.
- Avoid exposure to direct sunlight or extreme temperatures.
By following these steps, you can maximize the performance and lifespan of your capsule filters.
Best Practices for Sterilizing Capsule Filters
Sterilization is critical for applications involving sensitive materials, such as pharmaceuticals or food products. Proper sterilization ensures sterility without compromising the filter’s functionality.
Common Sterilization Methods:
- Autoclaving: Many capsule filters are compatible with autoclave systems. Use the recommended settings (e.g., 121°C for 30 minutes) as specified in the product guidelines.
- Chemical Sterilization: For filters incompatible with high temperatures, use chemical sterilants like ethanol or hydrogen peroxide. Rinse thoroughly to remove any residues.
- Steam Sterilization (SIP): Capsule filters designed for steam-in-place (SIP) sterilization simplify the process. Follow the recommended steam temperature and duration to avoid damage.
Tips to Prevent Sterilization Damage:
- Verify the filter’s maximum temperature and pressure limits before sterilization.
- Avoid prolonged exposure to sterilization conditions to preserve the filter’s integrity.
- Inspect filters for visible wear or damage after sterilization.
These practices help maintain sterility while extending the functional lifespan of your filters.
When to Replace Your Capsule Filter
The replacement frequency of capsule filters depends on factors like application type, fluid characteristics, and contaminant load. While general guidelines suggest replacing filters every 6 to 12 months, specific conditions may require more frequent changes.
How to Determine Replacement Intervals:
- Application Type:
- For critical applications (e.g., pharmaceuticals), replace filters after each use to ensure sterility.
- System Performance Monitoring:
- Track pressure drops and flow rates. A significant pressure increase or reduced flow indicates the filter is nearing its capacity.
- Manufacturer Recommendations:
- Follow the replacement schedules provided in the product specifications for optimal performance.
Timely replacement ensures uninterrupted operation and prevents contamination risks.
Signs Your Capsule Filter Needs Maintenance
Recognizing early signs of wear or inefficiency can prevent system breakdowns and maintain operational quality.
Key Indicators of Maintenance Needs:
- Pressure Drop: A noticeable increase in pressure differential suggests the filter may be clogged or overloaded.
- Decreased Flow Rates: Reduced output flow indicates restricted flow due to contaminants saturating the filter media.
- Visible Damage: Cracks, warping, or other signs of wear in the filter housing or connections can compromise performance.
- Reduced Filtration Quality: If particles or contaminants begin to pass through the filter, it’s time for maintenance or replacement.
Preventative Actions:
- Regularly monitor system readings and conduct visual inspections.
- Replace or service filters at the first sign of compromised performance to avoid further issues.
By staying proactive, you can ensure your capsule filters deliver consistent, high-quality performance.
Conclusion
Proper maintenance and timely replacement of capsule filters are essential for ensuring reliable filtration and operational efficiency. By following these guidelines, you can extend the lifespan of your filters and maintain the integrity of your processes.
Need assistance? Our technical support team is here to help with any specific concerns or guidance on maintaining your capsule filters. Contact us today for expert advice tailored to your needs.
Are There Any Limitations or Considerations with Capsule Filters?
While capsule filters offer numerous advantages, it’s important to understand their limitations and application parameters to ensure optimal performance. Here are some key considerations:
Limited Reusability
- Many capsule filters are designed for single-use, especially in industries requiring strict sterility.
- While this reduces cleaning and maintenance, it may increase costs for high-frequency usage.
Pressure Sensitivity
- Operating beyond the recommended pressure range can lead to performance degradation or structural stress.
- Always adhere to the specified pressure limits to maintain consistent filtration outcomes.
Material Compatibility
- Not all filter materials are suitable for every chemical or temperature environment.
- Aggressive solvents, extreme pH levels, or high temperatures may degrade certain materials.
Fixed Design
- The integrated structure of capsule filters limits flexibility for modifications or customizations after manufacturing.
By understanding these limitations, you can select the right filtration solution tailored to your specific needs and operational conditions.
Understanding Extractables in Capsule Filters
Extractables are chemical compounds that may leach from filter materials into the fluid being processed, especially under certain operating conditions. Proper selection and testing can help mitigate this risk.
Sources of Extractables:
- Filter Media: Materials like polypropylene, PES, or PTFE may release compounds when exposed to incompatible solvents or high temperatures.
- Sealing Components: Adhesives or welds, while carefully tested, could contribute to extractables under extreme conditions.
- Housing Material: Polypropylene housings may leach compounds in the presence of aggressive chemicals or elevated temperatures.
Best Practices to Minimize Extractables:
- Choose filters validated for low extractable levels in your application.
- Pre-flush filters with compatible solutions to remove potential leachables.
- Ensure compliance with regulatory standards like USP Class VI or FDA requirements for critical applications.
Our capsule filters undergo rigorous quality control to ensure minimal extractables, preserving the purity of your process fluids.
How Pressure and Flow Rate Impact Capsule Filter Performance
Pressure and flow rate are critical parameters that directly affect the efficiency and durability of capsule filters. Exceeding recommended limits can compromise filtration results or damage the filter.
Pressure Considerations:
- Maximum Operating Pressure: Each filter has a specified pressure limit. Exceeding this can cause structural deformation or rupture.
- Pressure Drops: A sudden or excessive pressure drop may indicate clogging or saturation, signaling the need for maintenance or replacement.
Flow Rate Effects:
- Optimal Flow Rates: Staying within the recommended range ensures effective contaminant capture and extends the filter’s lifespan.
- High Flow Rates: Excessive flow velocities can force contaminants through the filter media, reducing efficiency and potentially damaging downstream components.
By monitoring pressure and flow rate, you can maintain consistent performance and prevent equipment failure.
The Role of Prefiltration in Capsule Filter Systems
Prefiltration is a crucial step in extending the lifespan and enhancing the efficiency of capsule filters, especially in systems with high impurity loads.
Benefits of Prefiltration:
- Reduced Filter Load: Prefilters capture larger particles, reducing the workload on the capsule filter and preventing clogging.
- Cost Efficiency: Using a lower-cost prefilter extends the operational lifespan of the more specialized capsule filter, lowering overall expenses.
- Enhanced Performance: Prefiltration minimizes the risk of early saturation, ensuring the capsule filter operates at peak efficiency.
Recommended Prefilter Types:
- Sediment Prefilters: Ideal for removing visible debris or turbidity in liquid processes.
- Activated Carbon Prefilters: Effective for initial organic removal or chlorine reduction.
Integrating prefiltration into your system ensures optimal performance and cost-saving benefits for your capsule filter setup.
Conclusion
While capsule filters are highly efficient and convenient, understanding their limitations and operational parameters is key to maximizing their performance. By considering factors like pressure, flow rate, material compatibility, and the role of prefiltration, you can ensure reliable and long-lasting filtration results.
Need help? Our technical team is here to provide personalized guidance and support. Contact us today to find the perfect capsule filter solution for your application.
Capsule Filter FAQs
Q: What is a capsule filter and how does it work?
A capsule filter is a compact filtration device that integrates the filter media and housing into a single unit. It works by allowing liquids or gases to flow through the filter media, where contaminants are captured based on size, leaving purified fluid or air as the output. Capsule filters are pre-assembled and ready to use, making them convenient for various applications.
Q: What are the advantages of using hydrophilic PES filters in capsule filters?
Hydrophilic PES (polyethersulfone) filters provide broad chemical compatibility and excellent micro or sub-micron filtration. They are particularly effective for liquid filtration, offering high flow rates, low protein binding, and reliable performance in applications requiring sterile environments.
Q: Can capsule filters be used for air filtration?
Yes, capsule filters are available for both liquid and gas applications, including air filtration. They are designed to efficiently remove particulates or microorganisms from air streams, ensuring clean and contaminant-free air for industrial or laboratory purposes.
Q: What micron ratings are commonly available for capsule filters?
Capsule filters are available in a range of micron ratings, such as 0.1 µm, 0.22 µm, 0.45 µm, 1 µm, and larger. The micron rating indicates the smallest particle size the filter can trap, with lower ratings ensuring finer filtration.
Q: How are capsule filters integrity tested?
Each capsule filter undergoes integrity testing as part of quality assurance. This testing ensures the filter meets its specifications for retaining contaminants and maintaining reliable performance. Common methods include bubble point tests and pressure decay tests.
Q: What materials are used in the construction of capsule filters?
Capsule filters are typically constructed from polypropylene for the housing and include filter media such as polyethersulfone (PES), polytetrafluoroethylene (PTFE), microfiber, or glass fiber. These materials are selected for their chemical resistance, durability, and filtration performance.
Q: What is the difference between prefilters and membrane filters in capsule filters?
Prefilters are designed to capture larger particles and protect the more delicate membrane filters, which handle finer filtration. For instance, prefilters may handle coarse debris, while membrane filters, with ratings such as 0.2 µm, remove finer particles or microorganisms.
Q: Are capsule filters autoclavable?
Some capsule filters are autoclavable for sterilization and reuse. However, not all models are compatible with autoclaving, so it is essential to check the product specifications beforehand to confirm their suitability for high-temperature sterilization.
Q: What applications are suitable for single-use capsule filters?
Single-use capsule filters are ideal for applications requiring sterility and minimizing risk of contamination, such as pharmaceutical manufacturing, biotechnology processing, and laboratory filtration. Their disposable design ensures maximum safety and convenience in sterile environments.
