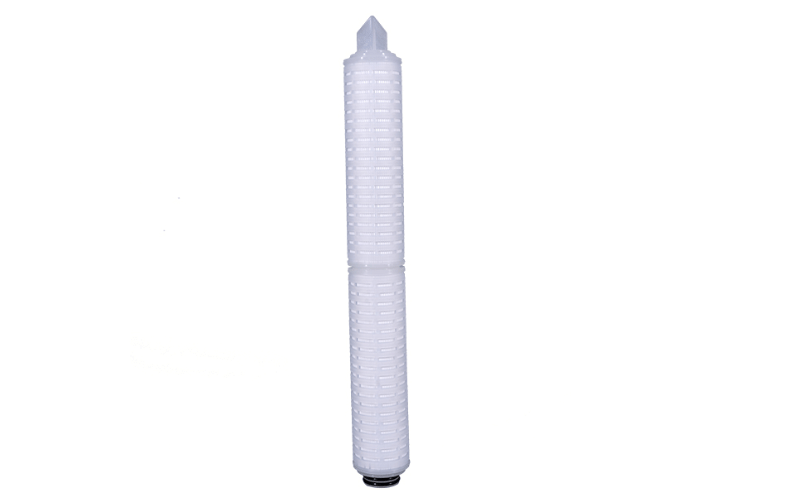

PVDF Pleated Filter Cartridge
Efficient Filtration | Long Service Life | Customizable Options
The PVDF Pleated Filter Cartridge, crafted from durable polyvinylidene fluoride (PVDF), is designed to precisely filter and separate particles and bacteria from fluids. Known for its exceptional heat, oxidation, and corrosion resistance, it is ideal for diverse industrial applications requiring high-performance filtration.
Material Composition and Design
The PVDF Pleated Filter Cartridge is engineered for top-tier performance:
- Filter Membrane: PVDF membrane ensures heat resistance, low extractables, and chemical compatibility, effectively removing fine particles and bacteria.
- Support Layers: Polypropylene layers provide structural integrity and durability under high pressure.
- End Caps & Outer Cage: Made of polypropylene for robustness and fluid compatibility.
- Sealing: Thermally bonded for reliability, eliminating adhesives and potential contaminants.
Key Features and Benefits
The PVDF Pleated Filter Cartridge is packed with features that ensure dependable filtration and long-lasting performance. From its heat resistance to its broad chemical compatibility, this filter is engineered for complex and rigorous industrial processes. Here’s what makes it stand out:
- Heat Resistance
- Oxidation and Corrosion Resistance
- High Flow Rate and Low Pressure Drop
- Broad Chemical Compatibility
- Sterilization Compatibility
Heat Resistance
One of the standout characteristics of this cartridge is its high tolerance for heat. Thanks to its polyvinylidene fluoride (PVDF) composition, it can withstand elevated temperatures without compromising its structural integrity or filtration efficiency. Whether your operations involve high-temperature fluids or steam, you can count on this filter to perform consistently. Its durability under thermal stress makes it an excellent choice for critical applications where heat exposure is inevitable.
Oxidation and Corrosion Resistance
The PVDF Pleated Filter Cartridge offers exceptional resistance to oxidation and corrosion, ideal for environments involving aggressive chemicals or reactive substances. Its PVDF material is inherently robust against chemical degradation, which means it won’t break down, weaken, or contaminate the fluid being filtered. This feature makes the cartridge particularly valuable in industries such as chemicals, pharmaceuticals, and water treatment, where purity and reliability are crucial.
High Flow Rate and Low Pressure Drop
Efficiency is critical in any filtration system, and that’s why this cartridge is designed to enhance flow while minimizing pressure drops. The pleated design increases the effective surface area, allowing for a high flow rate that keeps your system running smoothly. At the same time, the minimal pressure drop reduces energy consumption and operational strain, saving you time and costs in the long run. I believe this balance of flow and performance makes it an exceptional component of any sophisticated filtration setup.
Broad Chemical Compatibility
Adaptability to diverse environments is another hallmark of the PVDF Pleated Filter Cartridge. It is compatible with a wide range of chemicals, providing reliable performance across various settings and applications. Whether you’re dealing with acids, bases, or organic solvents, the PVDF material offers excellent resistance and ensures the filtration process remains uncompromised. This chemical versatility makes it a perfect solution for industries requiring flexible and robust filtration options.
Sterilization Compatibility
The ability to withstand sterilization processes adds to the utility of this cartridge. It is designed to be compatible with a variety of sterilization methods, including high-temperature and chemical processes. This feature is particularly useful in industries like pharmaceuticals and food processing, where meeting stringent hygiene and safety standards is essential. With this cartridge, you can maintain the cleanliness and sterility of your system without sacrificing efficiency or performance.
The PVDF Pleated Filter Cartridge exemplifies our commitment to delivering solutions that meet your operational needs. With its superior material properties, thoughtful design, and robust performance features, this cartridge is more than equipped to tackle even the most demanding filtration challenges. I’m confident that it will exceed your expectations and become a valued component in your filtration processes.
| Category | Specifications |
|---|---|
| Size & Dimensions | Outer Diameter: 69 mm |
| Length Options: 5", 10", 20", 30", 40" | |
| Filtration Precision: 0.1 μm, 0.22 μm, 0.45 μm, 1 μm, 5 μm, 10 μm | |
| Effective Filtration Area: 0.65 m² per 10" | |
| Material Composition | Filter Media: Hydrophobic PVDF Membrane |
| Support Layer: Polypropylene (PP) Nonwoven Fabric | |
| Shell / End Cap: Polypropylene (PP) | |
| Center Rod: Polypropylene (PP) or Stainless Steel (SS) | |
| Sealing Ring Material: Silicone Rubber, EPDM, Fluoroelastomer, PTFE-Coated Rubber | |
| Operational Parameters | pH Range: 1 - 14 |
| Maximum Differential Pressure: 4.1 bar (60 psid) at room temperature | |
| Maximum Operating Temperature: 120°C | |
| Steam Sterilization: Withstands 126°C for 30 minutes | |
| General Working Temperature: <70°C (Standard), <90°C (High-Temperature Type) |
Flow Rate vs. Differential Pressure Performance
- The pleated design enhances the filter’s flow capacity, ensuring a consistently high flow rate.
- By increasing the surface area for fluid passage, the pleated structure optimizes filtration efficiency.
- It minimizes pressure drop, outperforming other filters in maintaining system performance.
- This design enables fluid to flow more effectively, reducing energy consumption and operational strain.
- Excellent particle retention ensures precise and reliable filtration, meeting the highest standards across applications.
Applications of PVDF Pleated Filter Cartridge
Whether you’re working in the pharmaceutical sector or handling delicate processes in the electronics industry, our PVDF Pleated Filter Cartridge is up to the challenge. Below, I’ll break down its applications by industry to show how this cartridge can meet your specific needs:
Why Choose Our PVDF Pleated Filter Cartridge?
When you’re searching for a filter cartridge that excels in both performance and reliability, I know you need a solution you can trust. That’s why I take great pride in offering the PVDF Pleated Filter Cartridge—a product that has been meticulously designed with quality, sustainability, and precision at its core. This cartridge delivers consistent results across various demanding applications, providing an excellent balance of efficiency and durability.
Manufactured in ISO-Certified Facilities
Every PVDF Pleated Filter Cartridge I supply is manufactured in ISO-certified facilities, ensuring the highest quality and precision in production. We strictly adhere to international standards throughout the manufacturing process to guarantee exceptional product consistency and reliability. This means that every filter cartridge you invest in aligns with stringent industry requirements, ensuring it performs seamlessly in your operations.
Beyond quality assurance, our ISO compliance reflects our commitment to continuous improvement. I’m confident in saying that with this filter cartridge, you’re investing in technology designed and produced using world-class systems that safeguard its performance and reliability across applications.
Environmentally Friendly Design
Sustainability is as important to me as it is to you. That’s why I’ve ensured that the PVDF Pleated Filter Cartridge incorporates an environmentally friendly design without compromising effectiveness. The materials used in its construction are durable and selected for their minimal environmental impact. For instance, the reusable components and eco-efficient manufacturing processes reduce waste and conserve natural resources.
By choosing this cartridge, you’re securing a high-quality filtration solution and making an eco-conscious decision supporting global sustainability efforts. This distinction ensures you remain confident in your commitment to the planet while enjoying top-tier performance in your filtration processes.
Tested for Bacterial Retention and Integrity
Filtration isn’t just about removing sediments or large particles. It’s about protecting the integrity of your processes and ensuring the purity of your outcomes. That’s why every PVDF Pleated Filter Cartridge undergoes comprehensive bacterial retention and structural integrity testing. You can trust that each cartridge is built to create an uncompromised barrier against microbial contaminants.
Through extensive batch testing and validation processes, including bubble-point and bacterial challenge tests, I’ve ensured that you receive filters that perform exactly as needed. Whether your operations involve critical pharmaceutical applications, food and beverage production, or sensitive chemical processes, every cartridge I provide has been proven to meet rigorous performance standards.
By choosing the PVDF Pleated Filter Cartridge, you’re opting for a product that combines superior quality, eco-conscious values, and validated performance. I believe this cartridge will meet your expectations and exceed them, helping you achieve consistent and reliable results in your most critical applications. With superior engineering and attention to detail, this is a choice you can rely on.
PVDF Pleated Filter Cartridge FAQs
Q: What is a PVDF membrane pleated filter cartridge?
A: A PVDF membrane pleated filter cartridge is a type of filtration device made from polyvinylidene fluoride (PVDF) material, designed to provide efficient filtration through a pleated structure that increases surface area and enhances flow rates.
Q: How does the filtration process work with PVDF membrane pleated filter cartridges?
A: The filtration process occurs as fluid passes through the pleated filter, where the PVDF membrane captures particles and contaminants, allowing only clean fluid to flow through, thus ensuring high-quality filtration.
Q: What applications are suitable for PVDF membrane pleated filter cartridges?
A: PVDF membrane pleated filter cartridges are suitable for a variety of applications, including water treatment, pharmaceuticals, food and beverage processing, and chemical manufacturing, where effective filtration is crucial.
Q: What are the differences between hydrophilic and hydrophobic PVDF membranes?
A: Hydrophilic PVDF membranes have an affinity for water, allowing for efficient wetting and filtration of aqueous solutions, while hydrophobic PVDF membranes repel water, making them suitable for gas filtration and applications involving non-aqueous fluids.
Q: Can PVDF membrane pleated filter cartridges be used for gas filtration?
A: Yes, hydrophobic PVDF membrane pleated filter cartridges are specifically designed for gas filtration, effectively removing particulates and contaminants from gases without allowing moisture to pass through.
Q: What is the advantage of using pleated filter cartridges over other types of filters?
A: Pleated filter cartridges offer a larger surface area compared to traditional flat filters, resulting in higher flow rates, increased dirt-holding capacity, and longer service life, making them more efficient for various filtration needs.
Q: How do I select the right PVDF membrane pleated filter cartridge for my application?
A: To select the appropriate PVDF membrane pleated filter cartridge, consider factors such as the type of fluid being filtered, the particle size, flow rate requirements, and whether a hydrophilic or hydrophobic membrane is needed for your specific application.
Q: What maintenance is required for PVDF membrane pleated filter cartridges?
A: Maintenance typically involves monitoring the pressure drop across the filter and replacing the cartridge when the pressure drop exceeds recommended levels, ensuring optimal performance and filtration efficiency.
Q: Are PVDF membrane pleated filter cartridges compatible with all chemicals?
A: While PVDF is resistant to many chemicals, it is essential to consult compatibility charts or manufacturer guidelines to ensure the selected PVDF membrane pleated filter cartridges are suitable for the specific chemicals in use.
Q: How do I ensure the chemical compatibility of a pleated filter cartridge?
To confirm the chemical compatibility of a pleated filter cartridge, consult our specifications and compatibility charts. These resources detail the materials in our cartridges and their suitability with specific chemicals, ensuring you select the right option for your application.
Q: What is the role of the end cap in a pleated filter cartridge?
A: The end cap in a pleated filter cartridge serves to seal the filter media, ensuring that all fluid passes through the filter and preventing bypass, which is essential for maintaining effective filtration performance.
Ordering Information
Customizing your PVDF Pleated Filter Cartridge is easy! Choose the options that best fit your needs:
- Membrane Material: Select the right type for your application.
- Pore Size: Options include 0.22 μm, 0.45 μm, and more.
- Cartridge Length: Available in sizes like 5″, 10″, 20″, and 40″.
- Connector Type: Pick from various end cap styles for easy installation.
- Gasket Material: Choose from silicone, EPDM, or other materials for a perfect seal.
