Pleated Filter Cartridge
Advanced Filtration for Cleaner, More Efficient Operations
Pleated filter cartridges are essential components in modern filtration systems, designed to remove contaminants effectively and ensure optimal performance across various applications. Known for their durability, efficiency, and versatility, these cartridges are a go-to solution for industries requiring reliable filtration.
Crafted from premium materials such as cellulose, polyester, polypropylene, and glass, the pleated filter cartridge features a high-efficiency pleated design. This innovative structure maximizes surface area, enabling superior contaminant capture, high flow rates, and low pressure drops—all while reducing maintenance costs.
Innovative Pleated Filter Solutions from a Trusted Manufacturer
Efficient Filtration | Long Service Life | Customizable Options
Top Filter Bag™ is a trusted name in filtration technology, proudly serving industries worldwide with our high-performance pleated filter cartridges. We provide solutions designed to meet the most demanding filtration challenges, ensuring reliability and efficiency for your operations. Our commitment to quality, combined with superior customer service, establishes lasting partnerships with distributors and industrial clients globally.
Backed by advanced design and exceptional materials, our pleated filter cartridges maximize surface area for superior contaminant capture, high flow rates, and extended service life. Designed for versatility, they address the unique needs of industries like water treatment, food and beverage production, chemical processing, and air purification. From maintaining clean water systems to ensuring the purity of pharmaceutical products, our filters deliver optimal results with minimal maintenance.
At Top Filter Bag™, we prioritize innovation and customer satisfaction, creating filters that ensure operational ease and save resources over time. Our pleated filter cartridges stand out as a reliable and long-lasting filtration solution with customizable options to suit specific applications.
Unlike traditional depth filters, pleated filter cartridges maximize surface area by folding the filtration media into precise, accordion-like patterns. This design allows them to trap more contaminants while maintaining high flow rates—a key advantage in applications where downtime is costly.
| Product dimensions | |
|---|---|
| Accuracy | 0.1 μm, 0.22 μm, 0.45 μm, 1 μm, 3 μm, 5 μm, 10 μm, 20 μm, 50 μm |
| Length | |
| Outer diameter | 60 mm, 65 mm, 68 mm |
| Structural Materials | |
| Filter Media | Polypropylene |
| End Caps | Polypropylene |
| Flow Guide Layer | Non-woven fabric |
| Gasket/Seal | Silicone rubber, EPDM rubber, Nitrile rubber, Fluorine rubber |
| Center Rod | Polypropylene, Stainless steel |
| Technical Specifications | |
| Maximum operating temperature | 80℃ |
| Maximum pressure differential | 4.0 Bar at 21°C, 2.4 Bar at 80°C |
| Filter precision | 0.1, 0.2, 0.45, 1, 2, 3, 5, 10, 30, 60 |
| Effective filter area | 0.40 - 0.70 m² |
| Maximum continuous operating pressure | 0.35 Mpa at 25℃ |
| Maximum disinfection temperature | Disinfection cabinet |
| Water (gas) flow rate | Refer to the air and water flow pressure drop curve |
| Chemical compatibility | See the “Chemical Compatibility Table” |
Benefits of Top Filter Bag™ Pleated Filter Cartridges
Why Choose Top Filter Bag™?
Top Filter Bag™ pleated filter cartridges combine reliable performance, cost efficiency, and user-friendly features to meet the rigorous demands of industrial filtration. Contact us today to discover how our solutions can enhance your operations.
Applications of Pleated Filter Cartridges
Top Filter Bag™ Pleated Filter Cartridge Purchasing Guide
Selecting the right pleated filter cartridge is essential for achieving efficient and reliable filtration across various applications. At Top Filter Bag™, we offer a diverse range of high-quality products tailored to meet the needs of industries large and small. Use this guide to identify the perfect solution for your facility based on your operational scale and application requirements.
Case A: Large Industrial Facilities
For large-scale operations handling high volumes of liquid or gas filtration, durability and high capacity are critical. Industries such as water treatment, large-scale chemical processing, and food production benefit from robust cartridges that deliver precise filtration and long-lasting performance.
Recommended Products:
- PFA Pleated Filter Cartridge
- High-temperature resistance and excellent chemical compatibility.
- Ideal for corrosive environments or aggressive chemicals.
- Suitable for high-pressure industrial setups.

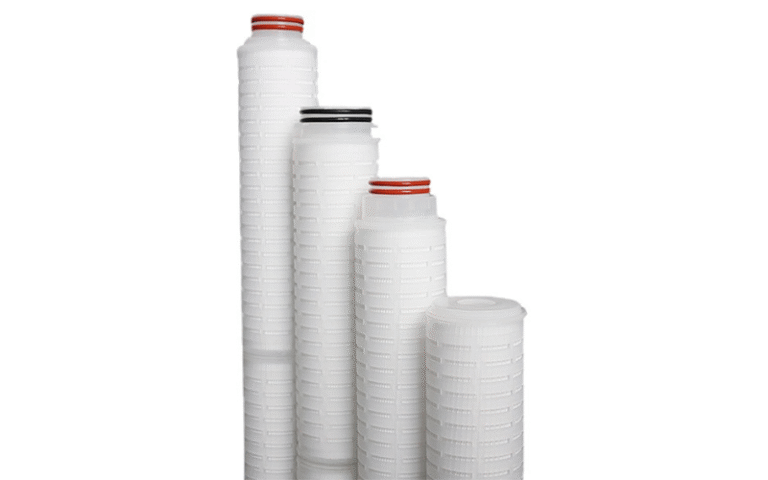

- Glass Fiber Pleated Filter Cartridge
- Superior dirt-holding capacity and high flow rates.
- Designed for efficient pre-filtration or fine particulate removal.
- Excellent for water treatment and demanding chemical processes.
Why Choose These?
These cartridges ensure resilience and consistency under rigorous conditions, reducing downtime and boosting operational efficiency.
Case B: Medium Businesses
Medium-sized facilities require flexible, dependable filter cartridges that balance performance and cost-efficiency. Industries like mid-sized food processing, chemical blending, or medium-scale water treatment benefit from these solutions.
Recommended Products:
- PP Pleated Filter Cartridge
- Cost-effective with excellent filtration performance for general-purpose use.
- Handles moderate chemical resistance and is ideal for non-critical applications.
- Perfect for medium-throughput settings where reliability and affordability matter.
- PVDF Pleated Filter Cartridge
- Highly durable and resistant to harsh chemicals and high temperatures.
- Perfect for industries requiring sanitation or contact with food and beverages.
Why Choose These?
These options deliver consistent results while meeting the operational demands of medium-sized environments.
Case C: Small-Scale Operations
For small-scale businesses, laboratories, or niche operations, simplicity, affordability, and effectiveness are key. Applications include boutique water purification, small-scale beverage production, or specialized chemical processing.
Recommended Products:
- PTFE Pleated Filter Cartridge
- Exceptional chemical resistance for a wide range of liquids and gases.
- Ideal for small-scale facilities handling acids, solvents, or high-purity applications.
- Nylon Pleated Filter Cartridge
- Durable and compatible with water-based fluids.
- Great for labs or small production setups requiring precise filtration solutions.
Why Choose These?
These cartridges are designed to fit smaller operational needs while maintaining high performance and ease of use.
Making the Right Choice
Before selecting a pleated filter cartridge, consider these factors to ensure the best fit for your operations:
- Filtration efficiency and compatibility with your application.
- System size and connection requirements.
- Resistance to chemicals or temperature challenges.
- Throughput demands and operational budget.
- Maintenance frequency and ease of replacement.
At Top Filter Bag™, we have a solution for every need—from cost-effective options for small businesses to advanced filtration systems for industrial operations. Contact us today to find the perfect pleated filter cartridge for your facility!
Comparing Pleated Filters with Other Filter Types
Pleated filters offer significant advantages over string-wound and melt-blown alternatives. Their pleated design maximizes surface area, enabling superior contaminant removal, longer lifespan, and better flow rates. While string-wound filters excel in low-pressure systems and melt-blown filters in coarse pre-filtration, pleated filters offer unmatched precision, durability, and cost efficiency, making them the ideal choice for applications that require reliable, high-performance filtration.
Comparing the Filters
| Filter Type | Efficiency | Lifespan | Cost | Best Applications | Advantages | Disadvantages |
|---|---|---|---|---|---|---|
| Pleated Filters | High (MERV 7-13) | Long | $$ | Industrial filtration, water treatment, HVAC | High contaminant capture, durable, reusable | Higher upfront cost compared to basic filters |
| String-Wound Filters | Moderate (MERV 5-8) | Medium | $ | Pre-filtration, sediment removal | Low cost, good for coarse filtration | Limited precision, shorter lifespan |
| Melt-Blown Filters | Moderate (MERV 5-8) | Short | $ | Pre-filtration, sediment removal | Low cost, good for coarse filtration | Limited dirt-holding capacity |
| HEPA Filters | Very High (99.97% efficiency) | Long | $$$ | Cleanrooms, hospitals, sensitive environments | Exceptional precision, captures fine particles | High cost, not suitable for liquids |
| Carbon Filters | Moderate (depends on application) | Medium | $$ | Odor removal, chemical filtration | Removes odors and chemicals effectively | Limited particulate filtration |
| Washable Filters | Low-Medium (MERV 1-4) | Very Long | $$ | HVAC systems, reusable applications | Reusable, eco-friendly | Lower efficiency, requires regular cleaning |
Innovative Pleated Filter Technology
Top Filter Bag™ pleated filter cartridges are a testament to technological innovation, delivering unparalleled filtration efficiency and effectiveness. Engineered for peak performance, our cartridges leverage advanced manufacturing processes and breakthrough proprietary designs, ensuring consistent reliability across demanding industrial applications.
Our pleated filter cartridges are developed with expertise and precision, incorporating cutting-edge technologies such as:
- High-Density Material Lamination
A meticulous lamination process improves filtration precision while maintaining exceptional structural integrity. This ensures higher dirt-holding capacity, leading to extended service life. - Pleat Optimization Design
The innovative pleat spacing system maximizes filtration area while minimizing differential pressure. This design enhances particle retention and ensures efficiency in various flow rates. - Seamless Welding Technology
Utilizing state-of-the-art heat fusion techniques, our cartridges eliminate the need for adhesives or bonding chemicals. This results in a product that is both environmentally safe and capable of withstanding extreme operating conditions. - Versatile End-Cap Configurations

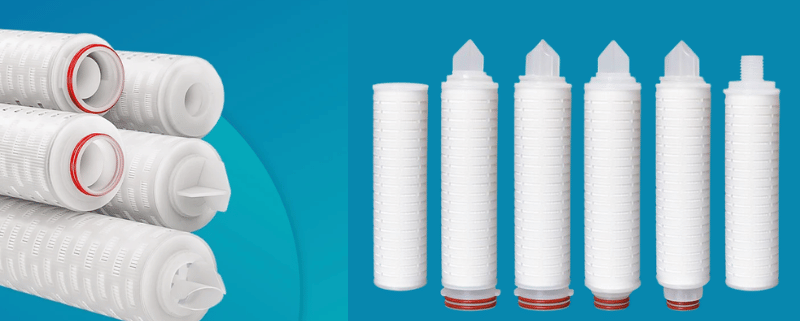

Our cartridges include adaptable end-cap options to cater to various housing types and industrial standards, making them suitable for water treatment, food and beverage processing, and chemical applications.
With these technologies, Top Filter Bag™ pleated filter cartridges consistently outperform others in the market. They achieve superior dirt-loading capabilities, reliable filtration precision, and reduced maintenance downtime. Each cartridge is designed for ease of use and operational longevity, ensuring the highest reliability for large-scale industrial processes.
Our innovative approach combines quality materials and proprietary engineering to guarantee optimized filtration solutions for every unique application. Our pleated filter cartridges rise to the challenge when purity and performance matter most.
Quality Assurance
At Top Filter Bag™, we uphold the strictest quality control standards to ensure our pleated filter cartridges deliver consistent and flawless performance, even in the most demanding applications. From water treatment facilities to the food and beverage industry, and chemical processing plants, our commitment to excellence guarantees durability and reliability.
Each pleated filter cartridge undergoes comprehensive testing, including assessments for pressure resistance, filtration uniformity, and long-term structural integrity. These stringent evaluations ensure that our products not only meet but exceed industry standards, providing peace of mind and optimal efficiency for your operations.
To minimize downtime and deliver consistent results, we subject our pleated filter cartridges to simulated operational environments. This includes extreme temperature and pressure testing, ensuring peak performance under a variety of industrial conditions. Every cartridge is inspected to eliminate defects and maintain exceptional reliability throughout its service life.
Our meticulous quality control processes reflect our dedication to delivering products you can trust. With Top Filter Bag™ pleated filter cartridges, you can count on precise filtration performance and robust durability for your critical applications.
How to Choose the Right Pleated Filter Cartridge?
Quick Guide: How to Choose the Right Pleated Filter Cartridge
Selecting the ideal pleated filter cartridge ensures optimal filtration performance and system longevity. Follow these key steps:
1. Determine Filtration Efficiency
Nominal Rating (70–90% particle capture): Best for general industrial use (e.g., water treatment, food processing).
Absolute Rating (~100% capture): Essential for critical applications (e.g., pharmaceuticals, sterile manufacturing).
Example: A 5-micron nominal filter catches most contaminants, while a 5-micron absolute filter guarantees near-total removal.
2. Check System Compatibility
Confirm dimensions (length, diameter) and operating conditions (flow rate, pressure limits) to avoid leaks or inefficiencies.
3. Balance Flow Rate & Pressure Drop
Higher flow rates = faster filtration.
Lower pressure drops = less strain on equipment.
Tip: Review manufacturer pressure-drop charts to match your system’s needs.
4. Select the Right Material
| Material | Best For |
|---|---|
| Polypropylene | Water, food/beverage (FDA-compliant). |
| PTFE | High temps, harsh chemicals. |
| Nylon | Solvents, precision filtration. |
5. Consider Industry-Specific Needs
Food/Beverage: FDA-grade polypropylene.
Pharma: Absolute-rated PTFE/nylon.
Oil/Gas: Chemical-resistant PTFE.
6. Prioritize Maintenance & Durability
Choose easy-to-replace designs to reduce downtime.
Opt for rigorously tested cartridges (ISO standards, burst pressure checks).
7. Sustainability (Optional)
Recyclable materials (e.g., PP) for eco-friendly operations.
Why Trust Us?
✅ Custom solutions for any industry.
✅ 24/7 expert support & spare parts.
✅ Tested for performance & longevity.
Need help? Contact us for a tailored recommendation!
Maintenance and Replacement of Pleated Filter Cartridges
Regular maintenance of pleated filter cartridges ensures optimal performance and extends their lifespan. To maintain efficiency, rinse the cartridges periodically with water and use appropriate cleaning solutions for stubborn buildup. Monitor for signs of wear, such as tears, clogging, or reduced system flow, as these indicate it’s time for a replacement. Following a consistent care routine and addressing issues promptly will keep your filtration system running smoothly.

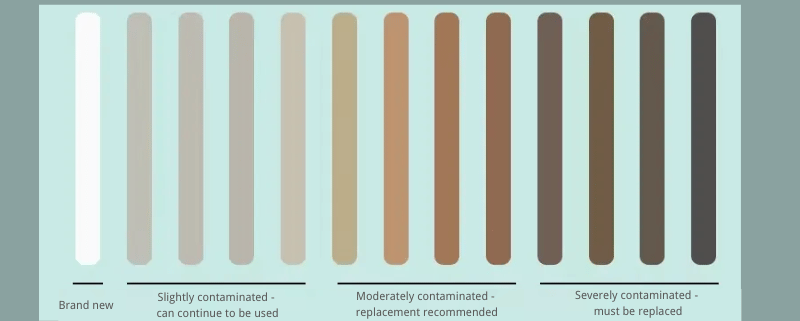

Replacement Instructions – Recommended replacement every 90 days
After a specific period of use, harmful substances in the water will remain on the surface of the filter cartridge, affecting the filtration effect, causing the water quality to fail to meet standards, and even causing adverse effects. Therefore, the filter cartridge should be replaced promptly to ensure clean water.
Frequently asked questions
Q: What is a pleated filter cartridge?
A pleated filter cartridge is a high-efficiency filtration solution that removes contaminants from liquids or gases. Its pleated design maximizes surface area, enabling superior filtration performance and high flow rates. These cartridges are widely used in industries such as water treatment, food and beverage production, and chemical processing.
Q: How do pleated filter cartridges compare to depth filters?
A: Pleated filter cartridges and depth filters serve different purposes and excel in specific applications. Pleated filters are designed to maximize surface area by folding the filtration media into pleats, allowing for higher flow rates, greater contaminant-holding capacity, and precise filtration. They are ideal for applications requiring fine particle removal and high efficiency, such as water treatment and pharmaceutical production.
Depth filters, on the other hand, capture contaminants throughout the thickness of the filter media, making them better suited for handling high sediment loads and larger particles. They are often used in pre-filtration or applications where durability and clog resistance are more critical than precision.
In summary, pleated filters are best for high-precision filtration and long service life, while depth filters are better for heavy-duty, high-sediment applications.
Q: What is the lifespan of a pleated filter cartridge?
A: The lifespan of a pleated filter cartridge depends on several factors, including the quality of the water or fluid being filtered, the type and concentration of contaminants, and the operating conditions (e.g., flow rate, pressure). On average, pleated filter cartridges can last anywhere from 3 to 6 months in typical applications.
To maximize their lifespan, regular monitoring is essential. Signs that a cartridge needs replacement include reduced flow rates, increased pressure drop, or visible clogging. Following the manufacturer’s guidelines for maintenance and replacement will ensure optimal performance and prevent system inefficiencies.
Q: Can pleated filter cartridges be reused?
A: Yes, pleated filter cartridges can often be reused, depending on the material and the type of contaminants they filter. For example, cartridges made from durable materials like polypropylene or stainless steel can be cleaned and reused multiple times. Cleaning methods may include rinsing with water, using mild cleaning solutions, or backflushing to remove trapped particles.
However, not all pleated filters are designed for reuse. Filters used in critical applications, such as pharmaceuticals or food and beverage production, may need to be replaced to maintain sterility and compliance with industry standards. Always check the manufacturer’s recommendations to determine if a specific pleated filter cartridge is reusable and follow proper cleaning procedures to avoid damaging the filter media.
Q: What are the benefits of using pleated filter cartridges?
Pleated filter cartridges offer several advantages, including:
- High filtration efficiency: The larger surface area captures more contaminants with precision.
- Longer lifespan: They hold more particulates before needing replacement.
- Versatility: Compatible with diverse filtration systems and fluids.
- Cost-effectiveness: Durable construction reduces operational downtime and maintenance costs.
Q: What is the warranty period for pleated filter cartridges?
Our pleated filter cartridges include a standard one-year warranty from the date of purchase. For recurring customers, we may offer extended warranty options and access to free replacement parts. Contact us for more details about your warranty eligibility.
Q: Are pleated filter cartridges compatible with my system?
Yes, our pleated filter cartridges are designed to fit a wide range of standard and custom filtration systems. We offer various sizes, materials, and micron ratings to suit specific industry requirements. Share your system specifications, and we’ll recommend the best option for your application.
Q: What types of pleated filter cartridges are available?
We offer a variety of pleated filter cartridges tailored to different needs:
- PFA Pleated Filter Cartridges: Ideal for high-temperature and chemical applications.
- PP (Polypropylene) Pleated Filter Cartridges: Versatile for general-purpose use and water-based applications.
- PVDF Pleated Filter Cartridges: Highly durable and ideal for food-safe operations.
- Glass Fiber Pleated Filter Cartridges: Designed for superior dirt-holding capacity.
- PTFE Pleated Filter Cartridges: Best for aggressive chemicals and solvents.
- Nylon Pleated Filter Cartridges: Suitable for precise filtration of water-based fluids.
- Each type is engineered to provide optimum performance for its specific use case.
Q: Do you offer customization options for pleated filter cartridges?
Yes, we customize pleated filter cartridges to meet unique industrial applications. Customization options include specific sizes, materials, micron ratings, and flow rate capacities. Reach out to us with your requirements, and we’ll create a tailored solution for your needs.
Q: How do pleated filter cartridges reduce costs in water filtration systems?
Pleated filter cartridges lower costs by offering longer service life due to their high dirt-holding capacity and durable build. Their efficient design minimizes replacements and maintenance while reducing energy consumption by maintaining low-pressure drops.
