Top Inlet Bag Filter Housing
Efficient Filtration | Long Service Life | Customizable Options

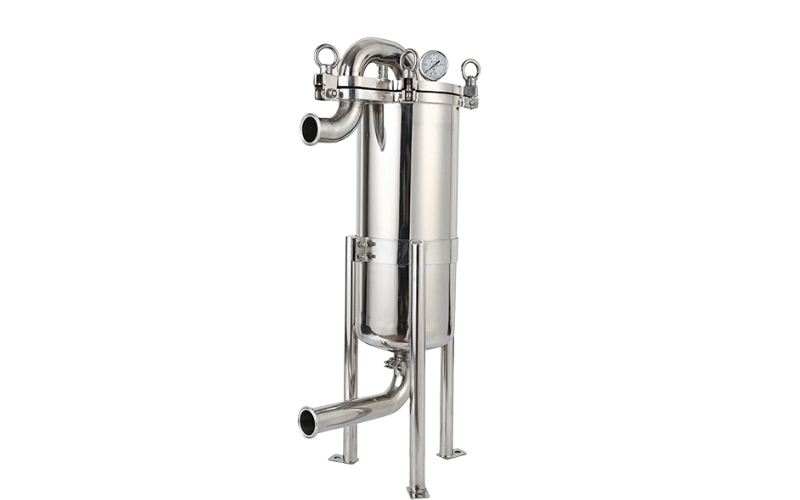

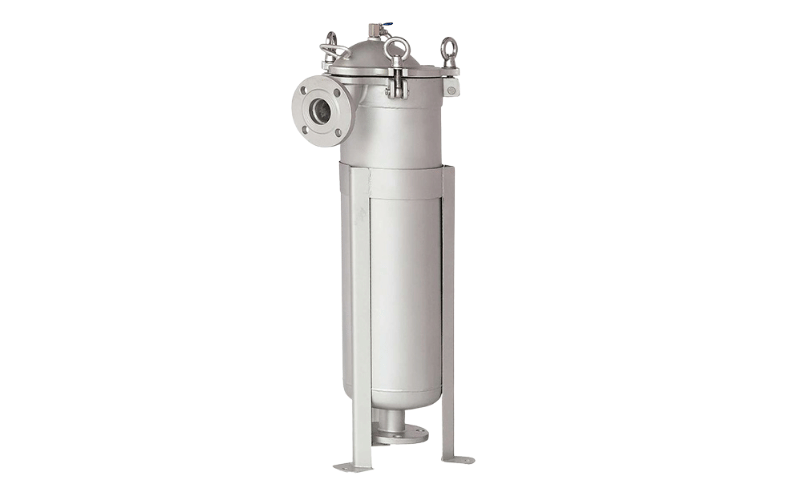

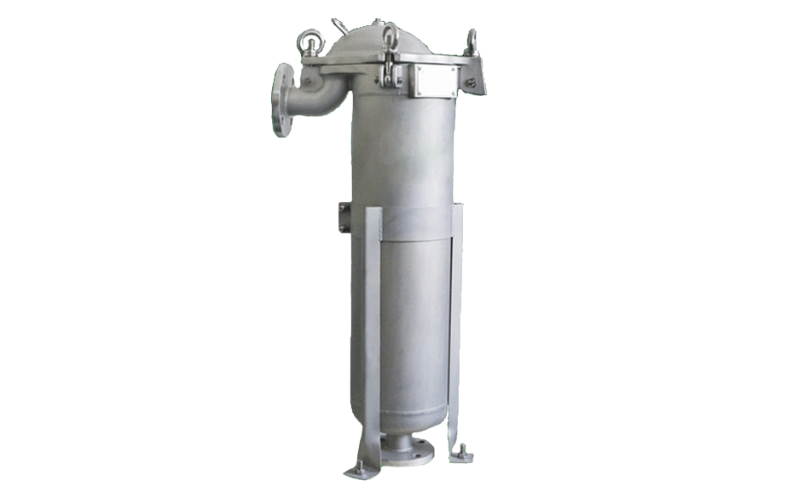

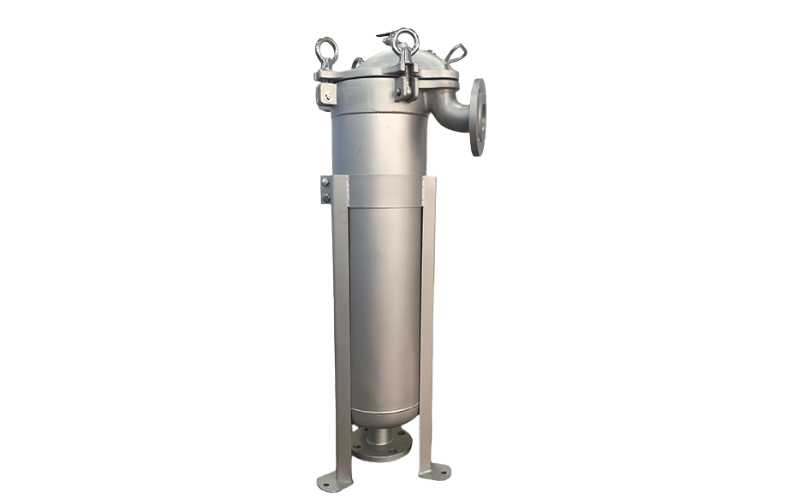

Our Top Inlet Bag Filter Housing is designed for unmatched filtration efficiency and durability. When liquid enters the housing, it flows directly into the filter bag from the top, ensuring even distribution across the entire filtration surface. This design minimizes turbulence, guarantees uniform filtration, and enhances overall operational performance. Engineered with a hygienic, dead-angle-free design, the housing is easy to clean and meets stringent sanitary standards.
This versatile filtration system is ideal for various industries, including pharmaceuticals, biotechnology, brewing, food processing, beverages, juices, and chemicals. Designed to optimize efficiency and reliability, our Top Inlet Bag Filter Housing is preferred for demanding filtration applications.
Technical Specifications
| Specification | Details |
|---|---|
| Design Pressure | 0.6–1.6 MPa |
| Design Temperature | 5°C–100°C (temperatures above 100°C require prior notification) |
| Sealing Type | O-ring and flat gasket |
| Sealing Material | Nitrile rubber, silicone rubber, fluorinated rubber (standard: silicone rubber) |
| Flange Type | GB, HG, DIN, ANSI, JIS standard flanges, threaded connections, quick-release clamps |
| Filter Bag Options | PP, PE, nylon, PTFE, stainless steel, etc. |
| Replacement Differential Pressure | 0.05 MPa |
| Surface Finish | Matte bead blasting, mirror polishing, electrolytic polishing |
| Filter Accuracy | 1 μm to 1000 μm available |
| Filter Housing Material | SS304, 316L, with optional jacket |

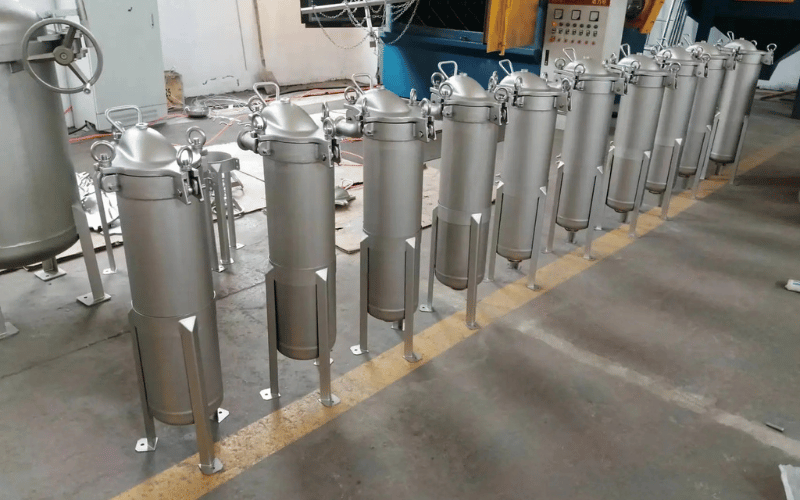

Products advantages
Efficient Filtration with Reduced Turbulence
Our Top Inlet Bag Filter Housing is designed to optimize liquid filtration. Directing the flow through the top cover minimizes turbulence, ensuring smoother operation and consistent performance.
Seamless Sealing for Leak-Free Filtration
Say goodbye to leakage concerns. The advanced sealing system offers exceptional performance for reliable, bypass-free filtration in all applications.
Compact, Durable, and Built to Last
With integrally cast construction and a compact design, this housing is engineered for durability and efficiency, even in demanding environments.
Extended Filter Bag Life with Enhanced Efficiency
Improved filtration performance means longer service life for filter bags, reducing replacement frequency and maximizing cost efficiency.
Customizable to Your Needs
Choose from flange or threaded connections and customize configurations to suit your operational requirements perfectly.
Flexible, Multi-Purpose Design
Switch filter bags effortlessly while maintaining precision filtration for various applications. The housing supports various filtration needs, making it a versatile solution.
Durable Materials for Tough Conditions
Available in various material options, the housing can withstand even the harshest operating conditions, providing a reliable solution no matter the challenge.
Unmatched Filtration Accuracy
With accuracy levels ranging from 0.5 to 500 microns, the housing meets particular filtration needs across industries.
Quick-Access Design for Easy Maintenance
The top cover opens and closes smoothly, and it is compatible with multiple opening directions. This streamlines maintenance processes for enhanced productivity.
Versatility in Filter Bag Choices
Select from various filter bag materials tailored to meet your specific liquid filtration demands, whether for industrial applications or specialized tasks.
With our top inlet bag filter housing, you can experience the perfect combination of efficiency, durability, and flexibility. Transform your filtration process and achieve superior results today.
What Applications Benefit from Top Inlet Bag Filter Housing?
Top inlet bag filter housings offer unparalleled efficiency and reliability, making them a favored choice across diverse sectors. We design our filter housings to meet the specific needs of various industries, ensuring optimal filtration performance and extended service life. Below, we’ll explore the key applications and highlight the value these systems bring to different operations.
Common Industries Utilizing Single Bag Filters
Single bag filters, including our top inlet filter housings, are integral to numerous industries. They are commonly used in processes requiring precise liquid filtration, making them versatile for various operations.
Chemical Processing Industry
Our filter housings are highly sought in chemical manufacturing, where the precision filtration of corrosive and non-corrosive liquids is crucial. These systems effectively remove particulate contaminants, ensuring product quality and seamless processes in producing paints, resins, and adhesives.Pharmaceutical Sector
Purity is paramount in pharmaceutical operations. We provide top inlet bag filter housings crafted from materials that meet strict regulations. They are ideal for filtering active ingredients, solvents, and purified water to meet precise pharmaceutical-grade standards.Water and Wastewater Treatment
Water treatment facilities use our top inlet systems to eliminate sediment, debris, and fine particulates, ensuring potable water delivery. Similarly, wastewater plants rely on them for pre-filtration and secondary processes, maintaining environmental compliance.Food and Beverage Industry
For operations producing consumables, our filter housings enable safe, efficient separation of undesired particles from liquids like syrups, oils, and non-carbonated beverages, ensuring top-tier product standards.
Specific Filtration Applications in the Beverage Sector
We recognize that the beverage industry demands impeccable product quality while maintaining high efficiency. Our top inlet bag filter housings tailor perfectly to meet these needs.
Clarification of Juices and Beverages
Removing suspended solids is essential when processing fruit juices, flavored waters, or teas to achieve the desired clarity. Our filters maintain precision by handling various particulate sizes, ensuring consistently high-quality beverages.Filtration of Brewing Ingredients
When brewing beer or crafting spirits, it’s vital to filter contaminants from water and other ingredients. Our filter housings handle varying chemical compositions with durable, adaptable materials, ensuring consistent taste and purity every time.Pre-Filtration for Bottled Water
Bottled water manufacturers rely on our systems to handle pre-filtration before reverse osmosis and UV sterilization. Our bag filters guarantee smooth operations and precise results when managing sediments or specific particulates.
Using Bag Filters for Liquid Purification
Beyond specific industries, the demand for precise liquid purification spans numerous applications, and our top inlet bag filter housings rise to the challenge.
Industrial Cooling Systems
We support facilities needing efficient water filtration to maintain cooling systems. By minimizing fouling caused by particles or debris in water cycles, our filters help reduce downtime and extend equipment life.Oil and Lubrication Purification
For removing particulate impurities in industrial oils, lubricants, and hydraulic fluids, our durable filters ensure the liquids remain efficient and free of abrasive materials, fostering smoother machinery operations.Cosmetics and Personal Care
Purification is critical for producing creams, lotions, and thermally sensitive products. Our filters help remove particles from raw ingredients while maintaining the liquid’s integrity.Electronics Manufacturing
Precision electronics depend on clean liquids for cooling and production. Our housings deliver unparalleled filtration accuracy, ensuring the production processes remain uncontaminated and advanced products meet stringent industry standards.
Closing Thoughts
Our top inlet bag filter housings are indispensable across numerous applications. They deliver excellence in filtration, adaptability to various settings, and compliance with industry and safety standards. Whether you operate in pharmaceuticals, food and beverage, or advanced industrial systems, we tailor our solutions to your needs. Contact us to explore how our filtration expertise can enhance your operations!
How to Install a Top Inlet Bag Filter Housing?
Proper installation of a Top Inlet Bag Filter Housing is essential for ensuring optimal performance, extended service life, and minimizing operational issues. At our company, we understand the importance of providing clear and detailed guidance to help you get the most out of your filtration system. Below, we’ve outlined an in-depth step-by-step guide to installation, common mistakes to avoid, and maintenance tips to keep your filter housing operating at its best.
Step-by-Step Installation Guide
A proper installation process ensures the Top Inlet Bag Filter Housing functions effectively from the start. Here’s how we recommend installing your filter housing:
1. Prepare the Installation Site
- Ensure the installation area is clean, dry, and free of potential contaminants.
- Verify that the environment meets the specifications for the filter housing’s material, whether it’s stainless steel, PVC, or another material. This step is particularly crucial in harsh operating conditions where material compatibility matters.
2. Check System Components
- Inspect the housing and all components for damage during transit.
- Cross-check all parts, including the filter bag, flange or threaded connectors, and seals, to confirm they are included and undamaged.
3. Position the Filter Housing
- Place the filter housing on a stable, level surface to prevent wobbling or misalignment.
- Secure the housing to the flooring or platform using bolts if specified in the system’s requirements.
4. Connect the System to the Pipeline
- Align the housing’s connection points with your pipeline.
- Attach the inlet and outlet pipes securely using the flange or threaded connections. Proper alignment is critical to avoid strain on the housing.
5. Install the Filter Bag

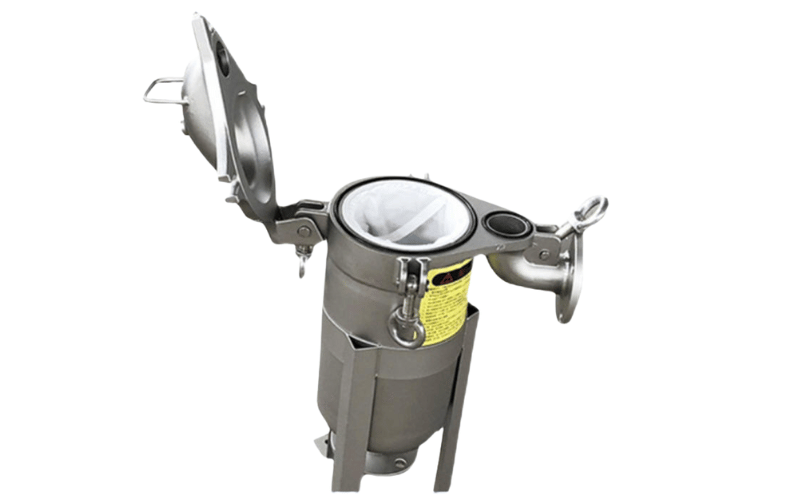

- Open the top cover of the housing using the quick-release mechanism.
- Insert the filter bag carefully, ensuring it is seated correctly. Make sure there are no folds or gaps that could cause bypass leakage.
- Recheck the sealing performance by visually confirming that the bag is correctly placed against the sealing ring.
6. Seal the Top Cover
- Close the top cover and securely lock it into position.
- Check that the sealing mechanism is tightly fastened to prevent leaks during operation.
7. Test the System
- Gradually introduce liquid into the system, monitoring for any leakage or abnormal pressure fluctuations.
- Ensure the filtration accuracy aligns with your system’s requirements, which may range from 0.5 to 500 microns.
Common Mistakes to Avoid During Installation
Even with a well-designed product like our Top Inlet Bag Filter Housing, improper installation can cause efficiency issues or system failures. Here are some pitfalls to watch out for:
1. Skipping the Initial Inspection
Failing to inspect the housing and its components can lead to operational problems such as leaks or poor sealing. Never overlook this step.
2. Improper Alignment
Misalignment of the housing and connecting pipes can put stress on the system, leading to premature wear or leaks. Always double-check the alignment before securing connections.
3. Using Incorrect Seals or Gaskets
Using mismatched or damaged sealing materials can compromise the housing’s performance. Only use the recommended seals provided with the unit or approved replacements.
4. Over-Tightening Connections
While a secure fit is necessary, over-tightening can damage threads or the sealing mechanism. Tighten connections to the manufacturer’s specified torque levels.
5. Neglecting Material Compatibility
The housing is available in multiple materials to suit different operating conditions. Ensure the chosen material is compatible with your application to avoid corrosion, deformation, or damage.
6. Forgetting to Test the System
Skipping the operational test after installation can allow minor issues to go unnoticed, potentially causing significant problems later. Always test for leaks and pressure consistency before full-scale operation.
Maintenance Tips for Long-Lasting Performance
To ensure long-term efficiency and durability of our Top Inlet Bag Filter Housing, regular maintenance is essential. Here’s how to keep your system in excellent condition:
1. Clean or Replace Filter Bags Regularly
Depending on your filtration application and material used, filter bags should be cleaned or replaced as soon as they reach their capacity. Allowing a clogged filter to stay in use reduces efficiency and puts excessive strain on the system. Always follow the manufacturer’s recommendations for replacement intervals.
2. Inspect the Seals and Connections
Visually inspect the seals and connections periodically for wear and tear. Replace any damaged seals promptly to prevent leaks or bypass issues.
3. Perform Routine Pressure Checks
Monitor the system’s pressure levels frequently. Sudden changes in pressure may indicate a clogged filter bag or other operational problems. Resolving these issues early can prevent more extensive damage.
4. Clean the Housing Body
Over time, residue or debris may accumulate inside the housing. Clean the interior of the housing thoroughly during filter bag changes to maintain consistent filtration performance.
5. Store Replacement Bags Properly
Proper storage ensures the integrity of replacement bags. Keep them in a clean, dry place, away from moisture, dust, and contaminants.
6. Schedule Professional Evaluations
For complex applications, we recommend periodic evaluations by a qualified technician. This ensures your system remains in compliance with operational and safety standards.
By following these installation and maintenance practices, you can optimize the performance and extend the lifespan of your Top Inlet Bag Filter Housing. Our design emphasizes convenience, efficiency, and durability, making it easier than ever to achieve precision filtration results. If you have additional questions or would like further support, feel free to reach out to our team!
FAQs About Our Top Inlet Bag Filter Housing
Q: What is a Top Inlet Bag Filter Housing?
A: A Top Inlet Bag Filter Housing is a type of liquid filter system designed to hold filter bags for the removal of solids from liquids. It is engineered to provide superior dirt-holding capacity and is often used in applications requiring pre-filtration.
Q: What materials are used in the construction of Top Inlet Bag Filter Housings?
A: Top Inlet Bag Filter Housings are commonly constructed from carbon steel or stainless steel, with options such as stainless steel 304 for enhanced corrosion resistance and durability.
Q: How does the filter bag work in a Top Inlet Bag Filter Housing?
A: The filter bag is placed within the housing to capture solid particles from the liquid flow. As liquid passes through the bag, contaminants are trapped, allowing clean liquid to be discharged through the outlet.
Q: What is the significance of having a bottom outlet in a Top Inlet Bag Filter Housing?
A: A bottom outlet allows for efficient drainage and removal of filtered liquids, reducing turbulence and ensuring a smooth flow, which is essential for maintaining optimal performance.
Q: What are the typical flow rates (GPM) for Top Inlet Bag Filter Housings?
A: Top Inlet Bag Filter Housings can be rated for a wide range of flow rates, with common configurations accommodating up to 100 gpm or more, depending on the specific design and application.
Q: What types of connections are available for Top Inlet Bag Filter Housings?
A: These filter housings can feature various connection types, including ANSI flanged connections, NPT threaded connections, and tri-clamp options, ensuring compatibility with existing piping systems.
Q: What micron rating can be expected from a typical filter bag in these housings?
A: The micron rating for filter bags used in Top Inlet Bag Filter Housings can vary, typically ranging from nominal micron ratings suitable for various applications, allowing for the removal of different sized particles.
Q: How do I ensure a proper seal in the Top Inlet Bag Filter Housing?
A: To ensure a proper seal, it is important to use high-quality O-rings and gaskets compatible with the housing material. Regular maintenance and inspection of the seal can help prevent leaks and ensure optimal performance.
Q: Can a Top Inlet Bag Filter Housing be used for multi-bag configurations?
A: Yes, Top Inlet Bag Filter Housings can be designed for multi-bag configurations, allowing for the simultaneous use of several filter bags, which enhances the system's dirt-holding capacity and operational efficiency.
Q: What is the maximum pressure rating for Top Inlet Bag Filter Housings?
A: Most Top Inlet Bag Filter Housings are rated for a maximum pressure of 150 psi, making them suitable for various liquid filtration applications while ensuring safety and reliability in operation.
