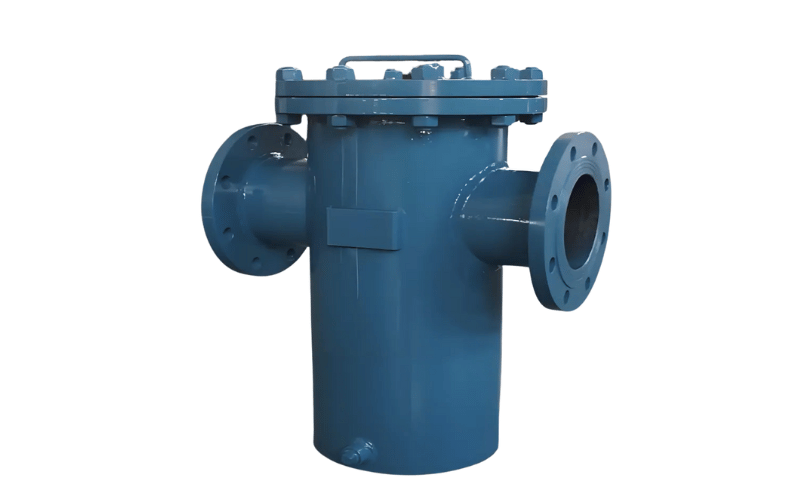

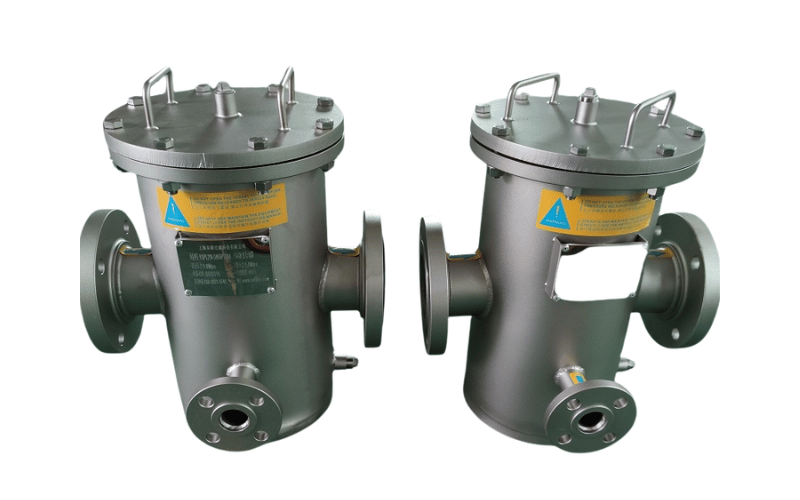

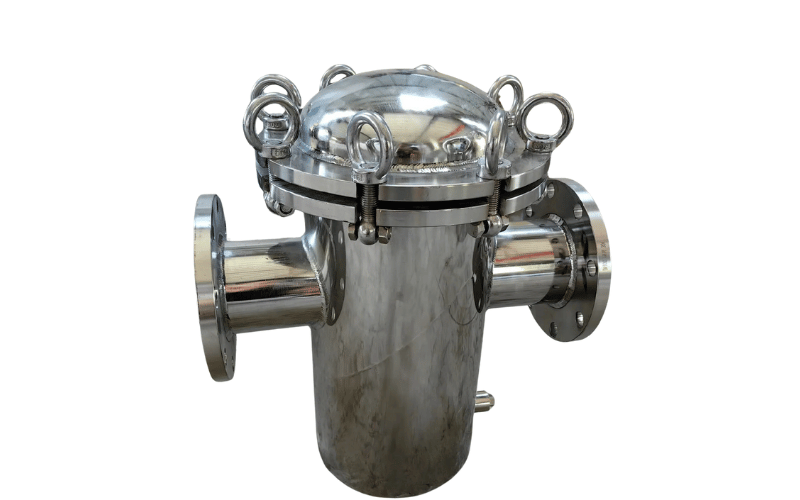

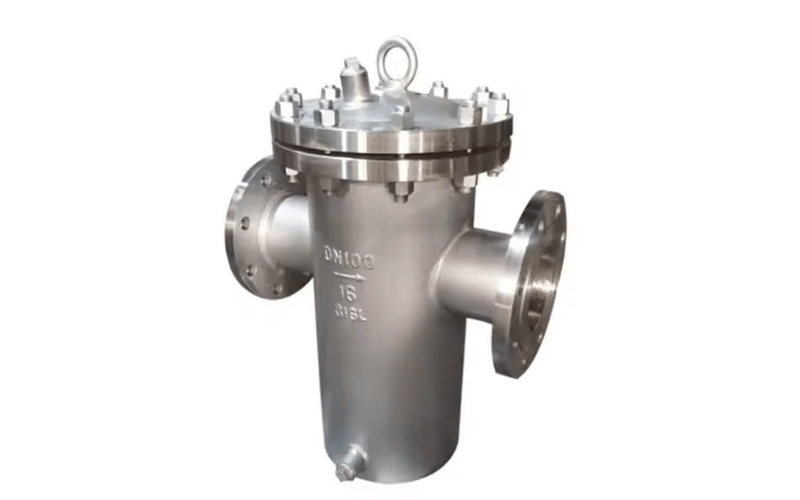

Basket Filter Housing
Efficient Filtration | Long Service Life | Customizable Options
The Basket Filter Housing is a highly effective and versatile device designed for both liquid and gas filtration across a wide range of industries. Built with a durable filter basket featuring precision-engineered mesh openings, it efficiently captures particulate impurities, ensuring clean and reliable filtration.
The filtration process begins as liquid or gas enters the housing through an inlet, seamlessly integrating with your existing piping system. Inside, the fluid passes through the filter basket, where impurities are trapped, protecting downstream equipment and maintaining system efficiency. The filtered liquid or gas is then discharged through an outlet, ready for further use or processing in downstream systems.
Why Choose Basket Filter Housing?
- Enhanced Equipment Protection: Prevents clogging and damage to pumps, valves, and other critical components.
- Customizable Filtration Precision: Mesh sizes can be tailored to meet specific application needs, from coarse to fine filtration.
- Robust Construction: Made from high-quality materials like stainless steel or carbon steel, ensuring durability and resistance to harsh environments.
- Wide Application Range: Suitable for industries such as water treatment, oil and gas, food and beverage, and chemical processing.
- Low-Maintenance Design: Easy-to-clean filter baskets minimize downtime and operational costs.
Get Your industrial filtration solutions Today.
Technical Specifications
| Parameters | Description |
|---|---|
| Filter accuracy | 10-5000 microns, suitable for filtering impurities of various particle sizes |
| Inlet and outlet dimensions | Select based on flow rate requirements, typically 1-12 inches |
| Applicable flow rate | Suitable for flow rates ranging from dozens of cubic meters per hour to thousands of cubic meters per hour |
| Working pressure | 0.1 MPa to 1.6 MPa, specific pressure varies depending on design and requirements |
| Material | Materials include stainless steel, carbon steel, alloy steel, etc., selected based on the properties of the liquid or gas |
| Cleaning method | Manual cleaning, automatic cleaning, reverse flushing, etc. |
| Working temperature | -10°C to 120°C, suitable for standard operating environments |
Key Features for Basket Filter Housing
Durable Construction
Typically made from robust materials like stainless steel, carbon steel, or other alloys to withstand high pressure and temperature conditions.
Customizable Basket Options
Available with different mesh sizes and materials to suit various filtration needs and applications.
Versatile Applications
Suitable for use in industries like oil and gas, chemical processing, water treatment, food and beverage, and pharmaceuticals.
High Flow Capacity
Engineered to handle large volumes of liquid with minimal pressure drop, ensuring efficient operation.
High Filtration Efficiency
Designed to remove solid particles and debris from liquids, ensuring clean and efficient fluid flow.
Easy Maintenance
Features a quick-opening mechanism or tool-free access for easy removal, cleaning, or replacement of filter baskets.
Corrosion Resistance
Often coated or made with corrosion-resistant materials to handle aggressive chemicals or harsh environments.
Safety Features
Includes pressure relief valves, vent ports, or other safety mechanisms to prevent overpressure and ensure safe operation.
Effortless Filtration in 4 Simple Steps
Seamless Liquid or Gas Entry
The filtration process begins as liquid or gas flows smoothly into the Basket Filter Housing, ensuring uninterrupted operation and easy integration with your existing system.Effective Impurity Removal
Inside the housing, the advanced filter basket precisely captures larger impurities, protecting downstream equipment and maintaining optimal system performance.Clean and Ready Output
The filtered liquid or gas exits the housing, free from contaminants and ready for further use, ensuring consistent quality and reliability in your processes.Hassle-Free Maintenance
Designed for convenience, the filter basket is easy to clean and replace, minimizing downtime and ensuring your operations run efficiently.

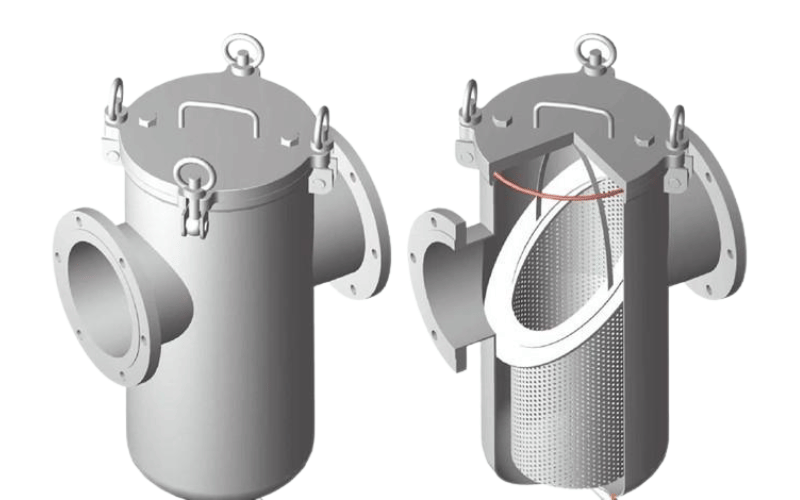

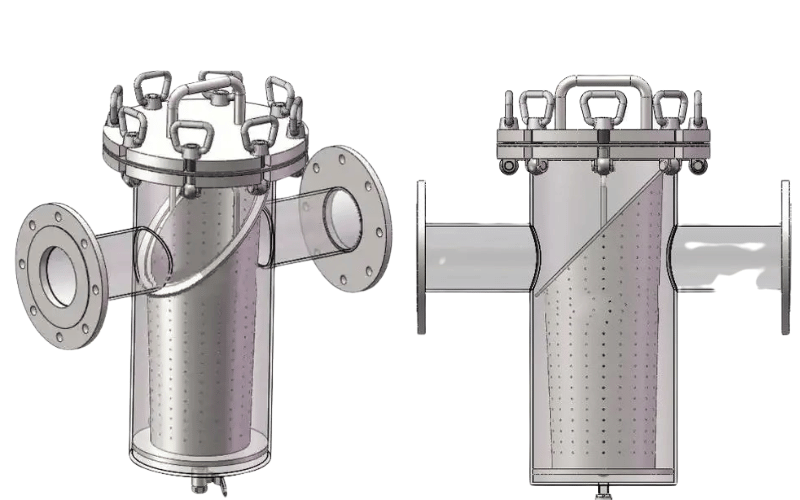

Main Components of a Basket Filter
- Filter Basket
The core of the Basket Filter Housing, this component traps impurities. It is typically constructed from materials like stainless steel or synthetic materials, with an array of mesh openings sized to meet specific filtration needs. - Housing (Shell)
The housing encloses and supports the filter basket while directing the flow of liquid or gas. It is usually made from stainless steel, carbon steel, or alloys with excellent corrosion resistance, ensuring long-term durability. - Inlet and Outlet Ports
These ports allow for the entry and exit of liquid or gas. Designed to meet system configurations, their size and position can be customized. - Cleaning Port
To facilitate maintenance, the housing is equipped with a cleaning port, typically located at the bottom or side. This allows for easy removal of the filter basket and accumulated impurities. - Drainage Device
Many basket filters include a drainage system to discharge solid impurities during cleaning. This prevents clogging and ensures uninterrupted filtration.
Types of Basket Filters
- Single-Basket Filter
The simplest design, featuring a single filter basket, suits systems with moderate flow rates or basic filtration requirements. It requires manual or automatic cleaning when the basket fills with impurities. - Double-Basket Filter
Equipped with two baskets, this type allows for continuous system operation. While one basket handles filtration, the other is cleaned or replaced. It is ideal for systems requiring uninterrupted operation. - Self-Cleaning Basket Filter
This advanced filter housing includes an automatic cleaning system that removes impurities without stopping filtration. Using reverse flushing, pneumatic, or hydraulic devices, these filters are well-suited for complex systems or high-flow operations.
Advantages of Basket Filter Housing
- Simple Design and Easy Maintenance
With a straightforward structure, the Basket Filter Housing is easy to install, disassemble, and maintain. The filter basket’s quick removal and cleaning ensure minimal downtime. - Efficient Filtration
Basket filters effectively capture large particles, such as sand, gravel, and rust, ensuring clean liquid or gas filtration. - Wide Application Range
Suitable for liquids and gases alike, Basket Filter Housing works well in water treatment, oil filtration, chemical liquids, and steam systems. - Customizable Filtration Precision
The mesh size of the filter basket can be tailored to meet specific requirements, allowing for versatile usage across industries. - Compact Design
Requiring minimal space, its small footprint makes it adaptable to various setups.
Disadvantages of Basket Filter Housing
- Limited Precision Filtration
Designed for larger particles, it may not efficiently handle very fine impurities or dissolved contaminants without supplemental filtering technologies. - Regular Maintenance Required
Frequent cleaning or replacement of the filter basket is necessary to maintain performance, which may cause occasional system downtime. - Clogging Risk
Systems with high impurity loads may face clogging, which reduces filtration efficiency and flow. Regular monitoring is essential.
Applications of Basket Filter Housing
The Basket Filter Housing is widely used across industries for efficient liquid and gas filtration, particularly to remove large particles. Common applications include:
- Water Treatment
Removing sand, rust, and particulate matter in municipal and industrial water systems. - Petroleum & Chemical Industry
Filtering impurities from crude oil, chemical solvents, and other liquid chemicals to prevent pipeline blockages. - Food & Beverage Industry
Ensuring compliance with hygiene standards by filtering out impurities during food processing operations. - Paper Industry
Removing impurities from pulp and wastewater, protecting equipment and ensuring product quality. - Energy Sector
Filtering natural gas, steam, and petroleum to ensure smooth pipeline and equipment operation. - Agricultural Irrigation
Removing sand and debris from water sources to protect irrigation systems from clogging.
With its robust performance, flexible design, and ease of maintenance, the Basket Filter Housing is a reliable choice for efficient liquid and gas filtration. Whether for industrial or municipal systems, it effectively protects equipment and pipelines from blockage while maintaining optimal flow and filtration quality. For maximum precision or handling finer particles, it can be paired with supplementary filtration systems for a seamless solution.
FAQs About basket filter housing
Q: What materials are commonly used for basket filter housing?
A: Basket filter housings are typically made from high-quality materials such as 304 and 316L stainless steel, which provide excellent corrosion resistance and durability.
Q: How does the filtration process work in a basket filter housing?
A: The filtration process in a basket filter housing involves the flow of fluid through strainer baskets that capture dirt and scale. The size of the particles that can be filtered depends on the micron rating of the filter baskets used.
Q: What is the significance of micron sizes in filter baskets?
A: Micron sizes, such as 74 micron size or 1 micron size, indicate the smallest particle that the filter basket can capture. Lower micron sizes provide finer filtration, while higher sizes allow for higher flow rates but may not capture smaller particles.
Q: Can the strainer baskets in basket filter housing be cleaned or replaced?
A: Yes, the strainer baskets in basket filter housing are designed to be easily cleaned or replaced. This feature enhances the dirt holding capacity and prolongs the lifespan of the filter housing.
Q: What are the connection sizes available for basket filter housings?
A: Basket filter housings come with various connection sizes to accommodate different piping systems. It is important to choose a model that matches the inlet and outlet connection sizes of your setup.
Q: How do I ensure a proper seal in the basket filter housing?
A: Ensuring a proper seal in the basket filter housing involves using high-quality seals and ensuring that the covers are easily removed and securely fastened using clamps or swing bolts to prevent leaks during operation.
Q: Are there different models of basket filter housing available?
A: Yes, basket filter housings are available in various models, including model 4, which may differ in terms of size, flow rate capacity, and specific features tailored to different applications.
Q: What advantages do bag filter housings offer compared to basket filter housing?
A: Bag filter housings tend to be more cost-effective and easier to handle for certain applications, while basket filter housings typically offer higher dirt holding capacity and are more suitable for solid particles and higher fluid viscosities.
Q: Can basket filter housings be used in water treatment applications?
A: Yes, basket filter housings are widely used in water treatment applications due to their ability to effectively remove particles and contaminants, ensuring the quality of the treated water.
