Filter Housing
Durable, Efficient, and Versatile Filtration Solutions
Our filter housing is an essential component in ensuring the effective operation of your filtration system. It acts as a protective enclosure that houses the filter elements, providing a secure and efficient environment for filtration. The primary purpose of the filter housing is to enable the removal of contaminants such as dirt, debris, or other unwanted particles from liquids or gases.
By doing so, it safeguards your systems, equipment, or processes from potential damage, ensuring optimal performance and reliability. Whether it’s industrial operations or residential applications, our filter housings are designed to meet the needs of diverse filtration requirements.
Comprehensive comparison table - Filter Housing
| Filter Type | Material | Pressure Range | Temperature Range | Filtration Precision | Special Features |
|---|---|---|---|---|---|

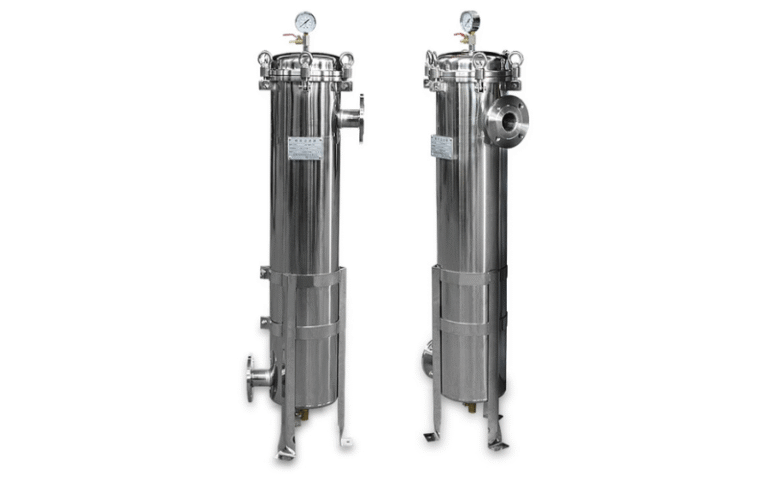

| Stainless Steel Housing | 304/316L Stainless Steel | 150 psi (10 bar) | 250°F (120°C) | 10–5000 microns | Corrosion-resistant, durable, suitable for high-pressure use |
| Bag Filter Housing | SS304, SS316L, HASTELLOY | 145 psi (1.0 MPa) | 248°F (120°C) | 1–100 microns | Easy maintenance, versatile, multiple connection options |
| Single Bag Housing | 304/316 Stainless Steel | 125 psi (8.6 bar) | 300°F (149°C) | Single bag configuration | Simple and efficient for low-flow applications |
| High-Pressure Housing | Stainless Steel/Carbon Steel | 5800 psi (400 bar) | Varies by design | 0.003–10 microns | Withstands extreme pressures, customizable connection options |
| Sanitary Housing | 304/316L Stainless Steel | 0–2.5 MPa | 0–260°C | 10–40 inch cartridge | Seamless, hygienic design for food, beverage, and pharmaceutical use |
| Duplex Housing | 304/316 Stainless Steel/Carbon Steel | 0.6–20.0 MPa | -80°C to +480°C | 10–500 mesh | Dual-chamber design for uninterrupted operation |
| Polypropylene Housing | Polypropylene | 0.6 MPa | 10°C to 80°C | 0.5–100 microns | Lightweight, chemical-resistant, cost-effective |

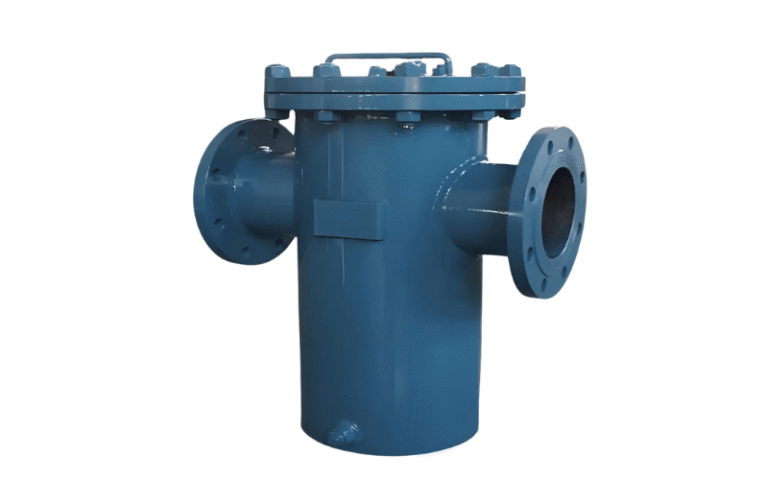

| Basket Housing | Stainless Steel/Carbon Steel/Alloy | 0.1–1.6 MPa | -10°C to 120°C | 10–5000 microns | Handles large particles, ideal for pre-filtration |
| Cartridge Housing | SUS304/316 Stainless Steel | 100 PSI | Customizable | 0.5–100 microns | Multiple cartridge compatibility, easy cartridge replacement |
Features and Benefits of Our Filter Housings
Our filter housings are designed to meet the highest standards of durability, functionality, and performance. They deliver reliable filtration solutions for a wide range of applications, ensuring that your processes run smoothly and efficiently. Below, we outline the key features and benefits that distinguish our filter housings.
Durability and Material Options
We construct our filter housings with premium materials to ensure long-lasting performance in challenging environments. Options include stainless steel, polypropylene, and other high-strength materials, each chosen for its specific applications. This flexibility allows you to select the material best suited for your operational needs, whether you’re dealing with harsh chemical exposure, high pressures, or extreme temperatures.
Our robust designs are engineered to withstand wear and tear, reducing the risk of damage or failure. With these high-quality materials, you can trust our filter housings to provide dependable service year after year, even in demanding conditions.
Easy Maintenance and Cleaning
We understand that maintenance downtime can disrupt your operations, which is why our filter housings are designed with simplicity in mind. Features such as quick-open closures and removable components make access fast and straightforward, allowing for effective cleaning and maintenance without the need for specialized tools or extensive training.
Streamlined construction means fewer internal crevices or hard-to-reach areas, reducing the potential for buildup over time. This not only makes cleaning easier but also ensures consistent filtration performance with minimal maintenance effort.
High Filtration Efficiency
Our filter housings are precision-engineered to deliver exceptional filtration performance. They support high flow rates without compromising on quality, efficiently removing contaminants to meet strict purity requirements across various industries.
The optimized design minimizes pressure drops while maximizing filtration capacity, ensuring your system operates at peak efficiency. Whether you’re managing water treatment, chemical processing, or pharmaceutical production, our housings maintain critical levels of filtration consistency, safeguarding both your product quality and operational integrity.
Customization Options
We recognize that every application has unique demands, and that’s why we offer extensive customization options for our filter housings. You can choose from a variety of sizes, configurations, and connection types tailored to fit seamlessly into your system.
Additional options include features such as differential pressure gauges, vents, drains, and specialized coatings, which enhance performance under specific operating conditions. If you have a particular requirement, our team can work with you to create a solution that meets your exact specifications, ensuring optimal compatibility and functionality.
By providing these tailored solutions, we empower you to address even the most complex filtration challenges with precision and confidence.
Applications of Filter Housings
Our filter housings are meticulously engineered to deliver dependable filtration solutions across a wide range of industries. They support critical processes with enhanced performance, ensuring the highest standards of quality, safety, and versatility.
Industrial Applications
We understand the demanding environments of industrial applications, where filtration plays a vital role in maintaining operational efficiency and protecting equipment. Our filter housings are designed to handle high-pressure systems, abrasive materials, and variable flow rates commonly encountered in industrial settings. Whether it’s for petrochemical processing, automotive manufacturing, or power generation, our robust housings minimize downtime, reduce maintenance needs, and enhance overall productivity.
Food and Beverage Industry
Our filter housings provide reliable and hygienic filtration solutions essential for maintaining product purity in the food and beverage industry. These housings meet strict compliance standards, ensuring the safe removal of sediments, particulates, and contaminants from liquids or gases used in production processes. From filtering water for brewing to removing unwanted particles in edible oils, our filter housings play a vital role in delivering high-quality, safe, and consistent products to consumers.
Pharmaceutical and Medical Use
Filtration is critical in pharmaceutical and medical applications, where purity and precision are paramount. Our filter housings are designed with medical-grade materials to satisfy stringent industry regulations and ensure sterility during processing. They are ideal for applications such as filtration of solvents, vaccines, and intravenous solutions. By incorporating our filter housing solutions, you can maintain the highest levels of cleanliness and maintain repeatable results throughout sensitive production processes.
Water Treatment and Desalination
For water treatment and desalination projects, our filter housings provide efficient and reliable performance in removing impurities from water sources. Whether you are seeking pre-filtration solutions for reverse osmosis systems or post-treatment sediment removal, our housings ensure the delivery of clean, potable water for residential, municipal, and industrial uses. With corrosion-resistant materials and durable construction, our filter housings withstand harsh environments and prolong the lifespan of water treatment systems.
By delivering customized filtration solutions for these diverse applications, we empower you to achieve optimal safety, efficiency, and performance across various processes. Whatever your needs, our filter housings are the reliable choice for supporting your operation’s success.
Why Choose Our Filter Housings?
Selecting the correct filter housing is crucial for ensuring system efficiency, reliability, and optimal performance. At our company, we take pride in delivering filter housing solutions that meet and exceed industry standards. Here’s why our filter housings are the preferred choice:
Industry Expertise
With decades of experience in the filtration industry, we’ve built a reputation for excellence. Our team comprises skilled engineers and technical experts who understand the unique demands of various industries, from pharmaceuticals to water treatment and food processing. By staying at the forefront of technological advancements, we ensure that our filter housings provide optimal performance, durability, and compliance with industry regulations.
Custom Solutions
We understand that no two filtration needs are the same. That’s why we offer tailored solutions designed to address specific challenges in your processes. Our range encompasses a variety of materials, configurations, and capacities, enabling us to tailor our products to meet your particular operational requirements. Whether you require high-flow systems, corrosion-resistant designs, or sanitary-grade housings, we collaborate closely with you to develop reliable and efficient solutions that enhance your operations.
Global Reach and Support
Our global presence ensures that our customers have access to our products and services wherever they operate. We provide comprehensive support, from initial consultation and product selection to post-installation maintenance guidance. With a network of knowledgeable professionals and responsive customer service teams, we are committed to ensuring that your filtration systems run smoothly, regardless of your location.
By choosing our filter housings, you invest in quality, reliability, and unparalleled support. Explore our diverse product range to find the perfect filtration solution for your needs, and experience the difference that expertise and innovation can make for your operations.
Filter Housings FAQs
How to Select the Right Filter Housing?
Choosing the right filter housing depends on several factors. We recommend starting by identifying your filtration requirements, such as flow rate, operating pressure, and compatibility with your process fluids. Consider the material of the filter housing to ensure it can withstand the temperature and chemical exposure specific to your application. For example, our stainless steel housings are ideal for high-pressure environments, while polypropylene options are suited for chemical resistance.
Additionally, think about the filter element you’ll use. The housing and filter element must be compatible in size, type, and design. If you're unsure about technical specifications, we’re here to assist. Contact us for guidance in selecting the best configuration for your system.
Maintenance Tips for Longevity
Proper maintenance is vital to extending the lifespan of your filter housing. Here are our top tips to keep your equipment in peak condition:
- Regular Inspections: Periodically check for signs of wear, corrosion, or damage. Catching minor issues early can prevent costly repairs later.
- Scheduled Cleaning: Ensure the housing is cleaned whenever you replace or service the filter element. Follow recommended cleaning guidelines to avoid damaging the housing material.
- Seal Checks: Inspect O-rings and gaskets for cracks or degradation. Damaged seals can lead to leaks or inefficiencies.
- Correct Handling: Always adhere to recommended pressure and temperature limits. Overstressing the housing can lead to premature failure.
Routine care and proper handling go a long way in maintaining optimal performance. If you need further advice, reach out to us, and we’ll be happy to help.
Common Issues and Troubleshooting
Despite their reliability, filter housings may occasionally experience issues. Here are some common problems and solutions:
- Problem: Leaks around the housing.Solution: Check that the housing is sealed tightly and inspect O-rings or gaskets for wear. Replace any damaged seals and ensure they are properly seated.
- Problem: Reduced flow rate.Solution: This often indicates a clogged filter element. Replace or clean the filter and verify that the new element matches the housing specifications.
- Problem: Pressure drops across the housing.Solution: Inspect the housing and filter for blockages. It may also help to confirm that the filter element’s micron rating is appropriate for your system.
If you encounter persistent issues, our technical support team is available to assist you with diagnostics and recommendations. Whether through troubleshooting steps or suggesting replacement parts, we’re committed to helping you achieve seamless operational performance.
Feel free to contact us with any additional questions or concerns. We're here to ensure you get the most out of your filter housing.
