Introduction to Witch Hat Strainers
Witch hat strainers, named for their distinctive conical shape resembling a witch’s hat, are essential filtration devices used in various industrial applications. These strainers are designed to remove debris, contaminants, and unwanted particles from fluid systems, ensuring smooth operation and protecting downstream equipment. Their conical mesh structure maximizes the surface area for capturing debris while allowing fluid to flow freely, making them highly efficient in filtration while minimizing pressure drop.
Typically made from durable materials such as stainless steel or other corrosion-resistant alloys, which hat strainers are built to withstand high pressures and harsh operating conditions. They are often installed at the inlet of pumps, valves, or other critical equipment to prevent contaminants from entering and causing damage. The conical design not only enhances filtration efficiency but also simplifies cleaning and maintenance.
Witch hat strainers are valued for their versatility, as they can be used in a wide range of systems, from pipelines to machinery, to maintain operational efficiency and prevent costly damage. Additionally, they can be customized in terms of mesh size, material, and dimensions to meet specific filtration requirements, making them a reliable choice for industries that demand high-performance filtration solutions.

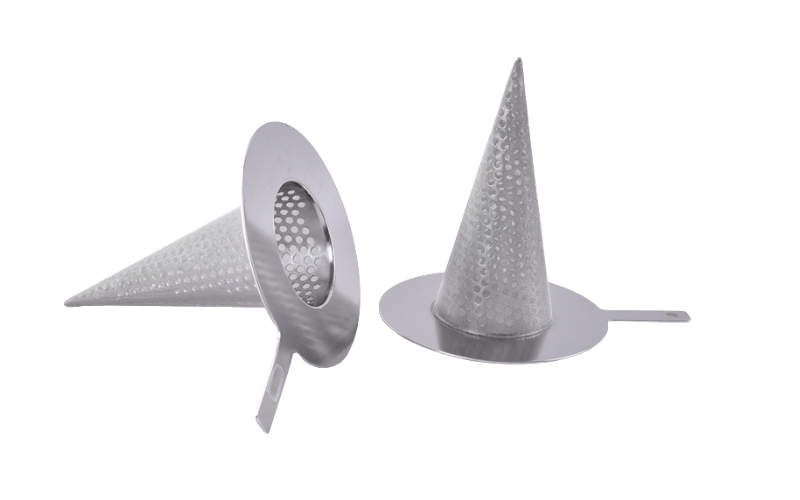

Benefits of Using Witch Hat Strainers
Witch hat strainers offer several advantages that make them a preferred choice for industrial filtration:
- Efficient Filtration: The conical design provides a large filtration surface area, allowing for effective removal of debris and contaminants without significantly restricting fluid flow.
- Protection of Equipment: By capturing particles before they reach sensitive components, strainers help prevent damage to pumps, valves, and other machinery, reducing maintenance costs and downtime.
- Versatility: These strainers can be used in a variety of systems, including liquid, gas, and steam applications, making them suitable for diverse industries.
- Durability: Constructed from robust materials like stainless steel, witch hat strainers are resistant to corrosion, high temperatures, and pressure, ensuring long-lasting performance.
- Ease of Maintenance: The removable design of witch hat strainers simplifies cleaning and replacement, ensuring minimal disruption to operations.
These benefits make witch hat strainers an invaluable component in maintaining the efficiency and reliability of industrial systems.
Applications in Various Industries
Witch hat strainers are widely used across multiple industries due to their adaptability and effectiveness in filtration. Some common applications include:
- Oil and Gas: In the oil and gas sector, witch hat strainers are used to filter out sand, rust, and other contaminants from pipelines and equipment, ensuring smooth operation and preventing blockages.
- Chemical Processing: These strainers are crucial in chemical plants for removing impurities from liquids and gases, thereby protecting sensitive equipment and maintaining product quality.
- Water Treatment: Witch hat strainers play a crucial role in water treatment facilities by filtering out debris and sediments from water streams, ensuring clean and safe water supply.
- Power Generation: In power plants, these strainers are used to protect turbines, pumps, and heat exchangers from damage caused by particulate matter in steam or cooling water.
- Food and Beverage: The food and beverage industry relies on witch hat strainers to maintain hygiene and product integrity by removing contaminants from liquid ingredients and processing systems.
The versatility and efficiency of witch hat strainers make them a vital component in ensuring the smooth operation of industrial processes across these and many other sectors.
Types of Temporary Cone Strainers
Temporary cone strainers are essential filtration devices used in pipelines and fluid systems to remove debris and protect downstream equipment during startup or maintenance operations. These strainers are designed for short-term use and are typically installed between flanges in a pipeline. Their conical shape provides a large filtration surface area, ensuring efficient debris capture while maintaining fluid flow. Temporary cone strainers are available in various designs and configurations to suit different applications and system requirements.
Common Types of Temporary Cone Strainers

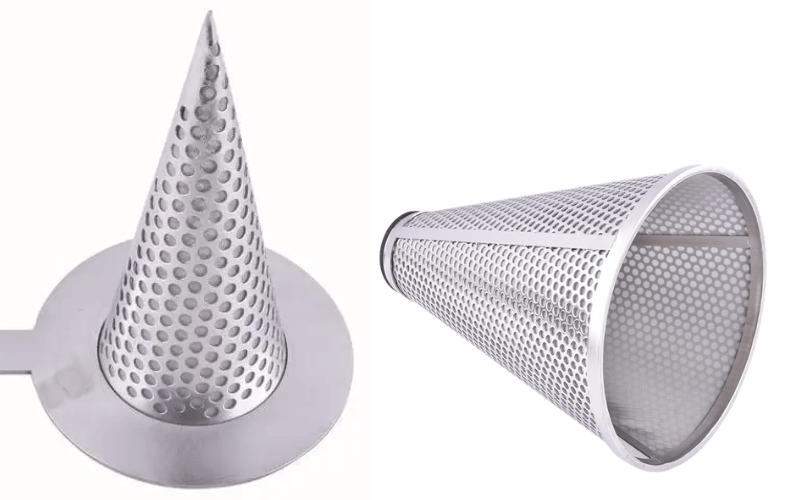

- Perforated Cone Strainers:
These strainers feature a perforated metal sheet with evenly spaced holes, allowing for effective filtration of larger particles. They are ideal for applications where coarse filtration is sufficient, such as removing rust, scale, or other large debris during system startup. - Mesh Cone Strainers:
Mesh cone strainers are equipped with a fine wire mesh that captures smaller particles, making them suitable for applications requiring finer filtration. The mesh size can be customized based on the specific filtration needs of the system. - Combination Cone Strainers:
These strainers combine perforated metal and wire mesh to provide dual-stage filtration. The perforated layer captures larger debris, while the mesh layer filters out finer particles, offering comprehensive protection for sensitive equipment.
Each type of temporary cone strainer is designed to address specific filtration challenges, ensuring optimal performance and system reliability.
Overview of Temporary Cone Strainers
Temporary cone strainers are primarily used during the commissioning or startup phase of a pipeline or fluid system. Their purpose is to prevent debris, such as welding slag, rust, or construction materials, from entering and damaging critical components like pumps, valves, and heat exchangers.
The conical design of these strainers offers several advantages, including a larger filtration area compared to flat strainers. This design minimizes pressure drop and ensures efficient fluid flow, even when handling high debris loads. Temporary cone strainers are easy to install and remove, making them a practical choice for short-term filtration needs.
These strainers are commonly used in industries such as oil and gas, chemical processing, power generation, and water treatment, where maintaining system integrity during startup is crucial.
Differences Between Cone Strainers and Basket Strainers
While both cone strainers and basket strainers are used for filtration, they differ significantly in design, application, and functionality.
- Design:
- Cone Strainers: Feature a conical shape that provides a larger filtration surface area relative to their size. They are typically used as temporary filters during system startup or maintenance.
- Basket Strainers: Have a cylindrical or basket-like design and are usually installed as permanent filtration solutions.
- Application:
- Cone Strainers: Ideal for short-term use to capture debris during commissioning or flushing operations.
- Basket Strainers: Designed for continuous operation, providing long-term protection for equipment in fluid systems.
- Maintenance:
- Cone Strainers: Easy to remove and replace, as they are not intended for permanent use.
- Basket Strainers: Require regular cleaning and maintenance to ensure consistent performance over time.
- Filtration Capacity:
- Cone Strainers: Suitable for handling moderate debris loads during temporary operations.
- Basket Strainers: Capable of managing higher debris loads and finer filtration requirements in permanent systems.
Understanding these differences helps in selecting the appropriate strainer type based on the specific needs of the application.
Common Materials Used: Focus on Stainless Steel 304
The material used in the construction of temporary cone strainers plays a critical role in their performance, durability, and suitability for various applications. Among the commonly used materials, stainless steel 304 stands out as a popular choice due to its excellent properties.
Why Stainless Steel 304?
- Corrosion Resistance:
Stainless steel 304 offers exceptional resistance to corrosion, making it ideal for use in environments where the strainer is exposed to moisture, chemicals, or other corrosive substances. - Durability:
This material is known for its strength and ability to withstand high pressures and temperatures, ensuring reliable performance even in demanding conditions. - Hygiene:
Stainless steel 304 is non-reactive and easy to clean, making it suitable for applications in industries like food and beverage, pharmaceuticals, and water treatment. - Versatility:
The material can be fabricated into various mesh sizes and perforation patterns, allowing for customization to meet specific filtration requirements.
Applications of Stainless Steel 304 Cone Strainers
- Oil and Gas: Used to filter out debris from pipelines and protect equipment during startup.
- Chemical Processing: Ensures the removal of contaminants from fluid systems to maintain product quality.
- Power Generation: Protects turbines and heat exchangers from damage caused by particulate matter.
- Water Treatment: Filters out sediments and debris to ensure clean water supply.
Stainless steel 304 combines performance, reliability, and cost-effectiveness, making it a preferred material for temporary cone strainers in a wide range of industries.
Installation and Maintenance of Witch Hat Strainers
Proper installation and regular maintenance of witch hat strainers are essential to ensure their optimal performance and longevity. These strainers play a critical role in protecting equipment and maintaining the efficiency of fluid systems, so following best practices for installation and upkeep is crucial. Additionally, understanding common issues and troubleshooting methods can help prevent operational disruptions.
Installation Guidelines for Effective Flow
Installing a witch hat strainer correctly is vital to ensure smooth fluid flow and effective filtration. Here are the key steps and considerations for proper installation:
- Positioning:
- Ensure the strainer is installed in the correct orientation, with the conical end facing the direction of fluid flow. This allows debris to collect in the cone, preventing blockages and ensuring efficient filtration.
- Place the strainer at the inlet of pumps, valves, or other critical equipment to protect them from debris.
- Flange Compatibility:
- Verify that the strainer fits securely between the flanges of the pipeline. Use appropriate gaskets to create a tight seal and prevent leaks.
- Ensure the flange bolts are tightened evenly to avoid misalignment or damage to the strainer.
- System Flushing:
- Before installing the strainer, flush the pipeline to remove any large debris or contaminants that could damage the strainer during startup.
- Pressure and Flow Considerations:
- Check the system’s pressure and flow rate to ensure they are within the strainer’s design limits. Excessive pressure or flow can compromise the strainer’s performance and durability.
By following these guidelines, you can ensure that the witch hat strainer operates efficiently and provides reliable protection for your system.
Maintenance Tips to Ensure Longevity
Regular maintenance is essential to keep witch hat strainers functioning effectively and to extend their service life. Here are some maintenance tips to follow:
- Routine Inspections:
- Periodically inspect the strainer for signs of wear, corrosion, or damage. Pay special attention to the mesh or perforated material, as it is the primary filtration component.
- Cleaning the Strainer:
- Remove the strainer from the pipeline and clean it thoroughly to remove accumulated debris. Use a soft brush or compressed air for light cleaning, and a chemical solution for stubborn deposits, depending on the material of the strainer.
- Monitor Pressure Drop:
- Keep an eye on the pressure drop across the strainer. A significant increase in pressure drop may indicate clogging, which requires immediate cleaning or replacement.
- Replace Damaged Components:
- If the mesh or cone structure is damaged, replace the strainer promptly to avoid compromising the system’s filtration efficiency.
- Reinstall Properly:
- After cleaning or replacing the strainer, ensure it is reinstalled correctly, following the original installation guidelines.
Regular maintenance not only ensures the strainer’s efficiency but also prevents costly repairs and downtime caused by equipment failure.
Common Issues and Troubleshooting
Despite their robust design, witch hat strainers can encounter issues that affect their performance. Here are some common problems and troubleshooting tips:
- Clogging:
- Issue: Accumulated debris can clog the strainer, leading to reduced flow and increased pressure drop.
- Solution: Clean the strainer regularly and consider using a larger mesh size if clogging occurs frequently.
- Leaks:
- Issue: Improper installation or damaged gaskets can cause leaks around the strainer.
- Solution: Check the flange connections and replace worn gaskets to ensure a tight seal.
- Corrosion:
- Issue: Exposure to corrosive fluids or environments can degrade the strainer material.
- Solution: Use strainers made from corrosion-resistant materials, such as stainless steel, and inspect them regularly for signs of wear.
- Structural Damage:
- Issue: High pressure or improper handling can deform or damage the strainer.
- Solution: Ensure the system operates within the strainer’s pressure limits and handle the strainer carefully during installation and maintenance.
- Incorrect Sizing:
- Issue: A strainer that is too small or has an inappropriate mesh size may not perform effectively.
- Solution: Select a strainer that matches the system’s flow rate, pressure, and filtration requirements.
By addressing these common issues promptly, you can maintain the performance and reliability of your witch hat strainer, ensuring the smooth operation of your fluid system.
Choosing the Right Witch Hat Strainer for Your Needs
Selecting the appropriate witch hat strainer is essential to ensure optimal performance and protection for your fluid systems. With various designs, materials, and configurations available, it’s important to evaluate your specific requirements to make an informed decision. From filtration efficiency to compatibility with your system’s flow rates, each factor plays a critical role in determining the right strainer for your application.
Factors to Consider: Filtration Needs and Flow Rates
When choosing a witch hat strainer, the first step is to assess your filtration requirements and the flow characteristics of your system.
- Filtration Needs:
- Determine the type and size of debris you need to filter out. For coarse particles, a strainer with a perforated metal design may suffice, while finer particles require a mesh strainer with smaller openings.
- Consider the operating environment, such as whether the system handles liquids, gases, or steam, as this will influence the material and design of the strainer.
- Flow Rates:
- Evaluate the flow rate of your system to ensure the strainer can handle the volume without causing excessive pressure drop. A strainer with a larger open area is better suited for high-flow applications, as it minimizes resistance and maintains efficient operation.
- Check the pressure and temperature conditions of your system to ensure the strainer material can withstand these parameters without compromising performance.
By carefully analyzing these factors, you can select a witch hat strainer that meets your system’s operational demands while ensuring long-term reliability.
Understanding Open Area and Mesh Requirements
The open area and mesh size of a witch hat strainer are critical factors that directly impact its filtration efficiency and flow performance.
- Open Area:
- The open area refers to the total surface area of the strainer that allows fluid to pass through. A higher open area reduces pressure drop and ensures smooth fluid flow, making it ideal for systems with high flow rates or heavy debris loads.
- However, a balance must be struck between open area and filtration efficiency. While a larger open area improves flow, it may reduce the strainer’s ability to capture fine particles.
- Mesh Size:
- Mesh size determines the size of particles the strainer can capture. Smaller mesh sizes are effective for filtering fine debris but may increase pressure drop due to restricted flow.
- For applications requiring both coarse and fine filtration, consider a combination design with a perforated outer layer and a finer mesh inner layer.
Understanding the relationship between open area, mesh size, and system requirements is essential for selecting a strainer that provides the right balance of filtration efficiency and flow performance.
Working with Manufacturers: Custom Gasket and Flange Options
Collaborating with manufacturers to customize your witch hat strainer can help ensure it meets the unique specifications of your system. Customization options include gasket materials, flange designs, and other features tailored to your application.
- Custom Gaskets:
- Gaskets play a crucial role in creating a secure seal between the strainer and the pipeline. Depending on the operating conditions, you may need gaskets made from materials like rubber, PTFE, or graphite to ensure compatibility with the fluid and temperature.
- For systems handling corrosive fluids or high temperatures, opt for gaskets with enhanced chemical and thermal resistance to prevent leaks and maintain system integrity.
- Flange Options:
- Flange compatibility is essential for proper installation and operation. Manufacturers can provide custom flange designs to match your pipeline’s specifications, ensuring a secure fit and easy installation.
- Consider options like raised-face or flat-face flanges, depending on the pressure and sealing requirements of your system.
- Additional Customizations:
- Manufacturers can also customize the strainer’s material, mesh size, and dimensions to meet specific filtration and operational needs. For example, stainless steel is a popular choice for its durability and corrosion resistance, while other alloys may be used for specialized applications.
By working closely with manufacturers, you can design a witch hat strainer that not only meets your system’s technical requirements but also enhances its overall efficiency and reliability. Customization ensures that your strainer is perfectly suited to your application, reducing the risk of operational issues and extending the lifespan of your equipment.
Conclusion: The Importance of Quality Filtration in Pipelines
Effective filtration is a cornerstone of maintaining the efficiency, safety, and longevity of pipeline systems across various industries. Whether it’s protecting sensitive equipment, ensuring product quality, or complying with environmental regulations, the role of high-quality filtration devices cannot be overstated. By removing debris, contaminants, and unwanted particles, filtration systems like witch hat strainers and temporary cone strainers help prevent costly downtime, reduce maintenance needs, and optimize overall system performance.
Summarizing the Benefits of Witch Hat Strainers
Witch hat strainers offer a versatile and efficient solution for temporary and permanent filtration needs in pipelines. Their conical design provides a large filtration surface area, ensuring effective debris capture while maintaining smooth fluid flow. These strainers are particularly valued for their ability to protect critical equipment, such as pumps and valves, from damage caused by contaminants.
Key benefits include:
- Enhanced Equipment Protection: Prevents debris from entering and damaging sensitive components.
- Operational Efficiency: Reduces pressure drop and ensures consistent flow rates.
- Durability: Constructed from robust materials like stainless steel, ensuring long-lasting performance.
- Ease of Maintenance: Simple to clean and reinstall, minimizing downtime.
These advantages make witch hat strainers an indispensable component in industries such as oil and gas, chemical processing, and water treatment.
Future Trends in Pipeline Filtration
As industries continue to evolve, the demand for advanced filtration technologies is expected to grow. Future trends in pipeline filtration are likely to focus on:
- Smart Filtration Systems:
- Integration of sensors and IoT technology to monitor filtration performance in real time.
- Automated alerts for maintenance, cleaning, or replacement, reducing manual intervention.
- Sustainable Materials:
- Development of eco-friendly and recyclable materials for strainers to align with sustainability goals.
- Enhanced corrosion-resistant alloys to extend the lifespan of filtration devices.
- Customizable Solutions:
- Increased demand for tailored filtration systems to meet specific operational requirements.
- Modular designs that allow for easy upgrades and scalability.
- Improved Filtration Efficiency:
- Advances in mesh and perforation technology to capture even finer particles without compromising flow rates.
- Hybrid designs combining multiple filtration stages for comprehensive debris removal.
These innovations will not only improve the effectiveness of filtration systems but also contribute to more sustainable and cost-efficient operations.
Frequently Asked Questions about Witches Hat Strainers
Q: What is a witches hat strainer?
A: A witches hat strainer, also called a conical strainer, is a filtration device designed to remove debris and particulate matter from fluids in piping systems. Its cone-shaped design ensures efficient fluid flow while capturing unwanted particles, making it a versatile and reliable choice for industrial applications.
Q: What sizes and materials are witches hat strainers available in?
A: Witches hat strainers come in a range of sizes and materials, including 304 and 316 stainless steel, as well as carbon steel. The material selection depends on the application, with higher-pressure environments, such as those in the oil and gas industry, often requiring heavy-gauge perforated plates for added durability.
Q: How do you install a witches hat strainer?
A: Installing a witches hat strainer involves placing it inline within the piping system, ensuring the flow direction matches the strainer’s design. It’s important to check for any specific coupling or flange requirements and to secure the strainer properly to prevent leaks or misalignment during operation.
Q: What is the purpose of temporary strainers?
A: Temporary strainers, including witches hat strainers, are used to protect pumps and downstream equipment from debris during system startup or maintenance. They filter out unwanted particles until the system is fully operational, after which they can be removed or replaced as needed.
Q: How do witches hat strainers remove debris?
A: Witches hat strainers use a combination of perforated plates and wire mesh to trap debris. As fluid flows through the strainer, larger particles are captured by the mesh or plate, allowing cleaner fluid to pass downstream. This prevents damage to sensitive equipment and ensures smooth system operation.
Q: What is the difference between cone filters and witches hat strainers?
A: While both cone filters and witches hat strainers are designed for fluid filtration, witches hat strainers feature a distinct conical shape that enhances fluid velocity and reduces the risk of clogging. Cone filters may vary in design and are not always optimized for the same applications as witches hat strainers.
Q: Can witches hat strainers be modified for specific applications?
A: Yes, witches hat strainers can be customized to suit specific applications. Modifications may include adjustments to size, material, or perforation patterns to better filter particular fluids or accommodate unique piping configurations.
Q: What is the significance of the screen type in witches hat strainers?
A: The screen type in witches hat strainers is critical to their performance. Options like single-layer woven wire mesh or pleated mesh determine the strainer’s ability to capture particles of varying sizes. Choosing the right screen type depends on the fluid’s characteristics and the system’s filtration requirements.
Q: How do I ensure proper maintenance of a witches hat strainer?
A: To maintain a witches hat strainer, regularly inspect it for blockages and debris buildup. Clean or replace the strainer as needed to ensure optimal performance and prevent issues that could affect upstream or downstream components in the piping system.
Final Thoughts on Selecting Temporary Cone Strainers
Temporary cone strainers are a practical and cost-effective solution for protecting pipeline systems during startup or maintenance operations. When selecting a temporary cone strainer, it’s essential to consider factors such as mesh size, material compatibility, and system flow rates to ensure optimal performance.
Stainless steel remains a popular choice for its durability and resistance to corrosion, while custom options like gaskets and flange designs can further enhance the strainer’s functionality. Regular maintenance and proper installation are equally important to maximize the lifespan and efficiency of these filtration devices.
By investing in high-quality temporary cone strainers and adhering to best practices, industries can safeguard their equipment, reduce operational risks, and maintain the integrity of their pipeline systems.
