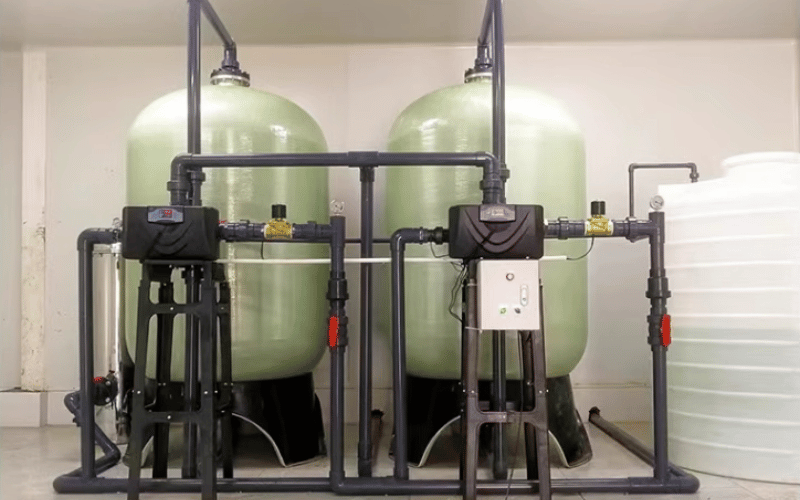

Process cooling water plays a critical role in industrial operations by regulating temperatures and ensuring equipment runs efficiently. Effective filtration is essential for maintaining system performance, preventing fouling, and reducing operational costs. This article examines the advantages of filtration, common challenges, and best practices for optimizing cooling water systems.
Why Filtration Matters for Process Cooling Water
Preventing Equipment Damage: Protecting Systems from Scaling and Corrosion
Filtration is essential for safeguarding process cooling water systems from impurities that can lead to significant equipment damage. Contaminants such as bacteria, minerals, and debris often enter cooling water systems through makeup water or environmental exposure. If left unfiltered, these impurities can accumulate and cause scaling, which reduces the efficiency of heat exchangers and other critical components. Scaling occurs when dissolved minerals, like calcium and magnesium, precipitate and form hard deposits on surfaces, restricting water flow and heat transfer.
In addition to scaling, unfiltered water can lead to corrosion, especially when it contains dissolved oxygen or other corrosive substances. Corrosion weakens metal components, leading to leaks, equipment failure, and costly repairs. Debris, such as dirt or organic matter, can also clog pipes and valves, disrupting the flow of water and causing blockages that reduce system performance. By removing these impurities through effective filtration, operators can prevent damage, extend equipment lifespan, and maintain reliable system operation.
Improving Heat Transfer Efficiency: Enhancing Cooling Performance
Clean water is critical for maintaining optimal heat transfer efficiency in process cooling systems. When impurities like sediments or biofilms accumulate on heat exchanger surfaces, they create an insulating layer that hinders the transfer of heat. This forces the system to work harder to achieve the desired cooling effect, leading to increased energy consumption and the risk of overheating.
Filtration ensures that cooling water remains free of particles and biological growth, allowing heat exchangers to operate at peak efficiency. For example, removing suspended solids prevents fouling, which can significantly reduce the effectiveness of heat transfer. Additionally, clean water reduces the likelihood of hot spots forming within the system, which can lead to uneven cooling and potential equipment damage. By maintaining water quality through proper filtration, industries can achieve consistent cooling performance and avoid the operational challenges associated with inefficient heat transfer.
Reducing Operational Costs: Saving Energy, Water, and Maintenance Expenses
Effective filtration not only protects equipment and improves performance but also delivers substantial cost savings. By preventing scaling, fouling, and corrosion, filtration reduces the need for frequent maintenance and unplanned repairs, lowering overall maintenance expenses. Clean water also minimizes energy consumption, as systems can operate more efficiently without the added strain caused by blockages or reduced heat transfer.
In addition to energy savings, filtration helps conserve water by reducing the need for frequent blowdowns or system flushes to remove accumulated impurities. This is particularly important in industries where water usage is a significant operational cost or where water scarcity is a concern. Furthermore, by extending the lifespan of equipment and reducing downtime, filtration contributes to long-term cost efficiency and improved productivity. Investing in high-quality filtration systems is a proactive approach that not only enhances system performance but also delivers measurable financial benefits.
Common Contaminants in Process Cooling Water
Airborne Pollutants: Dust, Pollen, and Debris from the Environment
Cooling towers, a critical component of many process cooling systems, are particularly vulnerable to airborne contaminants. As these towers draw in large volumes of air to cool water, they inadvertently pull in dust, pollen, leaves, and other debris from the surrounding environment. These airborne pollutants settle in the water, leading to sediment buildup and clogging within the system. Over time, this accumulation can reduce the efficiency of heat exchangers, pumps, and other components, forcing the system to work harder and consume more energy.
In addition to physical debris, airborne pollutants can introduce organic matter that promotes the growth of algae and bacteria. This biological activity can lead to biofilm formation, which not only reduces heat transfer efficiency but also creates an environment conducive to further contamination. Regular filtration and maintenance are essential to remove these pollutants and maintain the cleanliness of the cooling water, ensuring the system operates efficiently and reliably.
Pipe Scale and Corrosion Byproducts: Internal System Contaminants
Internal system contaminants, such as pipe scale and corrosion byproducts, are a common issue in process cooling water systems. Pipe scale forms when dissolved minerals, like calcium and magnesium, precipitate and adhere to the inner surfaces of pipes and equipment. These deposits not only restrict water flow but also create rough surfaces that trap additional particles, exacerbating the problem over time.
Corrosion byproducts, such as iron oxide (rust), are another significant source of contamination. When metal components within the system corrode, they release particles into the water, which can settle in low-flow areas or clog critical components. Corrosion also weakens the structural integrity of pipes and equipment, increasing the risk of leaks and failures. Effective filtration systems are crucial for capturing these internal contaminants before they cause extensive damage, helping to maintain system performance and reduce maintenance costs.
Organic and Inorganic Solids: Sediments, Rust, and Microorganisms
Process cooling water often contains a mix of organic and inorganic solids that can compromise system efficiency if not properly managed. Organic solids, such as algae, bacteria, and other microorganisms, thrive in the warm, moist environment of cooling systems, especially when nutrients like nitrogen and phosphorus are present. These microorganisms can form biofilms on heat exchanger surfaces, significantly reducing heat transfer efficiency and increasing the risk of microbial-induced corrosion.
Inorganic solids, including sediments, rust, and mineral particles, enter the system through makeup water or as a result of internal processes like scaling and corrosion. These solids can settle in low-flow areas, creating sludge that clogs pipes and reduces system capacity. Without proper filtration, these contaminants accumulate over time, leading to higher energy consumption, increased maintenance requirements, and potential system failures. By implementing robust filtration solutions, operators can effectively manage both organic and inorganic solids, ensuring the long-term reliability and efficiency of their cooling water systems.

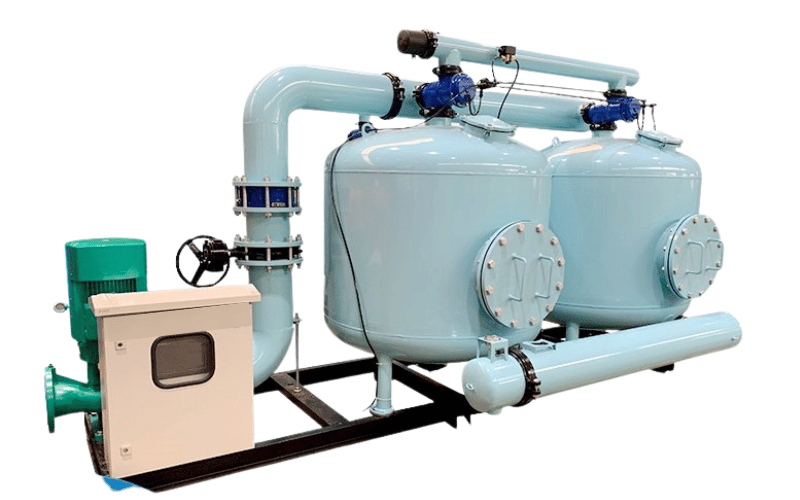

How Filtration Systems Work
Primary Filtration: Removing Larger Particles Like Sediment and Rust
The filtration process begins with primary filtration, which focuses on removing larger particles and visible debris from the cooling water. This stage typically employs coarse filters, such as mesh screens or sediment filters, designed to capture contaminants like dirt, sand, rust flakes, and other suspended solids. These particles often enter the system through makeup water or as a result of internal corrosion and scaling. By eliminating these larger impurities early in the process, primary filtration prevents clogging and damage to downstream components, such as pumps, valves, and heat exchangers.
Primary filtration not only protects the system but also sets the stage for more advanced filtration stages by reducing the overall contaminant load. This ensures that subsequent filters can focus on capturing smaller, more challenging impurities without becoming overwhelmed. The efficiency of this initial step is critical for maintaining consistent water flow and minimizing wear and tear on the system.
Secondary Filtration: Capturing Smaller Contaminants with Ultrafiltration
Once larger particles are removed, secondary filtration targets smaller contaminants that primary filters cannot capture. This stage often utilizes advanced filtration technologies, such as ultrafiltration membranes, pleated filters, or activated carbon filters, depending on the specific requirements of the cooling water system. These filters are designed to remove fine particles, dissolved solids, and even microorganisms, such as bacteria and algae, that can compromise water quality and system performance.
Ultrafiltration membranes, for example, are highly effective at capturing particles as small as 0.01 microns, ensuring that even the tiniest impurities are removed. Activated carbon filters, on the other hand, excel at adsorbing organic compounds and chlorine, which can cause fouling or corrosion if left untreated. By addressing these smaller contaminants, secondary filtration enhances water clarity, reduces the risk of biofilm formation, and ensures that the system operates at peak efficiency.
The Role of Multiple Filtration Stages in Achieving Optimal Water Quality
Achieving optimal water quality in process cooling systems often requires a multi-stage filtration approach, where each stage is tailored to address specific types of contaminants. Primary filtration handles the bulk of the larger particles, protecting the system and preparing the water for more precise filtration. Secondary filtration then takes over, targeting finer impurities and ensuring that the water meets the stringent quality standards required for efficient cooling and heat transfer.
In some cases, additional filtration stages may be incorporated to address unique challenges, such as chemical treatment or disinfection. For example, tertiary filtration might include UV sterilization to eliminate any remaining microorganisms or specialized filters to remove dissolved metals. By combining multiple filtration stages, operators can create a comprehensive system that not only protects equipment but also minimizes energy consumption, reduces maintenance needs, and extends the overall lifespan of the cooling system. This layered approach ensures that every aspect of water quality is addressed, delivering reliable and efficient performance across a wide range of industrial applications.
Benefits of Filtration for Process Cooling Water
Lower Maintenance Costs: Reducing Downtime and Equipment Wear
Effective filtration significantly lowers maintenance costs by preventing the buildup of contaminants that can damage critical components in process cooling systems. Without proper filtration, particles like sediment, rust, and organic matter accumulate in pipes, valves, and heat exchangers, leading to clogs, scaling, and corrosion. These issues not only reduce system efficiency but also require frequent cleaning, repairs, or even component replacements, driving up maintenance expenses.
By removing impurities before they can cause damage, filtration minimizes the need for unplanned downtime and costly repairs. Operators can focus on scheduled maintenance rather than reacting to emergencies, ensuring smoother operations and better resource allocation. Additionally, clean water reduces wear and tear on pumps and other moving parts, further extending the time between maintenance cycles and lowering overall operational costs.
Water Conservation: Promoting Reuse and Reducing Environmental Impact
Filtration systems play a crucial role in conserving water by enabling its reuse within process cooling systems. Contaminants in cooling water, such as suspended solids and microorganisms, can degrade water quality over time, making it unsuitable for reuse without treatment. Filtration removes these impurities, allowing the water to be recirculated multiple times before requiring replacement. This reduces the volume of makeup water needed, conserving valuable resources and lowering water procurement costs.
In addition to cost savings, water conservation through filtration helps industries reduce their environmental footprint. By minimizing water discharge and the associated treatment requirements, filtration systems contribute to more sustainable operations. This is particularly important in regions facing water scarcity, where efficient water management is both an operational necessity and a corporate responsibility.
Enhanced Equipment Lifespan: Protecting Cooling Towers, Chillers, and Heat Exchangers
Filtration extends the lifespan of cooling towers, chillers, and heat exchangers by protecting them from the harmful effects of contaminants. Particles like sediment and rust can erode surfaces, while scaling caused by dissolved minerals can restrict water flow and reduce heat transfer efficiency. Over time, these issues lead to premature wear and equipment failure, requiring costly replacements.
By maintaining clean water, filtration prevents these problems and ensures that equipment operates under optimal conditions. For example, removing biofilm-forming microorganisms reduces the risk of microbial-induced corrosion, a common issue in cooling systems. Protecting equipment from such damage not only extends its lifespan but also improves reliability, reducing the likelihood of unexpected breakdowns that can disrupt operations.
Energy Efficiency: Improving Heat Transfer and Reducing Power Consumption
Clean water is essential for maintaining energy efficiency in process cooling systems. Contaminants like biofilms, scaling, and suspended solids create insulating layers on heat exchanger surfaces, reducing their ability to transfer heat effectively. This forces the system to work harder to achieve the desired cooling effect, increasing energy consumption and operational costs.
Filtration ensures that water remains free of these impurities, allowing heat exchangers and other components to perform at their best. Improved heat transfer efficiency reduces the workload on pumps, chillers, and compressors, leading to significant energy savings. Over time, these savings can offset the initial investment in filtration systems, making them a cost-effective solution for enhancing both performance and sustainability. By optimizing energy use, filtration not only lowers utility bills but also supports environmental goals by reducing the carbon footprint of industrial operations.
Choosing the Right Filtration System
Assess the Source and Quality of Cooling Water
The first step in selecting an appropriate filtration system is understanding the source and quality of the cooling water. Cooling water can come from various sources, such as municipal supplies, groundwater, or surface water like rivers and lakes. Each source has unique characteristics and potential contaminants. For instance, surface water often contains higher levels of organic matter, sediments, and microorganisms, while groundwater may have elevated mineral content that can lead to scaling. Municipal water, though treated, may still carry residual chlorine or fine particulates. Conducting a thorough water quality analysis helps identify the specific impurities present and guides the selection of a filtration system that can effectively address these challenges.
Additionally, consider seasonal variations in water quality. For example, surface water sources may experience increased sediment loads during rainy seasons or higher organic content during warmer months. Understanding these fluctuations ensures that the filtration system can handle varying contaminant levels without compromising performance.
Identify the Type and Size of Contaminants
Knowing the type and size of contaminants in the cooling water is critical for choosing the right filtration technology. Contaminants can range from large particles, such as sand and rust flakes, to microscopic impurities, including bacteria and dissolved solids. The size of these particles, typically measured in microns, determines the type of filter media required. For example, coarse filters with larger pore sizes are suitable for removing sediments and debris, while fine filters or ultrafiltration membranes are needed to capture smaller particles and microorganisms.
In some cases, a multi-stage filtration system may be necessary to address a wide range of contaminants. For instance, a system might include a pre-filter to remove larger particles, followed by a finer filter or membrane to capture smaller impurities. Identifying the specific contaminants and their sizes ensures that the filtration system provides comprehensive protection and maintains water quality.
Consider System Operating Conditions: Temperature, Pressure, and Flow Rate
The operating conditions of the cooling system, including temperature, pressure, and flow rate, play a significant role in determining the suitability of a filtration system. High-temperature applications, such as those involving steam or hot water, require filters and housings made from materials that can withstand heat without degrading. Similarly, systems operating under high pressure need robust filters and housings designed to handle the stress without compromising performance.
Flow rate is another critical factor to evaluate. The filtration system must be capable of processing the required volume of water without causing bottlenecks or pressure drops. For high-flow applications, such as large industrial cooling systems, multi-cartridge or bag filter systems are often the best choice. Conversely, smaller systems may benefit from single-cartridge filters that are easier to maintain. Matching the filtration system to the operating conditions ensures reliable performance and prevents issues like filter failure or reduced efficiency.
Evaluate Long-Term Maintenance and Operational Costs
While the initial cost of a filtration system is an important consideration, evaluating long-term maintenance and operational expenses is equally crucial. Some filtration systems, such as self-cleaning filters, require minimal maintenance and reduce downtime, making them a cost-effective choice for continuous operations. Others, like disposable cartridge filters, may have lower upfront costs but require frequent replacements, leading to higher long-term expenses.
Consider the ease of maintenance when selecting a filtration system. Systems with user-friendly designs, such as quick-change cartridges or accessible filter housings, simplify routine maintenance and reduce labor costs. Additionally, evaluate the energy consumption of the filtration system, as energy-efficient models can significantly lower operational expenses over time. By factoring in both initial and ongoing costs, you can choose a filtration system that delivers the best value while meeting the specific needs of your cooling water application.
Maintenance Tips for Filtration Systems
Regular Inspections: Identifying Clogs, Leaks, and Wear
Consistent inspections are essential for keeping filtration systems in optimal condition. Over time, filters can become clogged with debris, reducing water flow and system efficiency. Regularly checking for blockages ensures that contaminants are removed before they cause significant issues. Additionally, inspect filter housings and connections for leaks, as even small leaks can lead to water loss and reduced system performance. Look for signs of wear on components like seals, gaskets, and filter media, as these parts are prone to degradation over time. Addressing these issues promptly prevents minor problems from escalating into costly repairs or system downtime.
To streamline inspections, create a maintenance checklist that includes all critical components of the filtration system. This ensures that no part is overlooked and helps establish a routine that keeps the system running smoothly. Regular inspections not only extend the lifespan of the filtration system but also improve its overall reliability.
Filter Replacement Schedule: Following Manufacturer Guidelines
Replacing filters on time is crucial for maintaining the effectiveness of the filtration system. Overused filters lose their ability to capture contaminants, allowing impurities to bypass the system and compromise water quality. To avoid this, follow the replacement schedule recommended by the manufacturer. This schedule is typically based on factors such as the type of filter, the volume of water processed, and the level of contamination in the water.
For systems with multiple filtration stages, ensure that each filter is replaced according to its specific requirements. For example, pre-filters may need more frequent replacements than fine filters or membranes. Keeping a log of filter replacements helps track usage and ensures that replacements are done on time. By adhering to a proper replacement schedule, you can maintain consistent water quality and prevent unnecessary strain on the system.
System Cleaning: Removing Sediment and Debris
Cleaning the filtration system is an essential part of maintenance, especially for systems that handle high levels of sediment or organic matter. Over time, sediment and debris can accumulate in filter housings, reducing their capacity and efficiency. Regular cleaning prevents this buildup and ensures that the system operates at peak performance. For example, backwashing is a common cleaning method for certain types of filters, such as sand or multimedia filters, and helps flush out trapped particles.
In addition to cleaning the filters themselves, pay attention to the filter housings and other components. Remove any debris or residue that may have settled in the housings, as this can interfere with the proper sealing of filters and lead to leaks. Cleaning the system not only improves its efficiency but also extends the lifespan of its components, reducing the need for frequent replacements.
Monitor Performance: Tracking Pressure Drops and Flow Rates
Monitoring the performance of the filtration system is key to identifying potential issues before they affect operations. Sensors and gauges can provide real-time data on critical parameters such as pressure drops and flow rates. A sudden drop in pressure or a decrease in flow rate often indicates a clogged filter or another issue within the system. By tracking these metrics, operators can take corrective action promptly, preventing further complications.
Advanced filtration systems may include automated monitoring features that send alerts when performance deviates from normal levels. These systems simplify maintenance by providing actionable insights and reducing the need for manual checks. Whether using basic gauges or advanced sensors, consistent performance monitoring ensures that the filtration system remains efficient and reliable, minimizing downtime and maintenance costs.
Innovations in Cooling Water Filtration
Smart Filtration Systems: Real-Time Monitoring and Predictive Maintenance
The integration of IoT (Internet of Things) technology into filtration systems has revolutionized the way cooling water is managed. Smart filtration systems are equipped with sensors and connectivity features that enable real-time monitoring of critical parameters, such as pressure, flow rate, and water quality. These systems provide instant alerts when performance deviates from optimal levels, allowing operators to address issues before they escalate. For example, a sudden increase in pressure drop might indicate a clogged filter, prompting timely maintenance to prevent system inefficiencies.
Beyond real-time monitoring, smart systems also support predictive maintenance by analyzing historical data to identify patterns and predict potential failures. This proactive approach reduces unplanned downtime and extends the lifespan of filtration components. Additionally, many IoT-enabled systems can be integrated with centralized control platforms, giving operators remote access to system performance data. This level of automation and insight not only improves operational efficiency but also reduces labor costs and enhances overall system reliability.
Eco-Friendly Solutions: Reusable Filters and Energy-Efficient Designs
As industries prioritize sustainability, eco-friendly filtration solutions have gained significant traction. Reusable filters, such as backwashable or self-cleaning filters, are designed to minimize waste by eliminating the need for frequent replacements. These filters can be cleaned and reused multiple times, reducing the environmental impact associated with disposable filter cartridges. For instance, self-cleaning filters use automated mechanisms to remove trapped particles, ensuring consistent performance without generating excessive waste.
Energy-efficient filtration systems are another key innovation, designed to reduce power consumption while maintaining high levels of performance. These systems often feature optimized flow designs and low-resistance filter media, which minimize energy usage during operation. By combining reusable filters with energy-efficient designs, industries can achieve their sustainability goals while lowering operational costs. Such solutions not only benefit the environment but also align with regulatory requirements and corporate social responsibility initiatives.
Advanced Materials: High-Performance Filters for Extreme Conditions
The development of advanced materials has significantly enhanced the capabilities of filtration systems, particularly for applications in extreme conditions. High-performance filters made from materials like stainless steel, ceramic, or advanced polymers are designed to withstand high temperatures, corrosive environments, and high-pressure operations. For example, ceramic filters are highly durable and resistant to chemical degradation, making them ideal for industries such as oil and gas or chemical processing.
In addition to durability, advanced materials improve filtration efficiency by offering superior contaminant capture capabilities. Nanofiber membranes, for instance, provide exceptional filtration performance by capturing particles at the submicron level while maintaining high flow rates. These materials are particularly useful in applications where water quality requirements are stringent, such as pharmaceutical manufacturing or power generation. By leveraging advanced materials, filtration systems can deliver reliable performance even in the most demanding environments, ensuring consistent water quality and system efficiency.
Real-World Applications
Power Plants: Preventing Scaling in Cooling Towers
Power plants rely heavily on cooling water systems to regulate temperatures in turbines, condensers, and other critical equipment. Without proper filtration, contaminants like dissolved minerals, sediment, and debris can accumulate in cooling towers, leading to scaling and fouling. Scaling, caused by the precipitation of minerals such as calcium carbonate, creates hard deposits on heat exchanger surfaces, reducing heat transfer efficiency and increasing energy consumption. Over time, this buildup can lead to equipment failure, unplanned downtime, and costly repairs.
Filtration systems in power plants are designed to remove these impurities before they cause damage. For example, sand filters or multimedia filters are commonly used to capture suspended solids, while chemical treatments may be combined with filtration to prevent scaling. By maintaining clean cooling water, power plants can optimize heat transfer, reduce energy usage, and extend the lifespan of their equipment. This not only improves operational efficiency but also supports compliance with environmental regulations by minimizing water waste and chemical discharge.
Pharmaceuticals: Ensuring Sterility in Production Processes
In the pharmaceutical industry, cooling water plays a vital role in maintaining precise temperature control during the production of medicines, vaccines, and other healthcare products. However, the presence of contaminants in cooling water can compromise sterility and lead to product contamination. Microorganisms, organic matter, and suspended solids are common impurities that must be removed to ensure the safety and efficacy of pharmaceutical products.
Filtration systems tailored for pharmaceutical applications often include fine filters or ultrafiltration membranes capable of capturing microscopic particles and bacteria. In some cases, additional sterilization methods, such as UV disinfection, are integrated into the system to eliminate any remaining microorganisms. By ensuring the purity of cooling water, filtration systems help maintain strict quality standards, prevent cross-contamination, and support regulatory compliance. This is especially critical in an industry where even minor deviations in water quality can have significant consequences for product safety and patient health.
Food and Beverage: Maintaining Product Safety and Quality
The food and beverage industry depends on cooling water for various processes, including pasteurization, refrigeration, and equipment cooling. Contaminated cooling water can pose serious risks to product safety and quality, as impurities like bacteria, organic matter, and sediments can come into contact with food products or processing equipment. For instance, biofilm formation in cooling systems can harbor harmful pathogens, leading to potential foodborne illnesses and product recalls.
To address these challenges, filtration systems in the food and beverage sector are designed to remove a wide range of contaminants. High-efficiency filters, such as activated carbon or pleated filters, are commonly used to capture fine particles and organic compounds. Additionally, regular maintenance and monitoring ensure that the filtration system operates effectively, preventing contamination and maintaining consistent water quality. By safeguarding cooling water, these systems help manufacturers uphold stringent hygiene standards, protect consumer health, and preserve the flavor, texture, and overall quality of their products.
Conclusion
Filtration plays a vital role in optimizing process cooling water systems by protecting equipment, improving efficiency, and reducing operational costs. Investing in high-quality filtration solutions ensures long-term performance and sustainability while addressing the unique challenges of each application. For the best results, consult experts to design a filtration system tailored to your specific needs.
