Pleated filter cartridges are among the most versatile and efficient filtration solutions available today. Found in everything from municipal water treatment plants to pharmaceutical cleanrooms, these filters play a critical role in maintaining purity and process efficiency across industries.
While they may look similar at first glance, not all pleated filters are the same. Different materials, pore sizes, and construction methods make each type suitable for specific applications—whether it’s filtering drinking water, protecting sensitive machinery, or ensuring sterile conditions in medical manufacturing.
What are the different types of pleated filter cartridges, and how do you select the right one? Let’s examine their key variations, materials, and ideal use cases.
What is a Pleated Filter Cartridge?
A pleated filter cartridge is a cylindrical filtration device designed with folds or pleats in its media. These pleats significantly increase the surface area, allowing the filter to capture more particles while maintaining a compact size. Typically made from materials such as polyester, polypropylene, or specialized membranes, pleated filters are used to remove contaminants from liquids or gases. Their design ensures consistent performance, making them suitable for a wide range of applications, including water purification, air filtration, and industrial processes.
Benefits of Using Pleated Filters
Pleated filters offer several advantages over other filtration options. Their expanded surface area allows for higher dirt-holding capacity, reducing the frequency of replacements and maintenance. They provide efficient filtration by capturing both large and fine particles, ensuring improved fluid or air quality. Additionally, pleated cartridges maintain steady flow rates and low-pressure drops, enhancing system performance and energy efficiency. These benefits make them a cost-effective and reliable choice for various filtration needs.
Applications of Pleated Filter Cartridges
The versatility of pleated filters makes them suitable for a wide range of applications. In water treatment, they are used to remove sediments and impurities, ensuring the production of clean and safe water. In air filtration systems, pleated cartridges capture dust, pollen, and other airborne particles, improving indoor air quality. Industrial sectors, such as food processing, pharmaceuticals, and chemical manufacturing, also rely on pleated filters for their ability to handle demanding filtration tasks while maintaining consistent performance.
In conclusion, pleated filter cartridges are an efficient and adaptable solution for diverse filtration requirements, offering superior performance and reliability across multiple applications.
Types of Pleated Filter Cartridges
1. Polypropylene Pleated Filters
Polypropylene pleated filters are a versatile and reliable solution for a wide range of filtration needs. Known for their durability and chemical resistance, these filters are designed to deliver high performance in demanding environments. Their unique properties make them a preferred choice across various industries, including water treatment, chemical processing, and food and beverage production. Below is a detailed breakdown of their key features, applications, and benefits.
Key Features
- Material: Constructed from hydrophobic polypropylene, these filters are inherently water-repellent, making them highly effective in applications where moisture resistance is essential.
- Pore Size Range: Available in a variety of pore sizes, typically ranging from 1 micron to 100 microns, they offer flexibility in capturing particles of different sizes, from fine sediments to larger contaminants.
- Chemical Resistance: Polypropylene filters exhibit excellent resistance to a wide range of chemicals, including acids, alkalis, and solvents. This ensures their structural integrity and performance even when exposed to aggressive liquids.
Best For
- Water Filtration: Ideal for removing sediment, rust, and suspended solids, these filters help ensure clean and safe water for residential, commercial, and industrial use.
- Chemical Processing: Their resistance to harsh chemicals makes them suitable for filtering aggressive liquids without degradation, ensuring consistent performance in chemical manufacturing and processing.
- Food & Beverage: Commonly used for pre-filtration of syrups, oils, and dairy products, polypropylene pleated filters help maintain product quality and safety by effectively removing impurities.
Why It Matters
Polypropylene pleated filters stand out for their cost-effectiveness and durability. Their hydrophobic nature and chemical resistance make them particularly valuable in applications where exposure to moisture or aggressive substances is a concern. Additionally, their extended lifespan and high dirt-holding capacity reduce maintenance and replacement costs, making them a practical and economical choice for various industries.
In summary, polypropylene pleated filters combine efficiency, reliability, and adaptability, making them an indispensable component in filtration systems across multiple sectors.
2. PTFE (Teflon) Pleated Filters
PTFE (polytetrafluoroethylene), commonly known as Teflon, pleated filters are engineered for the most demanding filtration applications. Renowned for their exceptional chemical and thermal resistance, these filters are designed to perform in extreme conditions where other materials may fail. Their advanced properties make them indispensable in industries requiring sterile, precise, and high-temperature filtration. Below is a comprehensive overview of their features, applications, and significance.
Key Features
- Material: Constructed from a hydrophobic PTFE membrane, these filters are highly resistant to water and moisture, ensuring reliable performance in both liquid and gas filtration. The PTFE material is also non-reactive, making it suitable for handling aggressive chemicals.
- Pore Size Range: With pore sizes as fine as 0.1 microns, PTFE pleated filters provide absolute filtration, effectively capturing even the tiniest particles and microorganisms. This precision makes them ideal for critical applications requiring ultra-pure results.
- Temperature Resistance: PTFE filters can withstand extreme temperatures, operating effectively at up to 260°C (500°F). This high thermal tolerance ensures their durability and performance in environments involving hot gases or high-temperature processes.
Best For
- Pharmaceuticals: PTFE pleated filters are essential for sterile filtration in pharmaceutical production, including the filtration of injectables, sterile air, and gases in cleanroom environments. Their ability to maintain sterility and prevent contamination is critical in this industry.
- Semiconductor Manufacturing: These filters are widely used for ultra-pure water and chemical filtration in semiconductor production, where even trace contaminants can compromise product quality and performance.
- High-Temperature Gas Filtration: PTFE filters excel in filtering hot air and corrosive gas streams, making them ideal for applications in chemical processing, power plants, and other industries requiring high-temperature filtration solutions.
Why It Matters
PTFE pleated filters are unmatched in their ability to handle extreme chemical and thermal conditions. Their hydrophobic nature ensures reliable performance in both liquid and gas filtration, while their fine pore sizes provide absolute filtration for critical applications. These filters are not only durable but also highly efficient, reducing the risk of contamination and ensuring consistent results in industries where precision and reliability are paramount.
In conclusion, PTFE pleated filters are a vital component in industries requiring the highest levels of chemical resistance, thermal stability, and filtration precision. Their ability to perform under extreme conditions makes them an invaluable solution for applications where failure is not an option.
3. Glass Fiber Pleated Filters
Glass fiber pleated filters are highly efficient filtration solutions designed to capture fine particles while maintaining excellent airflow. Composed of advanced glass microfiber materials, these filters are designed for applications that require high dirt-holding capacity and reliable performance. Their unique properties make them indispensable in industries such as HVAC, oil and gas, and power generation. Below is a detailed exploration of their features, applications, and importance.
Key Features
- Material: Made from fine glass microfibers, these filters are designed to provide exceptional filtration efficiency. The intricate structure of the glass fibers enables the capture of fine particles while minimizing resistance to airflow.
- Pore Size Range: With pore sizes ranging from 0.3 to 70 microns, glass fiber pleated filters offer flexibility in addressing a wide range of filtration needs, from capturing microscopic contaminants to larger particulates.
- High Dirt-Holding Capacity: These filters are capable of trapping significant amounts of fine particles, reducing the frequency of replacements and ensuring longer operational life. This feature is particularly valuable in environments with high particulate loads.
Best For
- HVAC Systems: Glass fiber pleated filters are widely used in heating, ventilation, and air conditioning systems for high-efficiency air filtration. They effectively capture dust, pollen, and other airborne particles, improving indoor air quality and protecting HVAC equipment.
- Oil & Gas: In the oil and gas industry, these filters are essential for removing particulates from fuels, lubricants, and other fluids. Their ability to handle fine contaminants ensures the protection and efficiency of critical equipment.
- Power Plants: Glass fiber filters are commonly used for turbine intake air filtration in power plants. By capturing fine particles, they help maintain turbine performance, reduce wear and tear, and extend the lifespan of expensive machinery.
Why It Matters
Glass fiber pleated filters are a crucial component in applications where capturing fine particles and maintaining high airflow are essential. Their ability to trap large amounts of contaminants without compromising airflow makes them ideal for air-intensive systems. Additionally, their high dirt-holding capacity reduces maintenance requirements, improving operational efficiency and lowering costs over time.
In summary, glass fiber pleated filters combine superior filtration performance with durability and efficiency, making them a trusted choice for industries that demand reliable air and fluid filtration. Their role in maintaining clean air and protecting equipment underscores their importance in a wide range of applications.

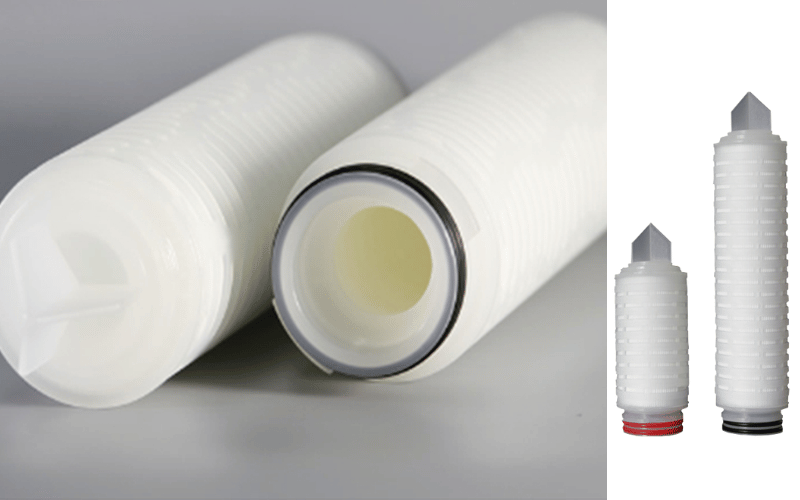

4. Nylon Pleated Filters
Nylon pleated filters are highly specialized filtration solutions designed for applications requiring precision, reliability, and compatibility with sensitive materials. Constructed with hydrophilic nylon membranes, these filters excel in biological, laboratory, and industrial settings where maintaining purity and performance is critical. Below is a detailed overview of their features, applications, and significance.
Key Features
- Material: Made from hydrophilic nylon membranes, these filters naturally attract water, ensuring efficient filtration in aqueous solutions. The nylon material is also durable and resistant to a wide range of chemicals, making it suitable for demanding environments.
- Pore Size Range: With pore sizes ranging from 0.2 to 10 microns, nylon pleated filters provide precise filtration, effectively capturing fine particles, microorganisms, and other contaminants. This versatility allows them to meet the stringent requirements of various applications.
- Protein Binding Resistance: Nylon membranes exhibit low protein binding, which is essential for biological and medical applications. This property ensures that proteins and other sensitive molecules remain intact during filtration, preserving the integrity of the filtered solution.
Best For
- Biopharmaceuticals: Nylon pleated filters are widely used in the biopharmaceutical industry for filtering cell cultures, biological buffers, and other sensitive solutions. Their low protein binding ensures that critical biological components are not lost or altered during the filtration process.
- Laboratory Use: In laboratory settings, these filters are ideal for sterilizing solutions, solvents, and reagents. Their ability to provide sterile and particle-free results makes them indispensable for research and analytical applications.
- Electronics: Nylon filters play a crucial role in the electronics industry, particularly in the production of ultrapure water for chip manufacturing. Their precision and reliability help ensure the purity required for high-performance semiconductor production.
Why It Matters
Nylon pleated filters are uniquely suited for applications where maintaining the integrity of sensitive materials is paramount. Their hydrophilic nature ensures efficient filtration of aqueous solutions, while their low protein binding prevents the loss of critical biological components. Additionally, their durability and chemical resistance make them a reliable choice for both laboratory and industrial use.
In conclusion, nylon pleated filters offer a combination of precision, compatibility, and efficiency, making them an essential tool in biopharmaceuticals, laboratories, and high-tech manufacturing. Their ability to deliver consistent and reliable results underscores their importance in applications where purity and performance cannot be compromised.

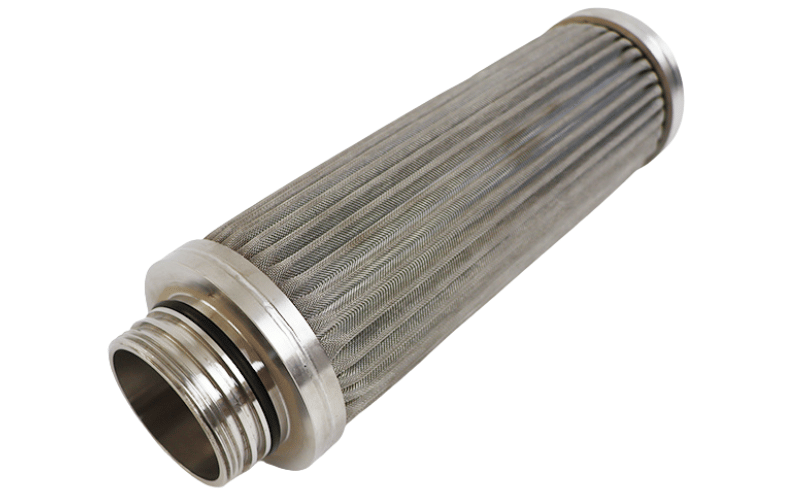

5. Stainless Steel Pleated Filters
Stainless steel pleated filters are robust and versatile filtration solutions designed to withstand the most demanding industrial environments. Constructed from high-grade stainless steel mesh, these filters are known for their durability, reusability, and ability to handle extreme conditions. Their unique properties make them indispensable in industries such as chemical processing, oil and gas, and aerospace. Below is a detailed exploration of their features, applications, and significance.
Key Features
- Material: Made from woven or sintered stainless steel mesh, these filters provide exceptional strength and resistance to corrosion, high temperatures, and mechanical stress. The stainless steel construction ensures long-lasting performance even in harsh operating conditions.
- Pore Size Range: With pore sizes ranging from 5 to 200 microns, stainless steel pleated filters offer flexibility in capturing a wide range of particle sizes, from fine contaminants to larger debris. This adaptability makes them suitable for various filtration needs.
- Reusable & Cleanable: One of the standout features of stainless steel filters is their reusability. They can be cleaned through backflushing, chemical washing, or autoclaving, significantly reducing replacement costs and waste. This makes them an eco-friendly and cost-effective option for long-term use.
Best For
- Chemical Processing: Stainless steel pleated filters are ideal for handling corrosive or high-temperature liquids in chemical processing applications. Their resistance to aggressive chemicals and extreme heat ensures reliable performance and longevity in challenging environments.
- Oil & Gas: In the oil and gas industry, these filters are used to remove contaminants from hydraulic fluids, fuel, and lubricants. Their durability and ability to handle high pressures make them essential for maintaining the efficiency and safety of critical equipment.
- Aerospace: Stainless steel filters play a vital role in protecting hydraulic systems in aerospace applications. Their ability to withstand high pressures and extreme conditions ensures the reliability and performance of hydraulic components in aircraft and spacecraft.
Why It Matters
Stainless steel pleated filters are unmatched in their ability to deliver durability, efficiency, and reusability in harsh industrial environments. Their robust construction allows them to handle extreme temperatures, corrosive substances, and high-pressure systems without compromising performance. Additionally, their cleanable and reusable design reduces operational costs and environmental impact, making them a sustainable choice for long-term filtration needs.
In summary, stainless steel pleated filters are a reliable and cost-effective solution for industries requiring heavy-duty filtration. Their combination of strength, versatility, and reusability ensures consistent performance in even the most demanding applications, solidifying their importance in industrial filtration systems.
Comparison of Five Types of Pleated Filter Cartridges
| Filter Type | Material | Pore Size Range | Key Features | Best Applications | Why It Matters |
|---|---|---|---|---|---|
| Polypropylene | Hydrophobic polypropylene | 1 to 100 microns | Excellent chemical resistance; cost-effective; durable | Water filtration, chemical processing, food & beverage pre-filtration | Ideal for moisture-resistant applications and aggressive liquid filtration |
| PTFE (Teflon) | Hydrophobic PTFE membrane | As fine as 0.1 microns | High chemical and thermal resistance; withstands up to 260æ³C (500æ³F) | Pharmaceuticals, semiconductor manufacturing, high-temperature gas filtration | Perfect for critical industries requiring sterile, high-temperature, or ultra-pure filtration |
| Glass Fiber | Fine glass microfibers | 0.3 to 70 microns | High dirt-holding capacity; excellent fine particle capture | HVAC systems, oil & gas, power plants | Ensures superior fine particle capture while maintaining high airflow |
| Nylon | Hydrophilic nylon membrane | 0.2 to 10 microns | Low protein binding; durable; compatible with aqueous solutions | Biopharmaceuticals, laboratory use, ultrapure water filtration for electronics | Ideal for sensitive biological and medical filtration applications |
| Stainless Steel | Woven or sintered stainless steel mesh | 5 to 200 microns | Reusable and cleanable; withstands high temperatures and pressures | Chemical processing, oil & gas, aerospace | Offers unmatched durability and reusability in harsh industrial environments |
This table provides a clear and detailed comparison of the five types of pleated filter cartridges, highlighting their materials, features, applications, and unique advantages.
Cartridge Filter Features
Cartridge filters are essential components in modern filtration systems, offering a balance of efficiency, versatility, and reliability. Their design and material composition play a critical role in determining their performance across various applications. This overview examines the materials used in pleated filters, explores the functionality of depth cartridges, and highlights the differences between pleated and wound filters to provide a comprehensive understanding of their features and uses.
Materials Used in Pleated Filters
Pleated filters are constructed from a variety of materials, each selected for its specific properties and compatibility with different applications. Common materials include polyester, polypropylene, nylon, and PTFE (also known as Teflon). These materials are chosen for their durability, chemical resistance, and ability to handle varying temperatures and pressures. The pleated design maximizes the surface area, allowing for efficient particle capture and extended filter life. This makes pleated filters suitable for a wide range of applications, including water purification, air filtration, and industrial processes.
Depth Cartridges and Their Applications
Depth cartridges are designed to trap contaminants throughout the thickness of the filter media, rather than just on the surface. Typically made from materials like melt-blown polypropylene or string-wound fibers, these filters are ideal for capturing larger particles and handling high sediment loads. Depth filters are commonly used in applications such as pre-filtration in water treatment, chemical processing, and food and beverage production, where high dirt-holding capacity is essential.
Comparing Pleated and Wound Filters
Pleated and wound filters differ significantly in their design and functionality. Pleated filters are surface filters that capture particles on the outer layer of the media, offering high filtration efficiency and consistent flow rates. In contrast, wound filters, a type of depth cartridge, are constructed by wrapping fibers around a core, allowing them to trap particles throughout the filter’s depth. While pleated filters are better suited for fine filtration and applications requiring high flow rates, wound filters excel in handling heavy sediment loads and are often more cost-effective for less demanding tasks.
In summary, cartridge filters, including pleated and depth designs, offer tailored solutions for a wide range of filtration needs. Understanding the materials, features, and differences of various filters ensures the selection of the most effective one for specific applications.
Frequently Asked Questions
Q: What are the different types of pleated filter cartridges?
A: Pleated filter cartridges are available in various types, including those made from polyester, polypropylene, and membrane-based materials. Each type is tailored for specific filtration applications, offering unique features to optimize efficiency and lifespan. The choice of cartridge depends on factors such as the desired micron rating and the type of contaminants being filtered.
Q: How does the pleated design improve filtration efficiency?
A: The pleated design increases the surface area of the filter media, enhancing filtration efficiency. This expanded surface area enables higher flow rates, longer service life, and enhanced contaminant capture. Additionally, the pleated structure reduces the pressure required for effective filtration, making it more energy-efficient.
Q: What is the micron rating of a pleated filter cartridge?
A: The micron rating indicates the smallest particle size a pleated filter cartridge can capture. For instance, a 1-micron cartridge can filter particles as small as 1 micron, making it ideal for applications that require the removal of fine contaminants, such as dust and sediment.
Q: What materials are pleated filter cartridges made from?
A: Common materials for pleated filter cartridges include polyester, polypropylene, and cellulose. These materials are selected for their durability, filtration efficiency, and compatibility with various systems and applications. The choice of material directly impacts the filter’s performance and suitability for specific applications.
Q: What is the role of the end cap in pleated filter cartridges?
A: The end cap secures the filter media and ensures a tight seal within the filtration system, preventing unfiltered water from bypassing the filter. The material of the end cap can vary, affecting its compatibility with different fluids and operating conditions.
Q: How do I choose the right type of sediment filter?
A: Selecting the right sediment filter depends on the contaminants present in the water and the desired level of filtration. Consider factors such as micron rating, filter size, and application. For example, a 5-micron pleated filter is effective for larger particles, while finer filters are better for smaller sediments.
Q: What is the difference between depth filters and surface filters?
A: Depth filters trap contaminants throughout the thickness of the media, making them suitable for high sediment loads and larger volumes of water. Surface filters, on the other hand, capture particles on the media’s surface, offering higher efficiency for smaller particles but with a higher likelihood of clogging.
Q: What is the lifespan of pleated water filter cartridges?
The lifespan of pleated water filter cartridges depends on several factors, including water quality, flow rate, and contaminant levels. Regular monitoring and timely replacement are crucial for maintaining optimal filtration. Always use replacement cartridges that match the original specifications for consistent performance.
Q: Can pleated filter cartridges be used in various industries?
A: Yes, pleated filter cartridges are highly versatile and widely used across various industries, including water treatment, food and beverage, pharmaceuticals, and chemical processing. Their efficient design and adaptability make them suitable for a wide range of filtration needs across various applications.
The Bottom Line
From polypropylene to PTFE, each type of pleated filter cartridge serves a distinct purpose in modern filtration systems. The right choice depends on factors like chemical compatibility, temperature resistance, pore size requirements, and industry-specific regulations.
Whether you need to filter drinking water, protect sensitive pharmaceutical processes, or handle aggressive industrial chemicals, there’s a pleated filter cartridge engineered for your exact needs. By understanding these differences, you can optimize performance, reduce maintenance costs, and ensure consistent filtration quality.
Choose wisely—your system’s efficiency and longevity depend on selecting the right pleated filter cartridge for the job.
