Choosing the correct filter cartridge is crucial for achieving efficient and reliable filtration in any application. This article explores the key differences between string-wound and melt-blown filters, providing valuable insights to help readers make an informed decision tailored to their specific filtration needs.

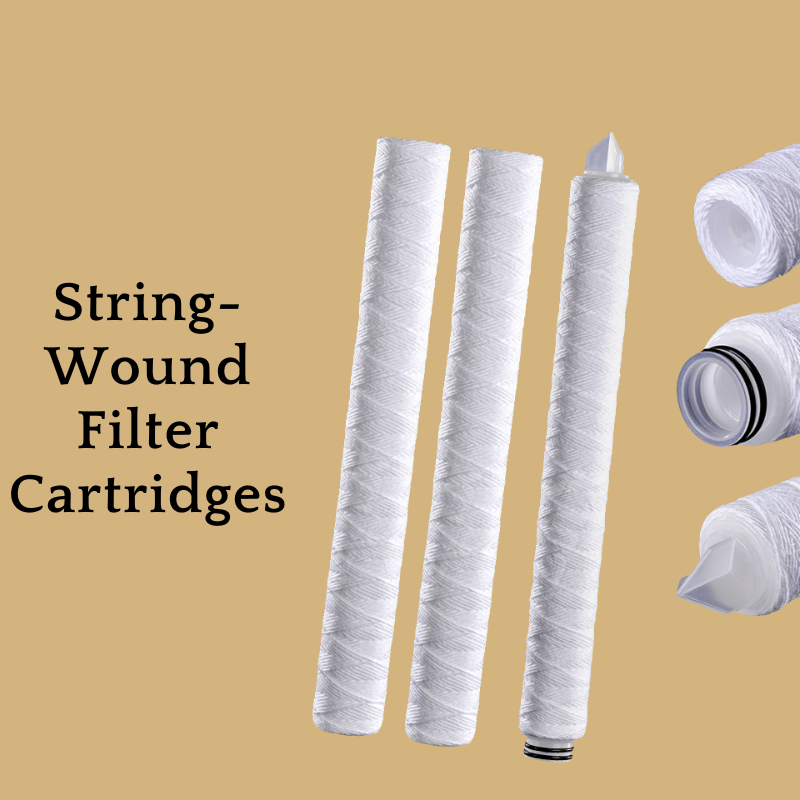

What Are String-Wound Filter Cartridges?
String-wound filter cartridges are cylindrical filtration devices designed to remove contaminants from liquids by trapping particles within their tightly wound fibers. These filters are constructed with a central core, typically made of materials like stainless steel or polypropylene, which provides structural support. Around this core, long fibers are meticulously wound in a precise pattern to create a dense, layered filtration medium. The winding process enables a gradient density structure, where the outer layers capture larger particles and the inner layers trap finer contaminants. This design ensures efficient filtration while maintaining a high dirt-holding capacity.
The tightly wound fibers not only enhance the filter’s ability to capture a wide range of particle sizes but also contribute to its structural integrity. This makes string-wound filters a reliable choice for applications requiring consistent performance under varying conditions.
Durability and Versatility in Filtration Applications
String wound filters are known for their durability and adaptability, making them suitable for a wide range of filtration needs. Their robust construction allows them to withstand high pressures and temperatures, ensuring reliable performance in demanding environments. These filters excel in filtering water, chemicals, and oils, making them a popular choice across various industries, including food and beverage, pharmaceuticals, and petrochemicals. For instance, they are often used in water treatment plants to remove sediments and particulates, or in industrial processes to filter viscous fluids such as oils and resins.
The versatility of string-wound filters lies in their ability to handle both high and low flow rates while maintaining consistent filtration efficiency. This adaptability makes them an excellent solution for applications requiring flexibility and reliability.
Common Materials Used in String Wound Filters
The fibers used in string-wound filters are available in various materials, each chosen for its compatibility with specific applications. Polypropylene is one of the most commonly used materials due to its chemical resistance and ability to handle a wide range of temperatures. It is particularly effective in filtering aggressive chemicals and solvents. Cotton is another popular option, often used in applications involving food-grade liquids or where natural fibers are preferred. For high-temperature or highly corrosive environments, fiberglass is an ideal choice, offering excellent thermal stability and resistance to chemical degradation.
By selecting the appropriate material, string wound filters can be tailored to meet the unique requirements of different industries and applications. This flexibility, combined with their durability and efficient design, makes them a trusted solution for a wide range of filtration challenges.
What Are Melt-Blown Filter Cartridges?
Melt-blown filter cartridges are a type of depth filter made from thermoplastic polymers, most commonly polypropylene. These filters are created through a specialized manufacturing process known as melt blowing. During this process, the polymer material is melted and extruded through fine nozzles while being subjected to high-velocity hot air. This causes the molten polymer to stretch into ultra-fine fibers, which are then collected onto a rotating drum or conveyor to form a cylindrical filter structure. The resulting filter cartridge is seamless, featuring a gradient density that ensures effective filtration across a wide range of particle sizes.
The melt blowing process is highly controlled, allowing manufacturers to produce filters with specific pore sizes and filtration efficiencies. This precision makes melt blown filters suitable for applications requiring consistent and reliable performance. Additionally, the absence of adhesives or binders in the manufacturing process ensures that these filters are chemically pure and free from contaminants, making them ideal for sensitive applications.
Fine Fiber Structure and High Dirt-Holding Capacity
One of the defining features of melt blown filter cartridges is their fine fiber structure. The fibers are randomly arranged, creating a complex matrix of pores that vary in size. This gradient density design allows the filter to capture larger particles on the outer layers while trapping finer particles in the inner layers. As a result, melt blown filters offer exceptional dirt-holding capacity, enabling them to handle high levels of particulate matter without frequent replacement.
The fine fiber structure also contributes to the filter’s efficiency in removing contaminants. By providing a large surface area for particle capture, melt blown filters can achieve high filtration rates while maintaining low pressure drops. This balance of efficiency and durability makes them a cost-effective solution for industries that require high-performance filtration.
Applications in Key Industries
Melt blown filter cartridges are widely used across various industries due to their versatility and effectiveness. In the water treatment sector, these filters play a crucial role in removing sediments, rust, and other impurities from drinking water, industrial process water, and wastewater. Their ability to handle high flow rates and varying water qualities makes them a preferred choice for both residential and commercial water filtration systems.
In the food and beverage industry, melt blown filters ensure the purity and safety of products by removing contaminants such as particulates, microorganisms, and unwanted flavors. They are commonly used in the production of beverages like beer, wine, and soft drinks, as well as in the processing of edible oils and syrups. The filters’ chemical resistance and absence of binders make them suitable for contact with food-grade materials.
The pharmaceutical industry also relies heavily on melt blown filter cartridges for critical applications. These filters are used to purify water for injection (WFI), remove particulates from liquid drugs, and ensure the sterility of pharmaceutical products. Their ability to meet stringent regulatory standards and provide consistent performance makes them indispensable in this highly regulated sector.

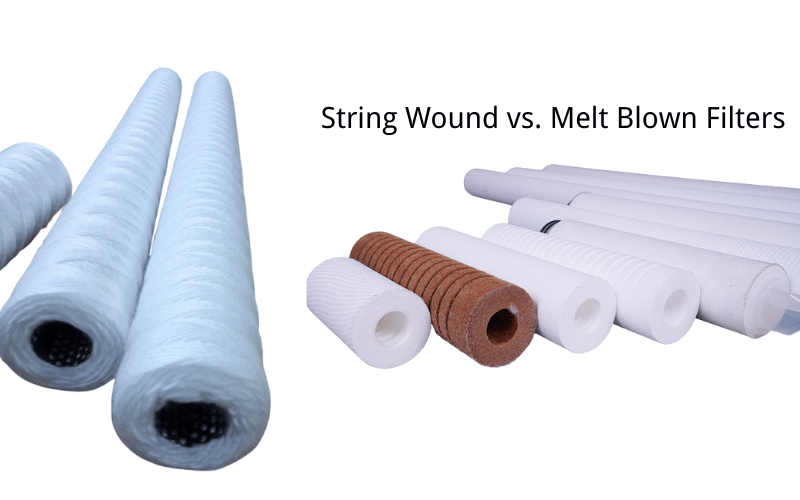

Key Differences Between String Wound and Melt Blown Filters
Structural Comparison: Winding Pattern vs. Dense Fiber Matrix
String wound filters and melt blown filters differ significantly in their structural design. String wound filters are constructed by tightly winding a continuous strand of yarn, typically made from materials like polypropylene or cotton, around a central core. This winding pattern creates a layered structure with varying pore sizes, allowing for depth filtration. The outer layers capture larger particles, while the inner layers trap finer contaminants. This design provides flexibility in customizing the filter for specific applications by adjusting the winding tension and yarn material.
In contrast, melt blown filters feature a dense fiber matrix created through the melt blowing process. The fibers are randomly arranged, forming a seamless, gradient-density structure. This design ensures consistent pore size distribution and eliminates the risk of bypass, which can occur in string wound filters due to uneven winding. The dense fiber matrix also provides a larger surface area for particle capture, enhancing the filter’s overall performance.
Filtration Mechanism: Physical Entrapment vs. Interception and Diffusion
The filtration mechanisms of string wound and melt blown filters are distinct, reflecting their structural differences. String wound filters primarily rely on physical entrapment to capture contaminants. As fluid passes through the filter, particles are trapped within the winding layers based on their size. This mechanism is effective for removing larger particles but may struggle with fine particulate matter due to the variability in pore size.
Melt blown filters, on the other hand, utilize a combination of interception and diffusion to achieve superior filtration. The fine fibers in the melt blown matrix create a tortuous path for fluid flow, increasing the likelihood of particles being intercepted or diffused into the filter material. This mechanism allows melt blown filters to capture a broader range of particle sizes, including submicron contaminants, making them more effective for applications requiring high filtration precision.
Filtration Efficiency: Superior Performance of Melt Blown Filters
When it comes to filtration efficiency, melt blown filters outperform string wound filters, particularly for fine particles. The gradient-density structure of melt blown filters ensures that contaminants are captured progressively, reducing the risk of clogging and extending the filter’s lifespan. This design also enables melt blown filters to achieve higher filtration ratings, often ranging from 1 to 50 microns, making them suitable for critical applications in industries like pharmaceuticals and food processing.
String wound filters, while effective for general-purpose filtration, typically have lower efficiency for fine particles. Their performance depends on the consistency of the winding pattern and the material used, which can vary between manufacturers. As a result, they are better suited for applications where coarse filtration is sufficient, such as pre-filtration in water treatment systems.
Pressure Drop: Lower Resistance in String Wound Filters
String wound filters generally exhibit a lower pressure drop compared to melt blown filters. The open structure of the winding pattern allows fluid to flow more freely, reducing resistance and minimizing energy consumption. This characteristic makes string wound filters an attractive option for systems where maintaining low operating pressure is critical.
Melt blown filters, due to their dense fiber matrix, tend to have a higher initial pressure drop. However, their superior dirt-holding capacity and gradual clogging behavior often offset this drawback, as they require less frequent replacement. For applications where pressure drop is a primary concern, string wound filters may be the preferred choice, despite their lower filtration efficiency.
Durability: Chemical Resistance and Application Suitability
Both string wound and melt blown filters offer good chemical resistance, but their durability varies depending on the application. String wound filters, especially those made from materials like polypropylene, can withstand exposure to a wide range of chemicals, including acids and bases. However, their layered structure may be prone to bypass or unraveling under high-pressure conditions, limiting their use in demanding environments.
Melt blown filters, with their seamless construction, provide greater structural integrity and resistance to chemical degradation. They are less likely to experience bypass or failure, even under high-pressure or high-temperature conditions. This durability makes melt-blown filters ideal for applications requiring consistent performance and reliability, such as pharmaceutical manufacturing and ultrapure water systems.
Cost: Balancing Affordability and Performance
Cost is another key factor that differentiates string-wound and melt-blown filters. String wound filters are generally more affordable, making them a cost-effective solution for applications with less stringent filtration requirements. Their lower price point and ease of customization make them a popular choice for pre-filtration and general-purpose use.
Melt-blown filters, while more expensive, offer higher efficiency and longer service life, which can result in cost savings over time. Their ability to handle fine particles and maintain consistent performance reduces the need for frequent replacements, making them a better investment for critical applications. When choosing between the two, it is essential to consider the specific filtration needs and long-term operational costs of the system.
Applications of String Wound Filters
Municipal Water Treatment: Ensuring Clean and Safe Water
String wound filters play a vital role in municipal water treatment systems, where they are used to remove sediments, rust, and other particulate matter from water sources. These filters are often employed as a pre-filtration step to protect more advanced filtration systems, such as reverse osmosis membranes or ultraviolet disinfection units. By capturing larger particles, string wound filters help extend the lifespan of downstream equipment and improve overall system efficiency.
In addition to sediment removal, string wound filters are effective in reducing turbidity, which is a measure of water clarity. High turbidity can interfere with disinfection processes and affect the taste and appearance of drinking water. By addressing these issues, string wound filters contribute to the delivery of clean, safe, and aesthetically pleasing water to communities. Their affordability and ease of replacement make them a practical choice for municipal water treatment facilities operating on tight budgets.
Oil and Gas Filtration: Protecting Equipment and Ensuring Product Quality
The oil and gas industry relies heavily on string wound filters to maintain the integrity of its operations and ensure the quality of its products. These filters are commonly used in the filtration of drilling fluids, which contain a mixture of water, oil, and various additives. By removing solid particles and debris from the fluid, string wound filters help prevent equipment wear and tear, reducing maintenance costs and downtime.
String wound filters are also employed in the filtration of produced water, a byproduct of oil and gas extraction. Produced water often contains suspended solids, hydrocarbons, and other contaminants that must be removed before the water can be reused or discharged. The robust design of string wound filters allows them to handle the high flow rates and challenging conditions typical of oil and gas operations.
In addition to these applications, string wound filters are used in the filtration of fuels and lubricants to ensure their purity and performance. Contaminants in these fluids can cause engine damage, reduce efficiency, and lead to costly repairs. By providing reliable filtration, string wound filters help protect critical equipment and maintain operational efficiency in the oil and gas sector.
Food and Beverage Production: Enhancing Product Purity and Consistency
String wound filters are widely used in the food and beverage industry to ensure the purity and consistency of products. In juice production, for example, these filters are employed to clarify the liquid by removing pulp, seeds, and other solid particles. This process not only improves the appearance and texture of the juice but also enhances its shelf life by reducing the risk of microbial growth.
In syrup filtration, string wound filters play a crucial role in removing impurities that can affect the taste, color, and quality of the final product. Their ability to handle high-viscosity fluids makes them particularly well-suited for this application. Additionally, the customizable design of string wound filters allows manufacturers to select the appropriate pore size and material for their specific needs, ensuring optimal filtration performance.
The versatility of string wound filters extends to other food and beverage applications, such as beer and wine production, where they are used to remove sediments and improve clarity. Their chemical resistance and food-grade materials make them a safe and reliable choice for use in these sensitive processes. By delivering consistent filtration results, string wound filters help manufacturers meet stringent quality standards and satisfy consumer expectations.
Applications of Melt Blown Filters
Industrial Water Treatment and Purification: Enhancing Water Quality
Melt blown filters are indispensable in industrial water treatment processes, where they are used to remove impurities and ensure water quality for various applications. These filters excel at capturing fine particles, such as sediments, rust, and organic matter, thanks to their gradient-density structure. This design allows them to trap larger contaminants on the outer layers while capturing finer particles in the inner layers, ensuring thorough filtration.
Industries such as power generation, chemical manufacturing, and food processing rely on melt blown filters to purify water used in their operations. For example, in cooling towers, these filters help prevent the buildup of debris that can reduce efficiency and lead to equipment damage. Similarly, in boiler systems, melt blown filters remove particulates that could cause scaling or corrosion, ensuring the longevity and performance of the equipment.
Melt blown filters are also used in wastewater treatment, where they play a critical role in pre-filtration before advanced treatment methods like reverse osmosis or ultrafiltration. By reducing the load on these systems, melt blown filters help lower operational costs and improve overall efficiency. Their ability to handle high flow rates and varying water qualities makes them a versatile and reliable choice for industrial water treatment applications.
Pharmaceutical Manufacturing: Ensuring Purity and Compliance
In pharmaceutical manufacturing, melt blown filters are essential for maintaining the purity and safety of products. These filters are used to remove particulates, microorganisms, and other contaminants from water, solvents, and active pharmaceutical ingredients (APIs). Their fine fiber structure and high filtration efficiency make them ideal for applications requiring stringent quality control.
One critical use of melt blown filters in this industry is the filtration of water for injection (WFI), which must meet strict regulatory standards for purity. These filters ensure that the water is free from particulates and microbial contamination, making it suitable for use in injectable drugs and other sterile products. Additionally, melt blown filters are employed in the production of liquid pharmaceuticals, where they help remove impurities that could compromise the efficacy or safety of the final product.
The pharmaceutical industry also uses melt blown filters in the filtration of air and gases, ensuring that cleanroom environments remain free from airborne contaminants. This is particularly important in the production of sterile drugs and medical devices, where even minor contamination can have serious consequences. By providing reliable and consistent filtration, melt blown filters help pharmaceutical manufacturers meet regulatory requirements and maintain product integrity.
Cleanroom Environments: Air and Fluid Filtration for Contamination Control
Melt blown filters play a vital role in maintaining the cleanliness of cleanroom environments, which are critical for industries such as electronics, biotechnology, and aerospace. These filters are used to purify both air and fluids, ensuring that contaminants do not compromise sensitive processes or products.
In air filtration, melt blown filters are used as pre-filters in HVAC systems to capture dust, pollen, and other airborne particles. Their high dirt-holding capacity and low pressure drop make them an efficient choice for maintaining clean air in controlled environments. For more demanding applications, such as semiconductor manufacturing, melt blown filters are often combined with HEPA or ULPA filters to achieve the highest levels of air purity.
For fluid filtration, melt blown filters are used to remove particulates from process fluids, such as chemicals, solvents, and ultrapure water. Their ability to handle high flow rates and varying fluid viscosities makes them suitable for a wide range of applications. By ensuring the purity of air and fluids, melt blown filters help cleanroom operators maintain compliance with strict industry standards and protect the quality of their products.
How to Choose the Right Filter Cartridge
Assess the Type and Size of Contaminants
The first step in selecting the right filter cartridge is to identify the type and size of contaminants present in your application. Different processes and industries deal with varying impurities, such as sediments, rust, microorganisms, or chemical residues. For instance, water treatment systems may need to remove suspended solids and organic matter, while pharmaceutical manufacturing might require the elimination of submicron particles and bacteria. Conducting a thorough analysis of the fluid or air being filtered will help determine the appropriate pore size and filtration mechanism needed. Filters with a gradient-density structure, like melt blown cartridges, are ideal for capturing a wide range of particle sizes, while string wound filters are better suited for larger particulates.
Consider the Required Filtration Efficiency and Flow Rate
Filtration efficiency and flow rate are critical factors to consider when choosing a filter cartridge. Filtration efficiency refers to the filter’s ability to remove contaminants of a specific size, often expressed as a percentage. Applications requiring high precision, such as pharmaceutical or food production, may demand filters with a high efficiency rating, such as 99% at 1 micron. On the other hand, general-purpose filtration may only require moderate efficiency.
Flow rate, or the volume of fluid that can pass through the filter per unit of time, is equally important. A filter with a low flow rate may cause bottlenecks in the system, while one with an excessively high flow rate might compromise filtration quality. Ensure that the selected filter cartridge can handle the required flow rate without sacrificing performance. For high-flow applications, consider filters with a large surface area or those designed for minimal pressure drop.
Evaluate Operating Conditions Like Temperature and Pressure
Operating conditions, such as temperature and pressure, play a significant role in determining the suitability of a filter cartridge. Some filters, like those made from polypropylene, are designed to withstand high temperatures and pressures, making them ideal for demanding industrial applications. Others, such as cotton-based string wound filters, may be better suited for lower-temperature environments.
It is essential to choose a filter that can maintain its structural integrity and performance under the specific conditions of your system. For example, in high-pressure systems, a filter with a robust construction, such as a melt blown cartridge, may be necessary to prevent collapse or bypass. Similarly, in applications involving high temperatures, ensure that the filter material is heat-resistant to avoid degradation or failure.
Factor in Long-Term Maintenance and Cost
While the initial cost of a filter cartridge is an important consideration, it is equally crucial to evaluate long-term maintenance and operational expenses. Filters with a high dirt-holding capacity, such as melt blown cartridges, may have a higher upfront cost but can reduce replacement frequency and downtime, leading to cost savings over time. Conversely, string wound filters are often more affordable initially but may require more frequent replacements in applications with high contaminant loads.
Additionally, consider the ease of installation and replacement when selecting a filter. Filters that are difficult to replace can increase labor costs and system downtime. Opt for cartridges that are user-friendly and compatible with your existing filtration system to streamline maintenance. By balancing initial costs with long-term performance and maintenance requirements, you can select a filter cartridge that offers the best value for your application.
Innovations in Filter Cartridge Technology
Eco-Friendly Materials for Sustainable Filtration
One of the most significant advancements in filter cartridge technology is the development of eco-friendly materials aimed at reducing environmental impact. Traditional filter cartridges, often made from non-biodegradable plastics, contribute to waste accumulation when disposed of in large quantities. To address this issue, manufacturers are now exploring biodegradable and recyclable materials, such as plant-based polymers and natural fibers, for filter production. These sustainable alternatives not only reduce the environmental footprint but also align with the growing demand for greener industrial practices.
In addition to using eco-friendly materials, some manufacturers are designing reusable filter cartridges that can be cleaned and reinstalled multiple times. This approach minimizes waste generation and lowers long-term costs for users. For example, certain filters now feature washable membranes or replaceable filter media, allowing the core structure to be reused. These innovations are particularly beneficial in industries like water treatment, where large volumes of filters are consumed regularly.
Smart Monitoring Systems for Real-Time Performance Tracking
The integration of smart monitoring systems into filter cartridges represents a groundbreaking leap in filtration technology. These systems use sensors and IoT (Internet of Things) technology to provide real-time data on filter performance, such as pressure drop, flow rate, and contaminant load. By continuously monitoring these parameters, users can identify when a filter is nearing the end of its service life and replace it before it fails, preventing costly downtime or equipment damage.
Smart filters also enable predictive maintenance, allowing operators to plan replacements based on actual usage rather than fixed schedules. This not only optimizes filter usage but also reduces unnecessary replacements, saving both time and resources. For instance, in pharmaceutical manufacturing, where consistent filtration is critical, intelligent monitoring systems ensure that filters are replaced at the right time to maintain product quality and compliance with regulatory standards.
Moreover, some advanced systems are equipped with wireless connectivity, enabling remote monitoring and control. This feature is particularly valuable in large-scale industrial operations, where accessing individual filters can be challenging. By providing actionable insights and enhancing operational efficiency, intelligent monitoring systems are transforming the way filtration systems are managed.
Customizable Designs for Specific Applications
Another notable innovation in filter cartridge technology is the ability to customize designs to meet the unique requirements of specific applications. Traditional filters often come in standard sizes and configurations, which may not be ideal for all use cases. To address this limitation, manufacturers are now offering customizable options, allowing users to tailor filters to their exact needs.
Customizable filters can be designed with specific pore sizes, materials, and structural features to optimize performance for particular contaminants or operating conditions. For example, in the food and beverage industry, filters can be customized to handle high-viscosity fluids, such as syrups, or to meet stringent hygiene standards. Similarly, in the oil and gas sector, filters can be engineered to withstand extreme temperatures and pressures while effectively removing fine particulates.
This level of customization extends to multi-layered filters, which combine different filtration mechanisms in a single cartridge. These hybrid designs can address multiple filtration challenges simultaneously, such as removing both large debris and microscopic contaminants. By offering tailored solutions, customizable filter cartridges enhance efficiency, reduce operational costs, and ensure optimal performance across diverse industries.
Conclusion
String-wound and melt-blown filters differ significantly in their structure, filtration mechanisms, efficiency, and applications. While string-wound filters excel in handling larger particles with lower pressure drops, melt-blown filters offer superior efficiency for removing fine particulates in demanding environments. Choosing the right filter requires a clear understanding of your specific needs, including the type of contaminants present, operating conditions, and long-term maintenance objectives. For optimal results, consult filtration experts who can provide customized solutions tailored to your specific needs.
