High-flow filters are advanced filtration systems designed to handle large volumes of water or fluids efficiently, making them increasingly essential in industrial filtration applications. This article examines their structure, key benefits, and diverse applications, while providing actionable tips to help you select the right high-flow filter for your specific needs.
What Are High-Flow Filters?
High-flow filters are specialized filtration systems engineered to process large volumes of water or other fluids efficiently, making them indispensable in industries that require high-capacity filtration. These filters are designed to handle significant flow rates while maintaining exceptional filtration performance, which reduces the frequency of filter replacements and minimizes system downtime. By streamlining filtration processes, high flow filters help lower labor costs associated with maintenance and operational expenses tied to energy consumption and equipment wear. Their ability to maintain consistent performance under demanding conditions makes them a cost-effective solution for industries like power generation, food and beverage, and pharmaceuticals.
In addition to cost savings, high flow filters enhance operational efficiency by reducing the need for multiple filtration units. A single high-flow filter can often replace several smaller filters, simplifying system design and reducing the footprint of filtration equipment. This consolidation not only saves space but also reduces the complexity of maintenance, further contributing to lower operational costs.
Unique Design Features: Larger Diameters and Pleated Structures
The unique design of high flow filters sets them apart from traditional filtration systems. One of their most notable features is their larger diameter, which allows them to accommodate higher flow rates without compromising filtration efficiency. This design enables the filter to process more fluid in less time, making it ideal for applications where speed and capacity are critical. The larger diameter also reduces the pressure drop across the filter, improving energy efficiency and reducing the strain on pumps and other system components.
Another key feature of high flow filters is their pleated structure, which significantly increases the filtration surface area. The pleats create multiple layers of filter media, allowing the filter to capture a higher volume of contaminants while maintaining a compact design. This increased surface area not only enhances the filter’s capacity but also extends its lifespan by distributing the contaminant load more evenly. As a result, high flow filters require less frequent replacement, further reducing maintenance efforts and costs.
These design innovations make high flow filters a versatile and efficient choice for a wide range of industrial applications. By combining high capacity with durability and ease of maintenance, they provide a reliable solution for meeting the demanding filtration needs of modern industries.
Key Features of High Flow Filters
High Filtration Efficiency: Managing Large Volumes with Minimal Pressure Drop
High flow filters are designed to deliver exceptional filtration efficiency, even when processing substantial volumes of fluid. Their advanced engineering ensures that they can handle high flow rates without causing significant pressure drops, which is critical for maintaining system performance and energy efficiency. The pleated structure of the filter media maximizes the surface area, allowing for the effective capture of contaminants while ensuring a steady flow of fluid. This design minimizes resistance, reducing the workload on pumps and other system components, which in turn lowers energy consumption and operational costs.
Additionally, high flow filters are capable of removing a wide range of impurities, from suspended solids to fine particulates, without compromising flow rates. This makes them ideal for industries where maintaining consistent fluid quality is essential, such as power plants, chemical processing, and food and beverage production. By combining high capacity with low pressure loss, these filters ensure reliable performance in demanding applications.
Durable Materials: Built to Withstand Challenging Conditions
The durability of high flow filters is one of their standout features, as they are constructed from robust materials designed to withstand harsh operating conditions. Common materials include polypropylene, glass fiber, and stainless steel, each chosen for its specific properties. Polypropylene, for example, is resistant to a wide range of chemicals, making it suitable for applications involving corrosive fluids. Glass fiber offers excellent thermal stability and high filtration efficiency, making it ideal for high-temperature environments. Stainless steel provides exceptional strength and durability, ensuring long-lasting performance in systems exposed to high pressures or abrasive particles.
These materials not only enhance the longevity of the filters but also ensure consistent performance over time. Their resistance to wear and tear reduces the frequency of replacements, lowering maintenance costs and minimizing downtime. By utilizing high-quality materials, high-flow filters can operate reliably in a range of industrial settings, from cooling water systems to oil and gas processing.
Customizable Options: Tailored to Meet Specific Needs
High flow filters offer a range of customizable options, allowing them to be tailored to the unique requirements of different applications. Adjustable lengths ensure compatibility with various system sizes, while a wide selection of micron ratings enables precise filtration to meet specific fluid quality standards. For example, filters with lower micron ratings are ideal for capturing fine particles, while higher micron ratings are better suited for removing larger contaminants.
In addition to size and filtration precision, high flow filters can be customized in terms of flow direction. Some systems require inside-to-outside flow, while others operate with outside-to-inside flow, depending on the design of the filtration housing and the nature of the application. These customizable features make high flow filters versatile and adaptable, ensuring they can meet the demands of diverse industries. By offering tailored solutions, these filters provide both efficiency and flexibility, making them a valuable asset in any industrial filtration system.
Technical Specifications
| Options | Parameter |
| Outer Diameter Size | 6inch(152mm) Customizable |
| Lengths | 20inch, 40inch, 60inch Customizable |
| Filter Material | Folded Fiberglass, Folded PP, Meltblown PP |
| Seal Material | Ethylene Propylene Rubber, Silicone Rubber, Nitrile Rubber, and Fluorocarbon Rubber |
| Filtration Precision | 1-100um |
| Operating Temperature | Folded Fiberglass: 121°C |

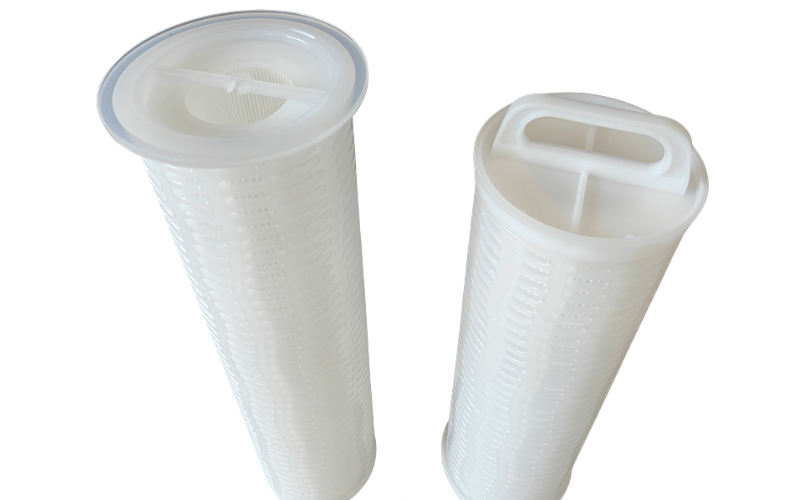

Benefits of High-Flow Filters
Cost Savings: Reducing Cartridge Usage and Maintenance Efforts
High flow filters are designed to minimize operational costs by reducing the number of cartridges required for filtration. Their larger diameter and increased surface area enable a single filter to handle the workload of multiple smaller filters, significantly reducing replacement expenses. This reduction in cartridge usage not only lowers material costs but also decreases the labor required for frequent replacements, making maintenance more manageable and cost-effective. Additionally, the extended lifespan of high flow filters means fewer interruptions for maintenance, allowing operations to run more smoothly and efficiently.
By streamlining maintenance schedules and reducing the need for spare parts, high flow filters provide long-term savings that benefit industries with high filtration demands, such as power generation, chemical processing, and food production. These cost advantages make them an attractive choice for businesses looking to optimize their filtration systems without compromising performance.
Improved Efficiency: Lower Pressure Drops and Extended Service Life
One of the standout benefits of high flow filters is their ability to maintain high filtration efficiency while minimizing pressure drops. The pleated design of the filter media maximizes the surface area, allowing for effective contaminant capture without restricting fluid flow. This ensures that pumps and other system components operate with less strain, reducing energy consumption and enhancing overall system efficiency. Lower pressure drops also contribute to a more stable and consistent filtration process, which is critical for industries that rely on precise fluid quality.
In addition to improved efficiency, high flow filters offer a longer service life compared to traditional filters. Their ability to handle higher contaminant loads without clogging extends the time between replacements, further reducing maintenance requirements. This combination of efficiency and durability makes high flow filters a reliable solution for demanding industrial applications.
Space Optimization: Compact Housings for High Flow Rates
High flow filters are designed to optimize space by delivering high filtration capacity in a compact form. Their ability to process large volumes of fluid with fewer cartridges allows for smaller filter housings, which is particularly beneficial in facilities where space is limited. This compact design simplifies system layouts and reduces the footprint of filtration equipment, freeing up valuable space for other operational needs.
The space-saving benefits of high flow filters are especially advantageous in industries like pharmaceuticals, where cleanroom environments require efficient use of space, or in retrofitting older systems where additional room for equipment may be limited. By combining high capacity with a smaller physical footprint, high flow filters provide a practical solution for maximizing efficiency without requiring extensive modifications to existing systems.
Ease of Use: Quick Installation and Simple Replacement
High flow filters are designed with user convenience in mind, offering quick and straightforward installation and replacement processes. Their larger size and fewer cartridges mean less time spent on filter changes, reducing downtime and labor costs. Many high flow filter systems feature user-friendly designs, such as quick-connect fittings or easy-access housings, which further simplify maintenance tasks.
The ease of use extends to their compatibility with a wide range of filtration housings and systems, making them a versatile choice for various industrial applications. Whether installing a new system or upgrading an existing one, high flow filters provide a hassle-free solution that enhances operational efficiency while minimizing maintenance challenges. This user-friendly approach ensures that businesses can focus on their core operations without being burdened by complex filtration processes.
Applications of High Flow Filters
Water Treatment: Prefiltration for Seawater Desalination
High flow filters play a critical role in water treatment processes, particularly in prefiltration for seawater desalination. Before water reaches reverse osmosis membranes, it must be free of large particles, sediments, and organic matter that could damage or clog the membranes. High flow filters efficiently remove these impurities, ensuring the desalination system operates smoothly and prolonging the lifespan of expensive membranes. Their ability to handle large volumes of water with minimal pressure drop makes them ideal for desalination plants, where high throughput and reliability are essential. By improving the quality of feedwater, these filters enhance the overall efficiency and cost-effectiveness of desalination operations.
Power Plants: Condensate Filtration for System Protection
In power plants, maintaining the purity of condensate water is crucial for protecting turbines, boilers, and other critical equipment. High flow filters are widely used to remove contaminants such as iron oxide, silica, and other particulates from condensate water. These impurities, if left unchecked, can cause scaling, corrosion, and reduced heat transfer efficiency, leading to costly repairs and downtime. High flow filters ensure that condensate water remains clean and free of harmful particles, safeguarding the performance and longevity of power plant systems. Their high capacity and durability make them a reliable choice for the demanding conditions of power generation facilities.
Food and Beverage: Filtering Bottled Water, Juices, and Edible Oils
The food and beverage industry relies on high flow filters to maintain product quality and safety. These filters are used to remove sediments, microorganisms, and other impurities from bottled water, ensuring it meets stringent quality standards. In juice production, high flow filters help eliminate pulp, seeds, and other solids while preserving the flavor and nutritional value of the final product. Similarly, in the processing of edible oils, these filters remove particulates and contaminants to achieve the desired clarity and purity. Their ability to handle large volumes of liquid with precision and efficiency makes high flow filters indispensable in food and beverage manufacturing.
Pharmaceuticals: Filtration of Raw Materials and Solvents
In the pharmaceutical industry, high flow filters are essential for ensuring the purity of raw materials, solvents, and other process fluids. Contaminants such as particulates, microorganisms, and endotoxins can compromise the quality and safety of pharmaceutical products. High flow filters provide a reliable solution for removing these impurities, meeting the strict regulatory standards of the industry. They are commonly used in the filtration of water for injection (WFI), active pharmaceutical ingredients (APIs), and solvents used in drug formulation. Their high efficiency and customizable options make them suitable for a wide range of pharmaceutical applications, from research and development to large-scale production.
Paint and Coatings: Removing Impurities in Production Processes
The paint and coatings industry depends on high flow filters to ensure the consistency and quality of its products. During production, impurities such as dust, pigments, and agglomerates can affect the texture, color, and performance of paints and coatings. High flow filters effectively remove these contaminants, resulting in a smooth and uniform finish. They are also used to filter solvents and resins, ensuring that the raw materials meet the required specifications. By maintaining the purity of production inputs, high flow filters help manufacturers deliver high-quality products while reducing waste and rework. Their ability to handle high volumes of viscous fluids makes them a valuable asset in this industry.

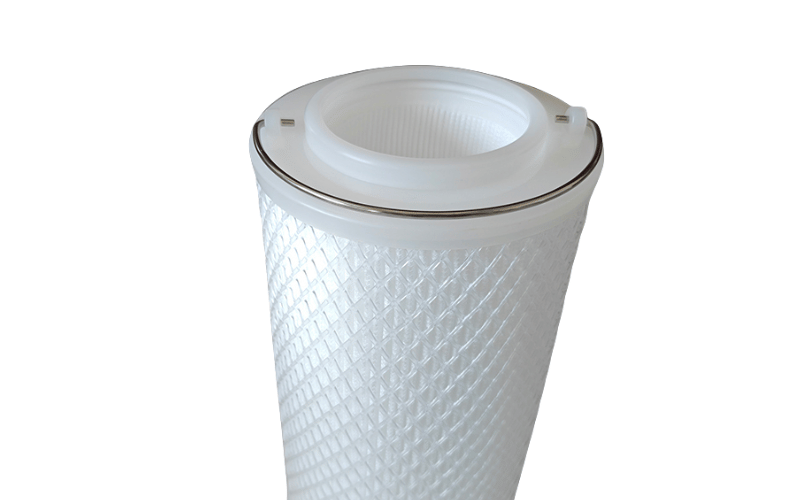

Choosing the Right High Flow Filter
Assess the Type and Volume of Fluid to Be Filtered
Selecting the right high flow filter begins with understanding the type and volume of fluid that needs to be processed. Different fluids, such as water, oils, chemicals, or solvents, have unique properties that influence filtration requirements. For instance, fluids with high levels of suspended solids or viscous liquids may require filters with specific media designed to handle such challenges. Additionally, the volume of fluid to be filtered plays a critical role in determining the size and capacity of the filter. High flow filters are ideal for applications involving large volumes, but ensuring the filter can handle the specific throughput of your system is essential for optimal performance.
When assessing fluid characteristics, consider factors like contamination levels, particle size distribution, and chemical compatibility with the filter material. This evaluation ensures that the chosen filter can effectively remove impurities without degrading or compromising its efficiency over time.
Determine the Required Micron Rating and Flow Rate
The micron rating of a filter determines its ability to capture particles of a specific size, making it a crucial factor in the selection process. For applications requiring fine filtration, such as pharmaceutical production or ultrapure water systems, a lower micron rating is necessary to remove microscopic contaminants. Conversely, processes like prefiltration or bulk fluid handling may benefit from higher micron ratings, which allow for faster flow rates while still capturing larger particles.
Flow rate is another critical consideration, as it directly impacts the efficiency and performance of the filtration system. High flow filters are designed to accommodate substantial flow rates, but it’s important to match the filter’s capacity to the system’s operational requirements. Selecting a filter with an appropriate flow rate ensures consistent performance without causing pressure drops or overloading the system.
Consider Operating Conditions Like Temperature and Pressure
Operating conditions, such as temperature and pressure, significantly influence the performance and durability of high flow filters. Filters must be constructed from materials that can withstand the specific conditions of your application. For example, high-temperature environments may require filters made from stainless steel or glass fiber, while corrosive fluids may necessitate the use of chemically resistant materials like polypropylene.
Pressure ratings are equally important, as filters must be able to handle the system’s operating pressure without deforming or failing. Overlooking these factors can lead to premature filter wear, reduced efficiency, or even system damage. Always verify that the filter’s specifications align with the temperature and pressure conditions of your application to ensure reliable and long-lasting performance.
Evaluate Long-Term Maintenance and Operational Costs
While the upfront cost of a high flow filter is an important consideration, evaluating long-term maintenance and operational expenses is equally critical. Filters with extended service lives and high contaminant-holding capacities reduce the frequency of replacements, lowering labor costs and minimizing downtime. Additionally, filters designed for easy installation and replacement further streamline maintenance processes, saving time and effort.
Energy efficiency is another factor to consider, as filters with low pressure drops reduce the workload on pumps, leading to lower energy consumption. By balancing initial investment with long-term savings, you can select a high flow filter that delivers both cost-effectiveness and reliable performance over its lifespan. Consulting with filtration experts can also help identify the most suitable options for your specific needs, ensuring an optimal balance between performance and cost.
Innovations in High Flow Filtration
Advanced Materials: High-Strength Polypropylene and Ultrasonic Hot Melt Technology
The development of advanced materials has significantly enhanced the performance and durability of high flow filtration systems. High-strength polypropylene has become a popular choice due to its exceptional chemical resistance, lightweight nature, and ability to withstand high temperatures. This material ensures that filters can handle a wide range of fluids, including corrosive chemicals and high-temperature liquids, without degrading or losing efficiency. Its durability also extends the lifespan of the filters, reducing the need for frequent replacements and lowering operational costs.
Ultrasonic hot melt technology is another breakthrough in filter manufacturing. This innovative technique involves bonding filter components without the use of adhesives, creating a seamless and robust structure. By eliminating potential weak points caused by adhesives, ultrasonic hot melt technology enhances the structural integrity of the filter, ensuring consistent performance even under high-pressure conditions. This method also improves the environmental compatibility of filters by reducing the use of potentially harmful bonding agents, making it a sustainable choice for modern filtration systems.
Smart Monitoring Systems: IoT-Enabled Filters for Real-Time Performance Tracking
The integration of IoT technology into high flow filtration systems has revolutionized how industries monitor and manage their filtration processes. IoT-enabled filters come equipped with sensors that track key performance metrics, such as pressure differentials, flow rates, and contaminant levels, in real time. This data is transmitted to centralized control systems or mobile devices, allowing operators to monitor the health of their filtration systems remotely.
Real-time performance tracking enables predictive maintenance, as operators can identify potential issues, such as clogging or pressure drops, before they escalate into costly downtime. For example, a sudden increase in pressure differential might indicate that the filter is nearing its capacity, prompting timely replacement to maintain system efficiency. These smart systems not only improve operational reliability but also optimize maintenance schedules, reducing labor costs and extending the lifespan of filtration components. By leveraging IoT technology, industries can achieve greater control and efficiency in their filtration processes.
Eco-Friendly Designs: Reusable and Energy-Efficient Options
Sustainability has become a key focus in the design of high flow filtration systems, leading to the development of eco-friendly options that minimize environmental impact. Reusable filters, such as those with backwashable or self-cleaning capabilities, reduce waste by eliminating the need for disposable cartridges. These filters can be cleaned and reused multiple times, significantly lowering the volume of waste generated by filtration processes.
Energy-efficient designs further enhance the sustainability of high flow filters. By optimizing flow paths and using low-resistance filter media, these systems reduce energy consumption during operation. For instance, filters with minimal pressure drops require less power to maintain fluid flow, resulting in lower energy costs and a reduced carbon footprint. Additionally, many eco-friendly filters are constructed from recyclable materials, ensuring that they can be disposed of responsibly at the end of their service life.
These innovations in high flow filtration not only address the growing demand for sustainable solutions but also provide industries with cost-effective and efficient options for meeting their filtration needs. By combining advanced materials, smart monitoring systems, and eco-friendly designs, modern high flow filters deliver superior performance while supporting environmental and operational goals.

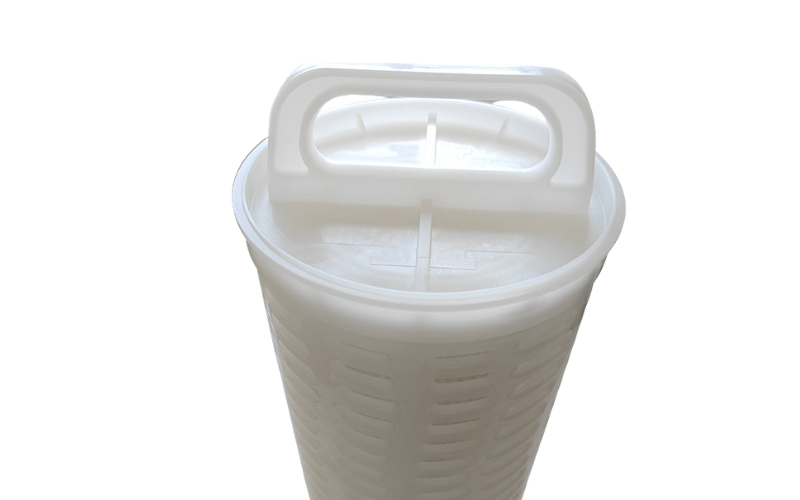

Maintenance Tips for High Flow Filters
Regular Inspections: Identifying Clogs, Leaks, and Wear
Consistent inspections are essential for maintaining the efficiency and longevity of high flow filters. Over time, contaminants such as sediment, debris, and particulates can accumulate, leading to clogs that reduce filtration performance. Regularly checking the filter for blockages ensures that the system operates at optimal capacity. Additionally, inspect for leaks in the filter housing or connections, as these can compromise the filtration process and lead to fluid loss. Wear and tear on filter components, such as seals or gaskets, should also be monitored, as damaged parts can affect the system’s integrity. By conducting routine inspections, you can address minor issues before they escalate into costly repairs or downtime.
Filter Replacement Schedule: Adhering to Manufacturer Guidelines
Following the manufacturer’s recommended replacement schedule is critical for ensuring consistent filtration performance. High flow filters are designed to handle significant contaminant loads, but they have a finite capacity. Waiting too long to replace a filter can result in reduced efficiency, increased pressure drops, and potential damage to downstream equipment. Manufacturers provide specific guidelines based on factors such as the filter’s material, micron rating, and intended application. Adhering to these recommendations helps maintain system reliability and prevents unnecessary strain on pumps and other components. Keeping a log of replacement dates and system performance can further streamline maintenance and ensure timely replacements.
System Cleaning: Removing Sediment and Debris
Cleaning the filtration system, including the filter housing and surrounding components, is an important part of maintenance. Over time, sediment and debris can accumulate not only in the filter itself but also in the housing and piping. This buildup can restrict flow and reduce the overall efficiency of the system. Periodically removing the filter and cleaning the housing with appropriate tools and cleaning agents ensures that the system remains free of obstructions. For reusable filters, follow the manufacturer’s cleaning instructions to avoid damaging the filter media. Proper cleaning not only extends the life of the filter but also ensures consistent performance across filtration cycles.
Monitor Performance: Tracking Pressure Drops and Flow Rates
Monitoring system performance in real time is one of the most effective ways to maintain high flow filters. Sensors that track key metrics, such as pressure drops and flow rates, provide valuable insights into the health of the filtration system. A gradual increase in pressure drop often indicates that the filter is nearing its capacity and requires replacement. Similarly, fluctuations in flow rates can signal potential issues, such as clogs or leaks. By using performance data, operators can implement predictive maintenance strategies, addressing problems before they impact system efficiency. Many modern filtration systems come equipped with IoT-enabled monitoring tools, making it easier to track performance and optimize maintenance schedules.
By combining regular inspections, timely replacements, thorough cleaning, and performance monitoring, you can ensure that high flow filters operate efficiently and reliably. These proactive maintenance practices not only extend the lifespan of the filters but also reduce operational costs and prevent unexpected downtime, making them an essential part of any filtration system management plan.
Real-World Examples
Water Treatment Plants: Enhancing Efficiency in Desalination Processes
A large-scale desalination plant in the Middle East implemented high-flow filters as part of its prefiltration system to enhance the efficiency of its reverse osmosis (RO) membranes. Before the upgrade, the plant experienced frequent membrane fouling due to high levels of suspended solids in the seawater, resulting in increased maintenance costs and downtime. By integrating high-flow filters with advanced pleated media, the plant significantly reduced the load on the RO membranes. The filters efficiently removed sediments and organic matter, extending the lifespan of the membranes and reducing the frequency of chemical cleanings. This change not only improved operational efficiency but also lowered overall water production costs, making the plant more sustainable and cost-effective.
Power Generation: Protecting Equipment with Condensate Filtration
A coal-fired power plant in Asia faced challenges with scaling and corrosion in its boilers and turbines due to impurities in the condensate water. To address this, the plant installed high-flow filters designed to remove fine particulates, such as iron oxide and silica, from the condensate. The filters’ high capacity and low-pressure drop allowed the plant to maintain consistent water quality without disrupting operations. As a result, the plant experienced fewer equipment failures and reduced maintenance costs. The improved condensate quality also enhanced the efficiency of the heat exchange process, contributing to better overall energy output and lower operational expenses.
Food and Beverage Industry: Ensuring Product Quality in Bottled Water Production
A leading bottled water manufacturer in Europe adopted high flow filters to streamline its production process and ensure product quality. The company needed a filtration solution capable of handling large volumes of water while meeting stringent purity standards. High flow filters with a low micron rating were installed to remove sediments, microorganisms, and other impurities from the water. The filters’ ability to process high flow rates without compromising filtration efficiency allowed the manufacturer to increase production capacity while maintaining consistent water quality. This upgrade not only improved the reliability of the production line but also reduced the frequency of filter replacements, lowering operational costs and enhancing profitability.
Pharmaceutical Manufacturing: Achieving Purity in Solvent Filtration
A pharmaceutical company in North America faced challenges in maintaining the purity of solvents used in drug formulation. Contaminants in the solvents posed a risk to product quality and compliance with regulatory standards. The company implemented high flow filters with chemically resistant polypropylene media to address this issue. The filters effectively removed particulates and impurities, ensuring the solvents met the required purity levels. Their high contaminant-holding capacity reduced the need for frequent replacements, minimizing downtime and improving production efficiency. By adopting high flow filtration, the company achieved consistent product quality while reducing operational costs and waste.
Paint and Coatings: Improving Consistency in Production
A global paint manufacturer in Asia integrated high flow filters into its production process to address issues with impurities affecting the consistency of its products. Dust, pigments, and agglomerates in the raw materials often led to uneven finishes and customer complaints. High flow filters with a pleated design were installed to remove these contaminants, ensuring a smooth and uniform texture in the final products. The filters’ ability to handle high-viscosity fluids without clogging allowed the manufacturer to maintain a steady production flow. This improvement not only enhanced product quality but also reduced waste and rework, leading to significant cost savings and improved customer satisfaction.
These real-world examples demonstrate the versatility and effectiveness of high flow filters across various industries. By improving efficiency, reducing costs, and ensuring consistent quality, these filters have become an indispensable tool for businesses seeking to optimize their operations.
High flow filters play a vital role in optimizing industrial filtration systems by enhancing efficiency, reducing costs, and ensuring consistent performance across various applications. Investing in high-quality filters not only improves operational reliability but also delivers long-term savings. For the best results, consult filtration experts to identify solutions tailored to your specific needs.
Conclusion
High flow filters play a vital role in optimizing industrial filtration systems by enhancing efficiency, reducing costs, and ensuring consistent performance across various applications. Investing in high-quality filters not only improves operational reliability but also delivers long-term savings. For the best results, consult filtration experts to identify solutions tailored to your specific needs.
