Duplex Filter Housing vs. Single-Filter Systems: Which Is Right for Your Application?

These materials are used in many different industrial applications that require dependability, productivity, and processes that run without delay. If you worked in industries like petrochemicals, food and beverage, or wastewater treatment, then you already know how vital filtration systems are to smooth operations.

Conceptually, single and duplex filter systems might seem to an average observer as not significantly different. However, engineers and plant managers rely on these critical systems for improved performance, minimal downtime, and lower long-term costs.

In this article, I aim to discuss the key differences between duplex and single filter housings, their respective benefits, and where each excels in specific applications.

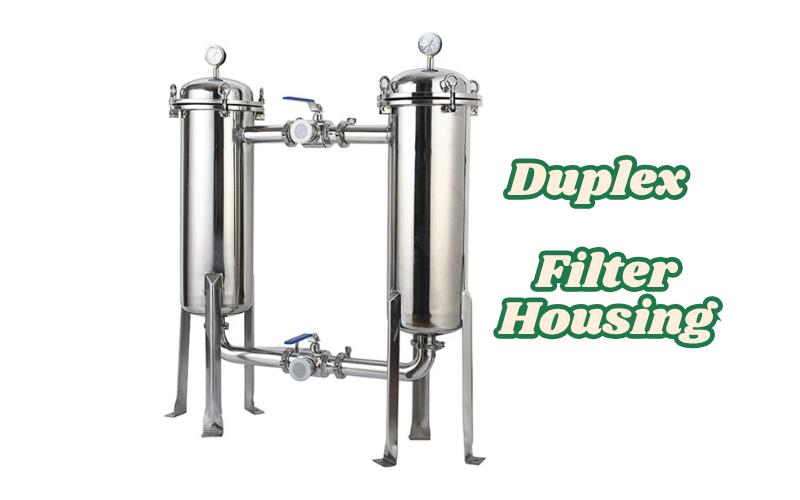

Understanding Duplex Filter Housing

Duplex filter housing is a specialized filtration system designed to ensure uninterrupted operation in industrial and commercial processes. It features a dual-chamber design that allows one chamber to remain active while the other is cleaned or maintained, providing continuous flow and filtration. Equipped with a valve mechanism, the system seamlessly directs the flow of fluids or gases between the two chambers, eliminating the need for downtime during maintenance.

This robust and versatile system is widely used across various industries, including oil and gas, water treatment, and manufacturing, where consistent performance and efficiency are crucial. Its ability to handle a variety of fluids, including liquids and gases, combined with its durable construction, makes it a reliable choice for demanding environments like marine engines, chemical processing plants, and continuous production lines. By enabling uninterrupted operation, duplex filter housings help maintain high-quality standards and optimize productivity in various applications.

Key Features of Duplex Filter Housing

1. Dual-Chamber Design
   The defining feature of a duplex filter housing is its two-chamber configuration. This design allows one chamber to remain operational while the other is cleaned or serviced, ensuring continuous filtration without halting the process.
2. Switching Mechanism
   A key component of the system is its valve or lever mechanism, which facilitates the seamless transition of fluid flow between the two chambers. This feature eliminates the need for manual intervention or system shutdowns during maintenance.
3. Versatility in Fluid Handling
   Duplex filter housings are capable of filtering a wide range of fluids, including water, oil, chemicals, and gases. This versatility makes them suitable for diverse industrial and commercial applications.
4. Durable Construction
   Typically made from materials such as stainless steel or other corrosion-resistant alloys, these systems are designed to withstand harsh operating conditions, including high pressures and extreme temperatures.
5. Ease of Maintenance
   The design of duplex filter housings simplifies the process of cleaning and replacing filters, reducing the time and effort required for maintenance.

Common Applications of Duplex Filter Housing

• Industrial Manufacturing
  In manufacturing plants, duplex filter housings are used to filter lubricants, coolants, and other process fluids. Their ability to operate continuously ensures that production lines run smoothly without interruptions.
• Oil and Gas Industry
  These systems are commonly employed in the oil and gas sector to filter fuels, lubricants, and hydraulic fluids. Their robust design and high efficiency make them ideal for demanding environments.
• Water Treatment Systems
  Duplex filter housings play a crucial role in water purification processes, helping to remove impurities and contaminants from water. Their continuous operation ensures a steady supply of clean water.
• Marine Applications
  In marine systems, these filtration units are used to filter fuel and lubricants for ship engines. Their ability to handle high flow rates and operate under challenging conditions makes them indispensable in this sector.
• HVAC Systems
  Heating, ventilation, and air conditioning systems often rely on duplex filter housings to filter air or fluids, ensuring optimal performance and energy efficiency.

Exploring Single Filter Systems

Single filter systems are standalone filtration units designed to remove impurities and contaminants from fluids or gases, ensuring the desired level of purity and quality. These systems operate with a single chamber, effectively processing the material flow. However, unlike dual-chamber systems, they require the process to be paused during maintenance or filter replacement, making them suitable for applications where periodic downtime is acceptable.

Known for their straightforward design, cost-effectiveness, and adaptability, single-filter systems are widely used across various settings. They are ideal for smaller-scale operations, residential water filtration, and industries where continuous operation is not critical. By offering customizable filtration options and reliable performance, these systems provide a practical solution for maintaining fluid quality in less demanding environments.

Key Features of Single Filter Systems

1. Simple Design
   Single filter systems are characterized by their straightforward and compact design. This simplicity makes them easy to install, operate, and maintain, even in smaller spaces.
2. Cost-Effective Solution
   Compared to more complex filtration systems, single filter units are more affordable, making them an economical choice for businesses and households with limited budgets.
3. Customizable Filtration Options
   These systems can be equipped with various types of filter media, such as mesh, cartridges, or activated carbon, to suit specific filtration needs. This adaptability ensures they can handle a wide range of applications.
4. Ease of Maintenance
   With only one filter to manage, maintenance is straightforward and less time-consuming. However, the system must be taken offline during cleaning or replacement, which is a key consideration for users.
5. Versatility in Applications
   Single filter systems are suitable for filtering liquids, gases, or air, depending on the type of filter media used. This versatility makes them a practical choice for diverse industries and settings.

Common Applications of Single-Filter Systems

• Residential Water Filtration
  Single filter units are widely used in homes to improve water quality by removing sediments, chlorine, and other impurities. They are often installed under sinks or as part of whole-house filtration systems.
• Industrial Processes
  In industrial settings, these systems are used to filter process fluids, including coolants, lubricants, and chemicals. Their compact design makes them suitable for smaller-scale operations.
• Food and Beverage Industry
  Single filter systems play a crucial role in ensuring the purity of water and other liquids used in food and beverage production. They help maintain product quality and safety standards.
• HVAC Systems
  Heating, ventilation, and air conditioning systems often incorporate single filter units to clean air or fluids, ensuring efficient operation and improved air quality.
• Laboratory and Pharmaceutical Use
  In laboratories and pharmaceutical facilities, single filter systems are used to purify water, solvents, or gases, ensuring the accuracy and reliability of experiments and production processes.

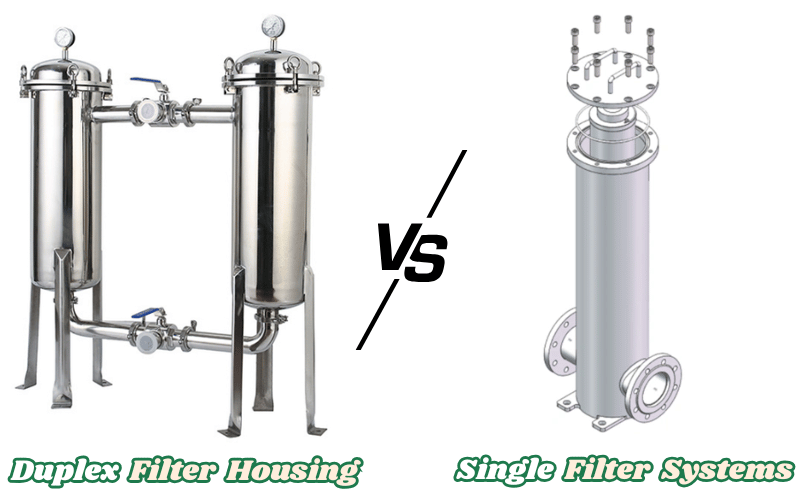

Key Differences Between Duplex and Single Filter Systems

Understanding the distinctions between duplex and single filter systems is essential for selecting the right filtration solution for specific applications. These systems differ in their design, functionality, and suitability for various operational needs. Below, we explore the key areas where these filtration systems diverge, helping you make an informed decision.

Filtration Efficiency

Duplex systems are designed for continuous operation, allowing one filter chamber to remain active while the other is cleaned or replaced. This ensures uninterrupted filtration, making them ideal for processes that demand consistent performance. On the other hand, single filter systems require the entire unit to be taken offline during maintenance, which can temporarily halt filtration. While both systems are effective at removing impurities, duplex setups are better suited for applications where downtime is not an option.

Single filter units, however, can still deliver high filtration efficiency in less demanding environments. They are often equipped with customizable filter media to meet specific requirements, making them a practical choice for smaller-scale operations or residential use.

Maintenance and Downtime

One of the most significant advantages of duplex systems is their ability to minimize downtime. The dual-chamber design enables seamless switching between filters, allowing for maintenance to be performed without interrupting the flow of fluids or gases. This feature is particularly valuable in industries where continuous operation is critical, such as oil and gas or water treatment.

In contrast, single filter systems require the process to be paused during maintenance or filter replacement. While this may not be an issue for smaller-scale or non-critical applications, it can pose challenges in environments where uninterrupted operation is essential. However, the simplicity of single filter units often translates to more straightforward and quicker maintenance procedures.

Cost Considerations

When it comes to cost, single filter systems are generally more affordable than their duplex counterparts. Their straightforward design and lower material requirements make them a cost-effective solution for businesses and households with budget constraints. Additionally, the initial investment and installation costs for single filter units are typically lower.

Duplex systems, while more expensive upfront, offer long-term savings by reducing downtime and maintenance-related disruptions. For industries where operational efficiency and productivity are paramount, the higher initial cost of a duplex system can be justified by its ability to maintain continuous filtration.

Flow Rate and Pressure Management

Duplex filter systems are designed to handle higher flow rates and maintain consistent pressure levels, even during filter maintenance. This makes them suitable for demanding applications that require a steady and reliable flow of fluids or gases. The ability to switch between chambers ensures that the system can adapt to varying operational demands without compromising performance.

Single-filter systems, on the other hand, are better suited for applications with moderate flow rates and pressure requirements. While they may not offer the same level of adaptability as duplex systems, they are still effective in environments where flow interruptions are acceptable and pressure management is less critical.

How to Choose the Right Filter System for Your Needs

Selecting the appropriate filtration system is crucial for ensuring optimal performance and efficiency in any application. With various options available, understanding the factors that influence your decision can help you make an informed choice. Below, we outline the key considerations to help you select the most suitable filtration solution for your specific needs.

Assessing Filtration Requirements

The first step in selecting a filter system is to evaluate your specific filtration needs. Consider the type of fluid or gas that requires filtration, the level of purity needed, and the volume of material to be processed. For instance, industrial applications with high flow rates and stringent purity standards may benefit from duplex systems, which offer continuous operation and high efficiency. On the other hand, smaller-scale or residential applications with moderate flow requirements may find single filter units sufficient.

Additionally, identify the type of contaminants you need to remove, such as sediments, oils, or chemicals. This will help you determine the appropriate filter media and system design to achieve the desired results.

Budget Considerations

Your budget plays a significant role in determining the type of filtration system you can afford. Single filter systems are generally more cost-effective, making them a practical choice for those with limited financial resources. They are also easier to install and maintain, which can further reduce overall expenses.

However, if your application demands continuous operation and minimal downtime, investing in a duplex system may be more economical in the long run. While the initial cost is higher, the ability to maintain uninterrupted filtration can lead to significant savings by minimizing operational disruptions and maintenance-related delays.

Environmental and Operational Factors

The environment in which the filtration system will operate is another critical factor to consider. Harsh conditions, such as high temperatures, corrosive fluids, or extreme pressures, require robust systems made from durable materials like stainless steel or specialized alloys. Duplex systems are often better suited for such demanding environments due to their ability to handle high flow rates and maintain consistent performance.

Operational factors, such as the frequency of maintenance and the availability of skilled personnel, should also be considered. If your team has limited resources for frequent maintenance, a duplex system’s ability to operate continuously without interruptions may be a better fit.

Consulting with Experts

When in doubt, consulting with filtration experts or system manufacturers can provide valuable insights. Professionals can assess your specific requirements, recommend suitable options, and assist you in navigating the technical aspects of filtration systems. They can also provide guidance on installation, maintenance, and optimizing long-term performance.

Engaging with experts ensures that you select a system tailored to your unique needs, reducing the risk of underperformance or costly mistakes. Whether you’re choosing a system for industrial use or residential purposes, expert advice can make a significant difference in achieving the best results.

Future Trends in Filtration Systems

The filtration industry is evolving rapidly, driven by technological advancements and a growing emphasis on sustainability. Both duplex and single filter systems are undergoing significant innovations to meet the demands of modern industries and environmental challenges. Below, we examine the key trends that are shaping the future of filtration systems.

Innovations in Duplex and Single Filter Systems

Technological advancements are enhancing the efficiency and functionality of both duplex and single-filter systems. In duplex systems, automation is becoming a game-changer. Automated valve systems now enable seamless switching between filter chambers without manual intervention, thereby reducing the risk of human error and enhancing operational efficiency. Additionally, advanced materials, such as corrosion-resistant alloys and high-performance polymers, are being used to extend the lifespan of these systems in harsh environments.

Single filter systems are also benefiting from innovations in filter media. Nanotechnology is enabling the development of ultra-fine filtration materials capable of capturing microscopic particles, including bacteria and viruses. These advancements are making single-filter units more effective in applications such as water purification and air filtration. Furthermore, modular designs are being introduced, allowing users to easily upgrade or replace components as needed, enhancing the flexibility and cost-effectiveness of these systems.

Sustainability and Smart Technology Integration

Sustainability is becoming a central focus in the design and operation of filtration systems. Manufacturers are prioritizing energy-efficient designs that reduce power consumption without compromising performance. For example, duplex systems are equipped with energy-saving features, such as low-pressure drop designs, which minimize the energy required to maintain fluid flow. Similarly, single-filter systems are being optimized to use biodegradable or recyclable filter media, thereby reducing their environmental impact.

The integration of innovative technology is another transformative trend. IoT-enabled filtration systems are now capable of real-time monitoring and data collection, providing insights into system performance, filter conditions, and maintenance needs. This technology enables predictive maintenance, reducing downtime and extending the system’s lifespan. Smart sensors can also detect changes in flow rate, pressure, or contamination levels, allowing the users to respond quickly to potential issues.

These advancements are not only improving the efficiency and reliability of filtration systems but also aligning them with global efforts to reduce environmental impact and promote sustainable practices. As industries continue to adopt these innovations, the future of filtration systems looks increasingly promising.

The Bottom Line

There’s no one-size-fits-all answer—the right choice depends on your process demands, budget, and operational priorities.

• Select a single filter system if you require a cost-effective and space-saving solution for non-critical, interruptible processes.
• Opt for a duplex filter system if your application demands 24/7 operation, high reliability, and minimal downtime.

At companies like PRESCAD or Siga Filtration, duplex, and single filters can be customized to your exact specifications, ensuring optimal performance for your unique industrial needs.

Selecting the right filtration system isn’t just about equipment—it’s about maximizing efficiency, safety, and long-term savings in your operations.
