Strainers play a vital role in industrial applications by protecting equipment and ensuring smooth operations. However, many face the challenge of choosing between basket strainers and Y strainers. Understanding their differences is crucial, and this guide sets the stage for a detailed comparison to help you make the right choice.
What Are Strainers and Why Are They Important?
Strainers serve as essential components in industrial pipelines, designed to remove unwanted debris, particles, and solids from flowing liquids or gases. By capturing these contaminants, strainers prevent blockages, reduce wear and tear on equipment, and ensure smooth operations across various industries, including manufacturing, oil and gas, and water treatment. Their ability to safeguard critical systems makes them indispensable in maintaining operational efficiency and minimizing downtime.
Strainers vs. Filters: Understanding the Difference
While strainers and filters both remove impurities, they differ in their design, purpose, and the size of particles they target. Strainers typically use a perforated metal or mesh screen to trap larger debris, such as rust, scale, or sediment, making them ideal for applications where coarse filtration is sufficient. Filters, on the other hand, are designed for finer filtration and often utilize materials such as paper, fabric, or activated carbon to capture smaller particles, including microorganisms and dissolved contaminants.
For example, a strainer might be used in a pipeline to remove large debris that could damage pumps or valves. At the same time, a filter would be employed in a water purification system to ensure the removal of microscopic impurities. Understanding this distinction enables industries to select the most suitable solution tailored to their specific needs.
Benefits of Using Strainers
Strainers offer several advantages that make them a critical component in industrial systems:
- Protecting Equipment: Strainers prevent debris from entering and damaging sensitive equipment, such as pumps, compressors, and heat exchangers. By capturing contaminants before they reach these components, strainers reduce the risk of costly repairs and extend the lifespan of machinery.
- Improving Efficiency: By maintaining clean pipelines and ensuring unobstructed flow, strainers enhance the overall efficiency of industrial processes. This leads to reduced energy consumption and optimized system performance.
- Minimizing Downtime: Strainers help prevent unexpected equipment failures caused by blockages or damage, reducing unplanned downtime and ensuring continuous operations.
- Cost Savings: By protecting equipment and improving efficiency, strainers contribute to significant cost savings over time. They reduce the need for frequent maintenance, repairs, and replacements, making them a cost-effective solution for industrial applications.
Strainers play a vital role in maintaining the integrity and efficiency of industrial pipelines. By understanding their purpose, benefits, and how they differ from filters, industries can make informed decisions to ensure their systems operate smoothly and reliably.
Overview of Basket Strainers
Basket strainers play a crucial role in industrial and commercial systems by efficiently removing debris and protecting equipment from damage. Their unique design and functionality make them a preferred choice for applications requiring high-capacity filtration and easy maintenance.
Design and Functionality of Basket Strainers
Basket strainers feature a cylindrical or rectangular housing that contains a perforated or mesh basket. This basket acts as the primary filtration element, capturing debris and allowing clean liquid or gas to pass through. The design ensures that contaminants remain trapped within the basket, which can be easily removed for cleaning or replacement.
These strainers are typically installed in horizontal pipelines and are available in single or duplex configurations. Duplex basket strainers include two baskets, allowing one to operate while the other is cleaned, ensuring continuous flow without interruptions. The robust construction of basket strainers, often made from materials like stainless steel or cast iron, enables them to handle high-pressure and high-flow applications effectively.
Applications of Basket Strainers
Basket strainers are widely used across industries due to their ability to handle large volumes of fluid and capture significant amounts of debris. Common applications include:
- High-Flow Pipelines: Basket strainers are ideal for systems with high flow rates, such as water distribution networks, oil pipelines, and chemical processing plants.
- Irrigation Systems: In agricultural settings, basket strainers prevent debris like sand, leaves, and twigs from clogging irrigation equipment, ensuring efficient water delivery.
- Food Production: In the food and beverage industry, basket strainers remove solid particles from liquids like syrups, juices, and sauces, maintaining product quality and protecting processing equipment.
- Power Plants: These strainers help remove debris from cooling water systems, preventing damage to turbines and heat exchangers.
Advantages of Basket Strainers
Basket strainers offer several benefits that make them a popular choice for industrial filtration:
- Large Debris Capacity: The spacious basket design allows these strainers to capture and hold significant amounts of debris, reducing the frequency of cleaning and maintenance.
- Easy Maintenance: The removable basket simplifies cleaning and replacement, minimizing downtime and ensuring efficient operation. Duplex configurations further enhance convenience by allowing continuous flow during maintenance.
- Durability: Constructed from robust materials, basket strainers can withstand high pressures, temperatures, and corrosive environments, making them suitable for demanding applications.
- Versatility: With various sizes, materials, and configurations available, basket strainers can be customized to meet the specific needs of different industries.
Disadvantages of Basket Strainers
Despite their advantages, basket strainers have some limitations that should be considered:
- Space Requirements: Basket strainers require more installation space compared to other types of strainers, such as Y strainers, due to their larger housing and horizontal orientation.
- Higher Cost: The initial cost of basket strainers, especially duplex models, tends to be higher than simpler alternatives. However, their durability and efficiency often offset this expense over time.
- Limited for Fine Filtration: While effective for large debris, basket strainers may not be suitable for applications requiring ultra-fine filtration, as their mesh size is typically coarser.
Basket strainers provide a reliable and efficient solution for removing debris in high-flow and high-capacity systems. By understanding their design, applications, and advantages, industries can determine whether basket strainers are the right choice for their specific needs.

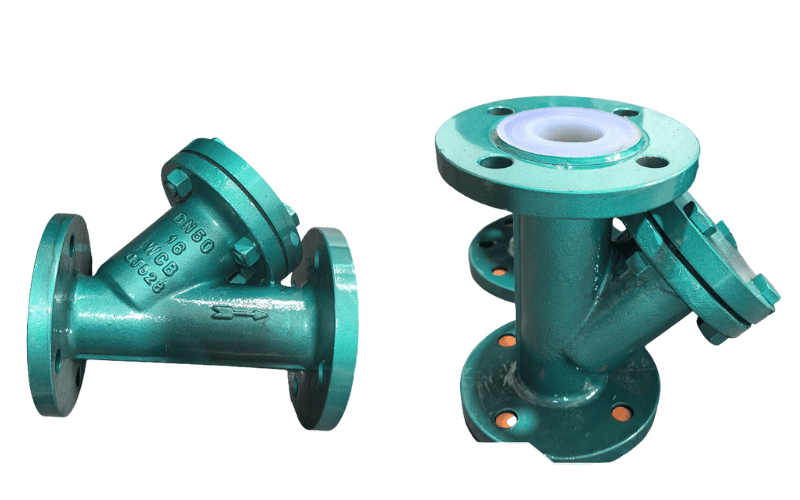

Overview of Y Strainers
Y strainers provide an efficient and compact solution for removing debris from pipelines, ensuring the smooth operation of industrial systems. Their unique design and working principle make them a versatile choice for applications where space is limited or high-pressure conditions exist.
Design and Working Principle of Y Strainers
Y strainers get their name from their Y-shaped design, which features a main pipeline connection and a branch that houses the straining element. The strainer body typically consists of durable materials like cast iron, stainless steel, or bronze, making it suitable for a wide range of applications. Inside the branch, a perforated or mesh screen traps debris while allowing clean fluid or gas to flow through the main pipeline.
The working principle of Y strainers is straightforward. As the fluid enters the strainer, it passes through the mesh or perforated screen, which captures particles and prevents them from continuing downstream. The debris collects in the branch section, which can be accessed for cleaning by removing the cap or plug. This design ensures minimal disruption to the flow while effectively removing contaminants.
Applications of Y Strainers
Y strainers are widely used in industries where compact design and high-pressure tolerance are essential. Their versatility makes them suitable for various applications, including:
- Compact Spaces: Y strainers are ideal for installations with limited space, such as small pipelines or systems with tight layouts. Their compact design allows them to fit into areas where larger strainers, like basket strainers, may not be practical.
- High-Pressure Systems: These strainers perform well in high-pressure environments, such as steam systems, oil refineries, and chemical processing plants. Their robust construction ensures they can handle the stress of high-pressure flows without compromising performance.
- Boiler Systems: In boiler applications, Y strainers remove debris from feedwater, protecting pumps, valves, and other components from damage caused by particulates.
- HVAC Systems: Y strainers help maintain the efficiency of heating, ventilation, and air conditioning systems by preventing debris from clogging equipment like chillers and heat exchangers.
Advantages of Y Strainers
Y strainers offer several benefits that make them a popular choice for industrial and commercial applications:
- Versatility: Their compact design and ability to handle high-pressure conditions make Y strainers suitable for a wide range of systems, from steam pipelines to chemical processing.
- Affordability: Compared to other types of strainers, Y strainers are often more cost-effective, making them an attractive option for budget-conscious projects.
- Ease of Installation: The simple design of Y strainers allows for quick and straightforward installation, even in tight spaces.
- Durability: Constructed from robust materials, Y strainers can withstand harsh conditions, including high temperatures and corrosive environments, ensuring long-term reliability.
Disadvantages of Y Strainers
Despite their advantages, Y strainers have some limitations that should be considered:
- Limited Debris Capacity: The smaller branch section of Y strainers means they can hold less debris compared to basket strainers. This makes them less suitable for applications with high levels of contaminants.
- Manual Cleaning: Cleaning a Y strainer requires manual removal of the cap or plug, which can be time-consuming, especially in systems with frequent debris accumulation. Unlike duplex basket strainers, Y strainers do not allow for continuous operation during maintenance.
- Coarser Filtration: Y strainers are typically designed for coarse filtration and may not be effective for applications requiring the removal of fine particles or microorganisms.
Y strainers provide a compact, cost-effective solution for protecting equipment and maintaining system efficiency. By understanding their design, applications, and limitations, industries can determine whether Y strainers are the right fit for their specific needs.

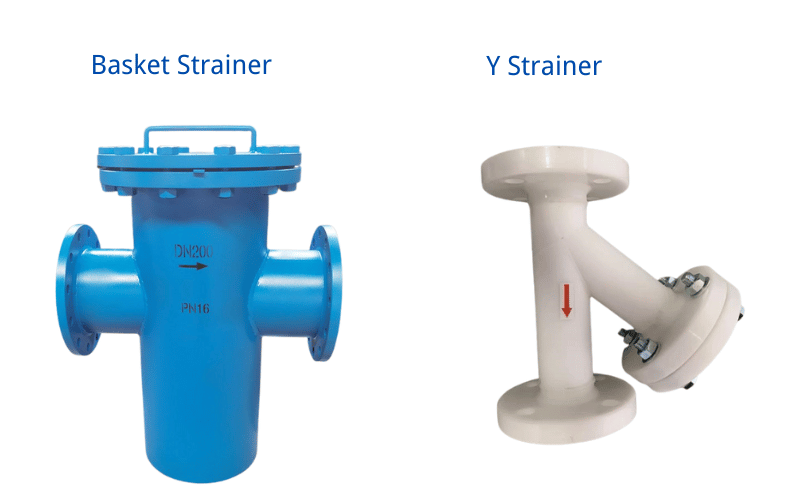

Key Differences Between Basket Strainers and Y Strainers
Basket strainers and Y strainers serve the same fundamental purpose of removing debris from pipelines, but their designs, functionalities, and applications differ significantly. Understanding these differences helps industries choose the most suitable option for their specific needs.
Design and Orientation
Basket strainers feature a cylindrical or rectangular housing with a removable basket that sits horizontally within the pipeline. This design allows them to handle large volumes of debris and makes them ideal for high-flow systems. Their horizontal orientation requires more installation space, which can be a limitation in compact setups.
Y strainers, on the other hand, have a Y-shaped design with a branch that houses the straining element. This compact configuration allows them to fit into tight spaces and makes them suitable for vertical or horizontal installations. While Y strainers are more space-efficient, their smaller debris-holding capacity limits their use in systems with heavy contamination.
Cleaning and Maintenance Requirements
Basket strainers excel in ease of maintenance. Their removable basket design allows for quick cleaning or replacement without disrupting the system. Duplex basket strainers take this a step further by enabling continuous operation during maintenance, as one basket can remain in use while the other is cleaned.
Y strainers require manual cleaning by removing the cap or plug on the branch. This process can be more time-consuming, especially in systems with frequent debris accumulation. Additionally, Y strainers do not offer the option for continuous operation during maintenance, which can lead to temporary downtime.
Particle Retention Capabilities
Basket strainers are designed to capture larger volumes of debris and can accommodate finer filtration needs with customized mesh sizes. This makes them suitable for applications requiring high-capacity filtration or the removal of smaller particles.
Y strainers are typically used for coarser filtration and are less effective at capturing fine particles. Their primary role is to remove larger debris, such as rust, scale, or sediment, to protect downstream equipment. For applications requiring finer filtration, Y strainers may need to be paired with additional filtration systems.
Cost and Space Considerations
Y strainers are generally more affordable than basket strainers, making them a cost-effective choice for budget-conscious projects. Their compact design also requires less installation space, which is advantageous in systems with limited room.
Basket strainers, while more expensive upfront, offer greater durability and efficiency in high-flow systems. However, their larger size and horizontal orientation demand more space, which can be a drawback in compact installations. The higher initial cost of basket strainers is often offset by their long-term benefits, such as reduced maintenance and extended equipment lifespan.
Typical Applications
Basket strainers are commonly used in high-flow pipelines, irrigation systems, and industries like food production and power generation. Their ability to handle large debris volumes and provide finer filtration makes them ideal for applications requiring high-capacity filtration and minimal maintenance.
Y strainers are better suited for compact spaces and high-pressure systems, such as steam pipelines, boiler systems, and HVAC setups. Their affordability and versatility make them a popular choice for protecting equipment in smaller-scale or less demanding applications.
By comparing basket strainers and Y strainers based on design, maintenance, filtration capabilities, cost, and applications, industries can make informed decisions to optimize their systems and ensure efficient operation.
How to Choose the Right Strainer for Your Needs
Selecting the appropriate strainer for your system requires careful consideration of several factors, including pipeline specifications, debris characteristics, maintenance requirements, and budgetary constraints. By evaluating these elements, you can ensure optimal performance, efficiency, and longevity for your equipment.
Pipeline Size and Flow Rate
The size of your pipeline and the flow rate of the fluid play a critical role in determining the right strainer. Basket strainers are better suited for larger pipelines and high-flow systems due to their ability to handle significant volumes of fluid without compromising efficiency. Their horizontal design accommodates high-capacity filtration, making them ideal for industrial applications like water distribution and chemical processing.
Y strainers, with their compact design, work well in smaller pipelines or systems with moderate flow rates. They are particularly effective in applications where space is limited, such as HVAC systems or steam pipelines. However, their smaller debris-holding capacity may not be sufficient for high-flow systems with heavy contamination.
Type and Size of Debris to Be Filtered
The type and size of debris in your system determine the filtration precision required. Basket strainers excel at capturing both large and fine particles, thanks to their customizable mesh sizes. This makes them suitable for applications like food production, where finer filtration is necessary to maintain product quality.
Y strainers are designed for coarser filtration and are effective at removing larger debris, such as rust, scale, or sediment. They are ideal for protecting equipment in systems where fine filtration is not a priority, such as boiler feedwater or irrigation systems. If your application requires the removal of smaller particles, consider pairing a Y strainer with additional filtration stages.
Maintenance Preferences
Your maintenance preferences, including tolerance for downtime, should influence your choice of strainer. Basket strainers offer easy maintenance with their removable baskets, allowing for quick cleaning or replacement. Duplex basket strainers provide the added advantage of continuous operation, as one basket can remain in use while the other is serviced. This feature minimizes downtime and ensures uninterrupted flow, making basket strainers a preferred choice for critical systems.
Y strainers, while compact and cost-effective, require manual cleaning by removing the cap or plug. This process can lead to temporary downtime, which may not be ideal for systems requiring continuous operation. If frequent maintenance is expected, basket strainers may offer a more convenient solution.
Budget and Space Constraints
Budget and available space are key considerations when selecting a strainer. Y strainers are generally more affordable and require less installation space, making them a practical choice for smaller systems or projects with tight budgets. Their compact design allows them to fit into areas where larger strainers may not be feasible.
Basket strainers, while more expensive upfront, provide greater durability and efficiency in high-capacity systems. Their larger size and horizontal orientation demand more space, which can be a limitation in compact installations. However, their long-term benefits, such as reduced maintenance and extended equipment lifespan, often justify the higher initial cost.
Comparison Table for Quick Reference
| Criteria | Basket Strainers | Y Strainers |
|---|---|---|
| Pipeline Size | Suitable for larger pipelines | Ideal for smaller pipelines |
| Flow Rate | Handles high-flow systems | Best for moderate flow rates |
| Debris Capacity | High capacity for large and fine particles | Limited capacity for coarse debris |
| Maintenance | Easy cleaning; duplex models allow continuous operation | Manual cleaning; requires downtime |
| Space Requirements | Requires more installation space | Compact design fits tight spaces |
| Cost | Higher initial cost, long-term savings | More affordable upfront |
| Applications | High-flow pipelines, food production, power plants | HVAC systems, steam pipelines, irrigation systems |
By using this decision-making framework and comparison table, you can evaluate your system’s specific needs and select the strainer that best aligns with your operational requirements, ensuring efficiency and reliability.
Innovative Features and Customization Options
Modern strainers have evolved to include advanced features and customization options that enhance their performance and adaptability across various industries. These innovations not only improve efficiency but also address specific operational challenges, making strainers more versatile and reliable for diverse applications.
Advanced Features in Strainers
Strainers now come equipped with several advanced features designed to optimize their functionality and reduce maintenance efforts. Some of the most notable features include:
- Duplex Configurations: Duplex strainers consist of two straining chambers, allowing one chamber to remain operational while the other is cleaned or serviced. This design ensures continuous flow, making it ideal for critical systems where downtime is not an option. Industries like power generation and chemical processing often rely on duplex strainers to maintain uninterrupted operations.
- Blow-Down Valves: Blow-down valves simplify the cleaning process by allowing operators to flush out accumulated debris without disassembling the strainer. This feature reduces maintenance time and minimizes system downtime, making it particularly useful in applications with frequent debris accumulation, such as irrigation systems or cooling water pipelines.
- Self-Cleaning Mechanisms: Some strainers now include self-cleaning mechanisms that automatically remove debris from the straining element. These systems use rotating brushes, scrapers, or backflushing to maintain optimal performance without manual intervention. Self-cleaning strainers are especially beneficial in industries like wastewater treatment, where debris levels can be high.
- Pressure Differential Indicators: These indicators monitor the pressure drop across the strainer and alert operators when cleaning or maintenance is required. By providing real-time data, pressure differential indicators help prevent system inefficiencies and reduce the risk of equipment damage caused by clogged strainers.
Material Options for Enhanced Durability
The choice of materials plays a crucial role in determining a strainer’s durability and suitability for specific applications. Manufacturers offer a wide range of material options to meet the demands of various industries:
- Stainless Steel: Known for its corrosion resistance and strength, stainless steel is a popular choice for strainers used in chemical processing, food production, and marine environments. Its ability to withstand high temperatures and harsh chemicals ensures long-lasting performance.
- Cast Iron: Cast iron strainers provide excellent durability and are often used in water distribution systems and HVAC applications. While more affordable than stainless steel, cast iron is less resistant to corrosion, making it better suited for non-corrosive environments.
- Bronze: Bronze strainers offer a balance of strength and corrosion resistance, making them ideal for marine and potable water applications. Their non-sparking properties also make them a safe choice for certain industrial settings.
- Plastic and Composite Materials: For lightweight and cost-effective solutions, plastic and composite strainers are available. These materials are commonly used in low-pressure systems or applications where chemical resistance is required, such as in agricultural irrigation.
Customization for Industry-Specific Needs
Customization allows strainers to be tailored to the unique requirements of different industries, enhancing their performance and efficiency. By modifying design elements, materials, or features, manufacturers can create solutions that address specific challenges:
- Food and Beverage Industry: Strainers used in food production often require fine mesh screens to remove small particles and ensure product quality. Customization options like sanitary-grade materials and polished finishes help meet strict hygiene standards.
- Oil and Gas Sector: In the oil and gas industry, strainers must withstand extreme pressures and temperatures. Customizations such as reinforced housings, high-pressure seals, and corrosion-resistant coatings ensure reliable performance in these demanding conditions.
- Pharmaceutical Applications: Strainers used in pharmaceutical manufacturing require ultra-fine filtration and must comply with stringent regulatory standards. Custom designs with precision-engineered screens and FDA-approved materials help maintain product purity and safety.
- Power Generation: Power plants often deal with high-flow systems and abrasive debris. Customizations like larger debris-holding capacities, duplex configurations, and self-cleaning mechanisms ensure efficient operation and reduced maintenance.
By incorporating advanced features and offering extensive customization options, modern strainers provide tailored solutions that meet the specific needs of various industries. These innovations not only improve operational efficiency but also extend the lifespan of equipment, making strainers a valuable investment for any system.
Case Studies or Real-Life Examples
Strainers play a vital role in various industries, ensuring the smooth operation of systems by removing debris and protecting equipment. Real-life examples highlight how choosing the right type of strainer can significantly impact efficiency, reduce maintenance costs, and enhance overall performance. Below are case studies and scenarios showcasing the effective use of basket strainers and Y strainers in different industries.
Basket Strainers in High-Flow Industrial Applications
Case Study: Power Plant Cooling Water System
A thermal power plant faced recurring issues with debris clogging its cooling water system, leading to frequent equipment failures and costly downtime. The plant installed duplex basket strainers to address the problem. These strainers, with their high debris-holding capacity and continuous operation feature, allowed the system to run without interruptions during maintenance.
The result was a significant reduction in downtime, improved efficiency of the cooling system, and extended lifespan of critical components like pumps and heat exchangers. By choosing basket strainers, the plant saved thousands of dollars annually in maintenance and repair costs while ensuring uninterrupted power generation.
Scenario: Food and Beverage Industry
In a juice production facility, maintaining product quality and meeting hygiene standards were top priorities. The facility installed basket strainers with fine mesh screens to remove pulp, seeds, and other solid particles from the juice. The strainers’ easy-to-clean design allowed operators to maintain cleanliness and comply with strict food safety regulations.
This solution not only improved the quality of the final product but also reduced the risk of equipment damage caused by solid debris. The facility experienced fewer production delays and enhanced customer satisfaction by delivering a consistently high-quality product.
Y Strainers in Compact and High-Pressure Systems
Case Study: Steam Pipeline in a Chemical Plant
A chemical processing plant needed a reliable solution to protect its steam pipeline from debris like rust and scale. Space constraints and high-pressure conditions made Y strainers the ideal choice. The plant installed Y strainers with durable stainless steel construction to handle the demanding environment.
The strainers effectively removed debris, preventing damage to steam traps and valves. The compact design fit seamlessly into the plant’s tight layout, and the affordability of Y strainers helped the plant stay within budget. Over time, the plant reported fewer equipment failures and improved operational efficiency, demonstrating the value of selecting the right strainer for the application.
Scenario: HVAC Systems in Commercial Buildings
In a large commercial building, the HVAC system experienced reduced efficiency due to debris clogging the chillers and heat exchangers. The building management team installed Y strainers to filter out sediment and other particles from the water circulating through the system.
The compact design of Y strainers allowed for easy installation in the limited space available within the mechanical room. Regular maintenance ensured the strainers remained effective, leading to improved HVAC performance, lower energy consumption, and reduced maintenance costs. The building’s occupants benefited from a more comfortable indoor environment, while the management team achieved significant operational savings.
Success Stories: The Impact of Choosing the Right Strainer
- Oil and Gas Industry: An offshore oil platform installed duplex basket strainers to protect its seawater injection system from marine debris. The strainers’ high capacity and continuous operation capability ensured uninterrupted production, reducing downtime and increasing profitability.
- Agriculture and Irrigation: A large-scale farm used Y strainers to prevent sand and debris from clogging its irrigation equipment. The cost-effective solution improved water flow, reduced equipment wear, and enhanced crop yields by ensuring consistent irrigation.
- Pharmaceutical Manufacturing: A pharmaceutical company implemented customized basket strainers with ultra-fine mesh to maintain the purity of its liquid products. The strainers helped the company meet stringent regulatory standards, ensuring product safety and quality.
These examples demonstrate how selecting the appropriate strainer can address specific challenges, improve system performance, and deliver measurable benefits across various industries. By understanding the unique requirements of each application, businesses can make informed decisions and achieve long-term success.
FAQs About Basket and Y Strainers
Q: Can Y strainers handle high flow rates?
A: Y strainers can handle moderate to high flow rates, but their capacity is generally lower than that of basket strainers. They are best suited for systems with moderate flow and coarse debris, such as steam pipelines or HVAC systems. For high-flow applications requiring large debris capacity, basket strainers are a better choice.
Q: What’s the best strainer for food-grade applications?
A: Basket strainers are ideal for food-grade applications due to their ability to accommodate fine mesh screens and their easy-to-clean design. They can effectively remove small particles like pulp, seeds, or sediment, ensuring product quality and compliance with food safety standards. Stainless steel basket strainers with sanitary finishes are commonly used in the food and beverage industry.
Q: How often should strainers be cleaned?
A: The cleaning frequency depends on the application, the type of debris, and the system’s operating conditions. In systems with heavy debris accumulation, strainers may need cleaning weekly or even daily. For less demanding applications, monthly or quarterly maintenance may suffice. Regular monitoring of pressure differential indicators can help determine when cleaning is necessary.
Q: Are duplex basket strainers worth the investment?
A: Duplex basket strainers are an excellent investment for systems requiring continuous operation. Their dual-chamber design allows one basket to remain in use while the other is cleaned, minimizing downtime. While they have a higher upfront cost, their ability to maintain uninterrupted flow and reduce maintenance-related disruptions makes them cost-effective in the long run.
Q: Can strainers be customized for specific applications?
A: Yes, strainers can be customized to meet the unique requirements of different industries. Options include selecting materials like stainless steel or bronze, choosing specific mesh sizes for finer filtration, and adding features like blow-down valves or self-cleaning mechanisms. Customization ensures optimal performance and durability for specialized applications.
Q: What are the signs of a clogged strainer?
A: A clogged strainer often causes a noticeable drop in system performance, such as reduced flow rate or increased pressure drop. In severe cases, equipment downstream of the strainer may experience damage or inefficiency. Monitoring pressure differential indicators or conducting regular inspections can help identify and address clogs before they impact operations.
Conclusion
Choosing the right strainer is essential for maintaining system efficiency, protecting equipment, and reducing operational costs. By understanding the differences between basket and Y strainers, including their design, applications, and maintenance requirements, you can make informed decisions tailored to your system’s needs. Take the time to evaluate your specific requirements, such as flow rate, debris type, and budget, and don’t hesitate to consult industry experts for guidance. Making the right choice ensures long-term reliability and optimal performance for your operations.
